Safety devices
During programming, confi gure the type of action that must be performed by the device connected to the input.
Connect the safety devices to the CX and/or CY inputs.
If contacts CX and CY are not used, they must be deactivated during programming.

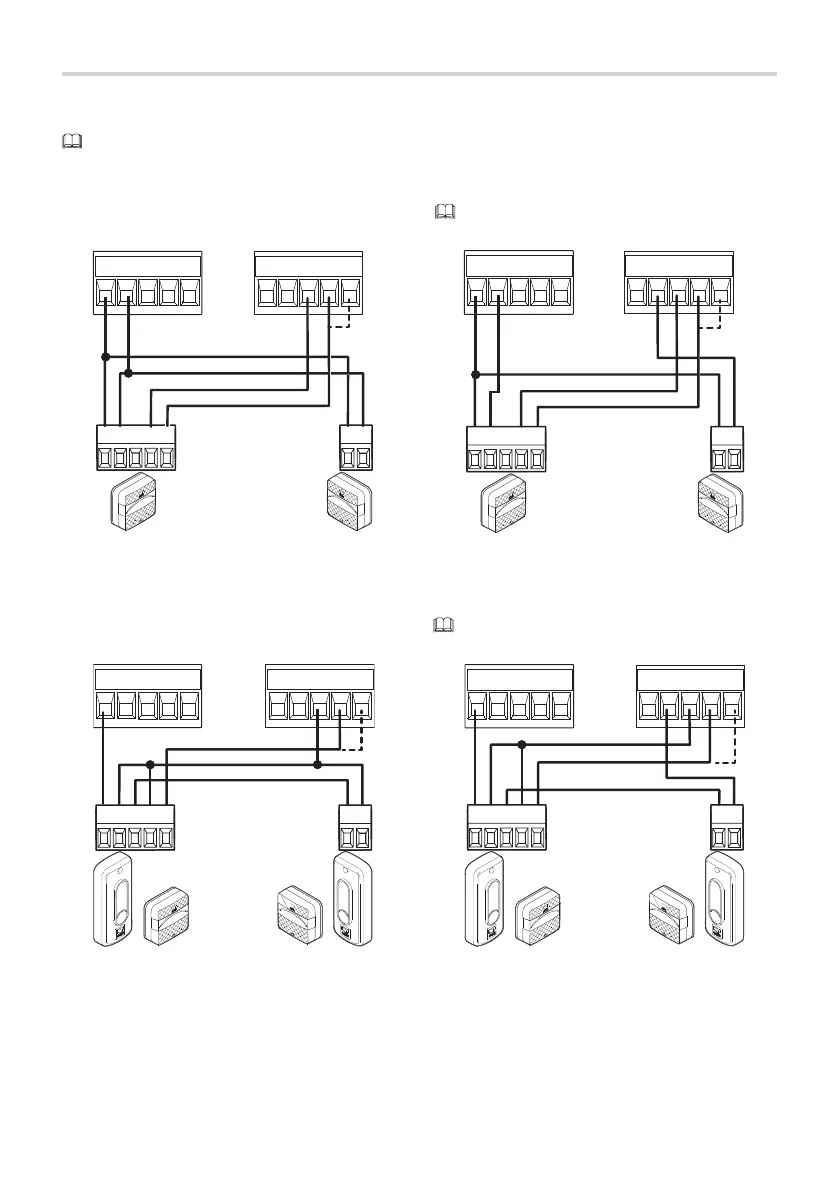

DELTA photocells
Standard connection
DELTA photocells
Connection with safety test
See [Safety devices test] function.
10 TS 2 CX CY 10 11 E E3 5
+
10
-
11 NO C NC
+
10
-
11
RX TX
10 TS 2 CX CY 10 11 E E3 5
+
10
-
11 NO C NC
+
10
-
11
RX TX
DIR / DELTA-S photocells
Standard connection
DIR / DELTA-S photocells
Connection with safety test
See [Safety devices test] function.
10 TS 2 CX CY 10 11 E E3 5
+
10
-
2TXCNC
+
TX
-
2
RX TX
10 TS 2 CX CY 10 11 E E3 5
+
10
-
2TXCNC
+
TX
-
2
RX TX
