Page 23 - Manual FA01554-EN - 01/2021 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions
PROGRAMMING

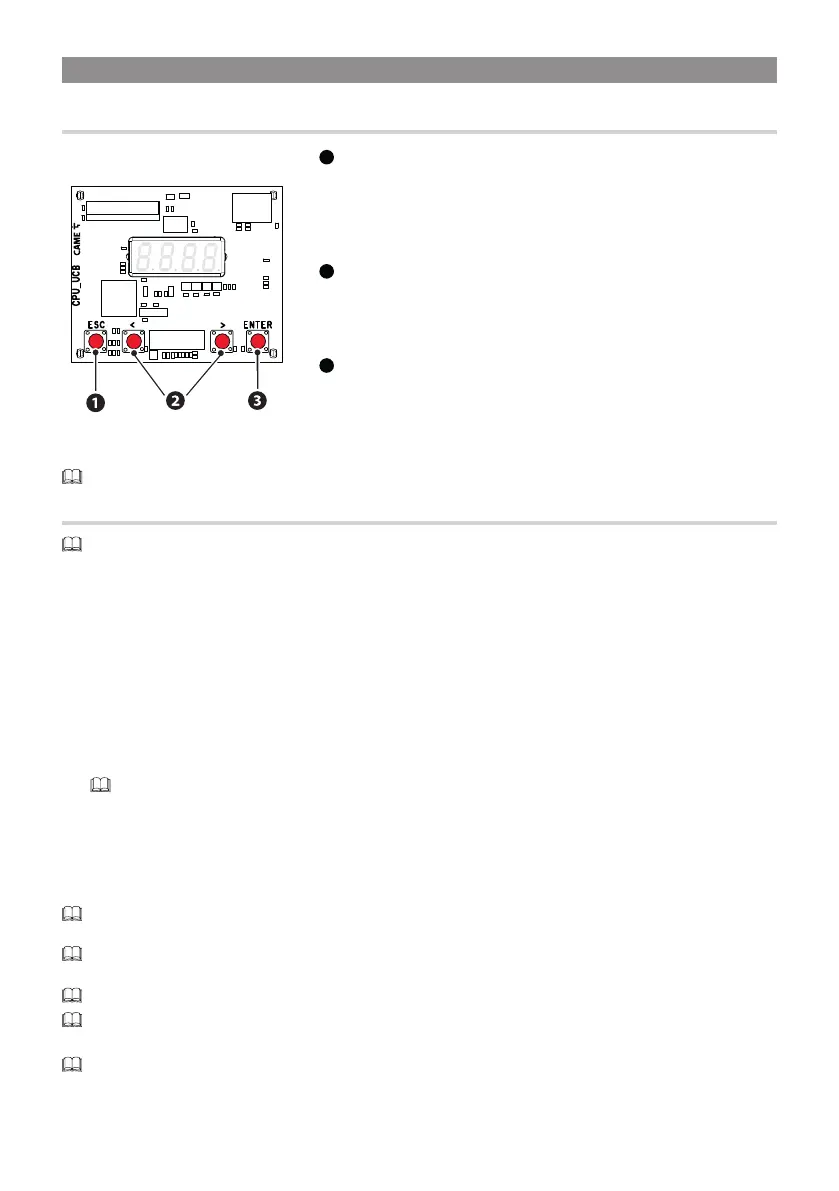

Programming button functions
1
ESC button
The ESC button is used to perform the operations described below.
Exit the menu
Delete the changes
Go back to the previous screen
2
< > buttons
The <> buttons are used to perform the operations described below.
Navigate the menu
Increase or decrease values
3
ENTER button
The ENTER button is used to perform the operations described below.
Access menus
Confi rm choice
Outside the menu, the ESC key stops the gate and the < > keys open and close the gate.
Getting started
Once the electrical connections have been made, proceed with commissioning. Only skilled and qualifi ed sta
may perform this operation.
Make sure that there are no obstacles in the way.
Power up the device and begin programming.
Start programming with the functions indicated below.
A1 Motor type
F46 Number of motors
A2 Motor test
> open the M2 leaf
< open the M1 leaf
Check that both leaves open. If they do not, invert M and N on the relevant terminal.
F2 CX input
F3 CY input
A3 Travel calibration
If “A1” scrolls across the display, this means the type of motor must be set before any other parameters can be
modifi ed.
If “A3” scrolls across the display, calibrate the travel. The panel does not accept motion commands, except for
the motor test (A2).
Complete programming and check the warning and safety devices are working properly.
After powering up the system, the fi rst manoeuvre is always to open the gate Wait for the manoeuvre to be
completed.
Press the ESC button or STOP button immediately in the event of any faults, malfunctions, strange noises or
vibrations, or unexpected behaviour in the system.
