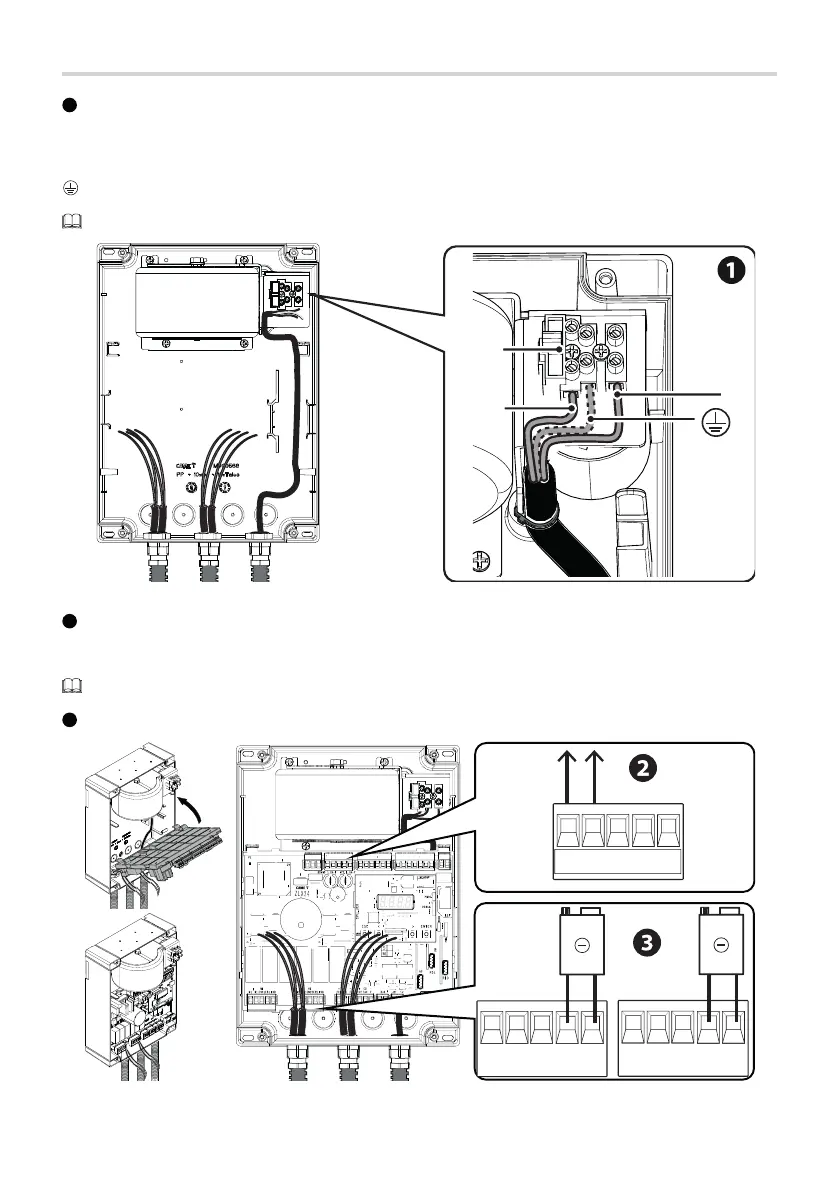

Power supply
1
Connecting to the mains (230/120 V AC - 50/60 Hz)
F - Line fuse
L - Phase
N - Neutral
Earth
The strap used to fi x the cables is not supplied.
N
F
L
2
Power supply output for accessories
The output normally delivers 24 V AC.
The output delivers 24 V DC (10+, 11-) when the batteries start operating, if they are installed.
The sum of the power draw for the connected accessories must not exceed 50 W.
3
Connection to one or two electric locks 12 V AC/DC - max 15 W
10 11 E E3 5
M1 N1 ENC1 EB1+VB
R1
M2 N2 ENC2 EB2+VB
R2
