Canon A1 - Page 22

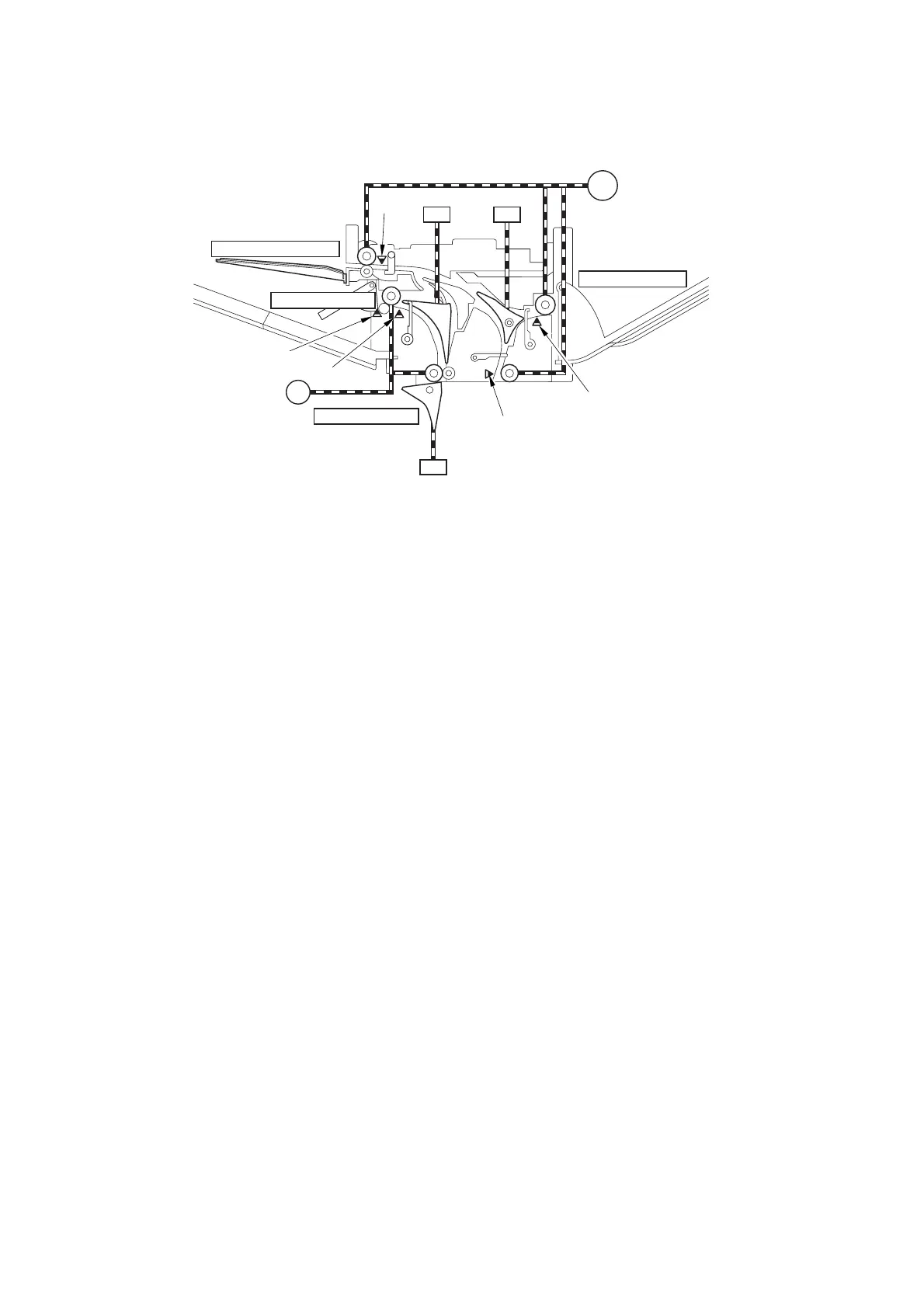

The following is a diagram showing the drive system of the extension delivery kit:
F-2-2
T-2-1
Notation Name
M1 No. 2 delivery motor
M2 No. 3 delivery motor
PS1A No. 2 delivery sensor
PS2A No. 2 delivery tray full sensor
PS3A Duplex inlet sensor
PS4A Reversal sensor
PS5A No. 3 delivery sensor
SL1 No. 1 delivery solenoid
SL2 No. 2 delivery solenoid
SL3 No. 3 delivery solenoid
SL1
SL2
M1
M2
SL3
Reversal guide
No. 2 delivery slot
No. 1 delivery slot
PS3A
PS5A
PS4A
PS2A
PS1A
No. 3 delivery slot
