When tightening the 2 screws used to fix the hinge in
place, be sure to close the right door first.

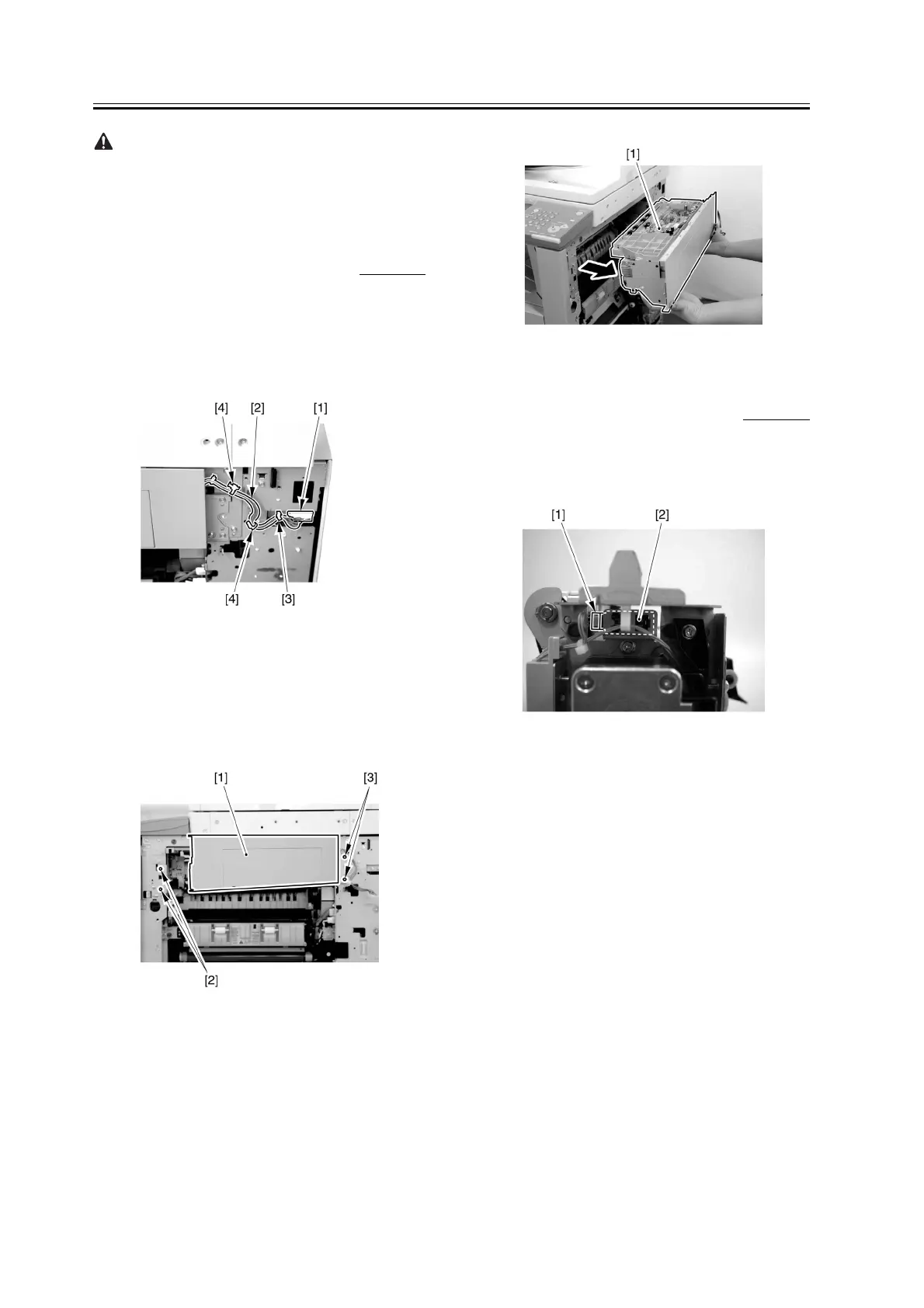

3.4.2.4 Removing the
Extension Delivery Kit
0007-6211
1) Free the harness [2] front the cable clamp [3], and
remove the 2 re-use bands [4].
2) Disconnect the connector [1] from the terminal of
the host machine.
F-3-142
3) Open the extension delivery kit [1].
4) Remove the 2 screws [3].
5) Remove the 2 screws [2], and close the extension
delivery kit.
F-3-143
6) Detach the extension delivery kit [1] from the host
machine.
F-3-144
3.4.2.5 Removing No. 2
Delivery Tray Full Sensor
0007-6212
1) Disconnect the connector [1], and detach the No. 2
delivery tray full sensor [2].
F-3-145
