Canon A1 - Detecting Jams

Chapter 2
2-7
2.3 Detecting Jams
2.3.1 Arrangement of Sensors
0007-6140

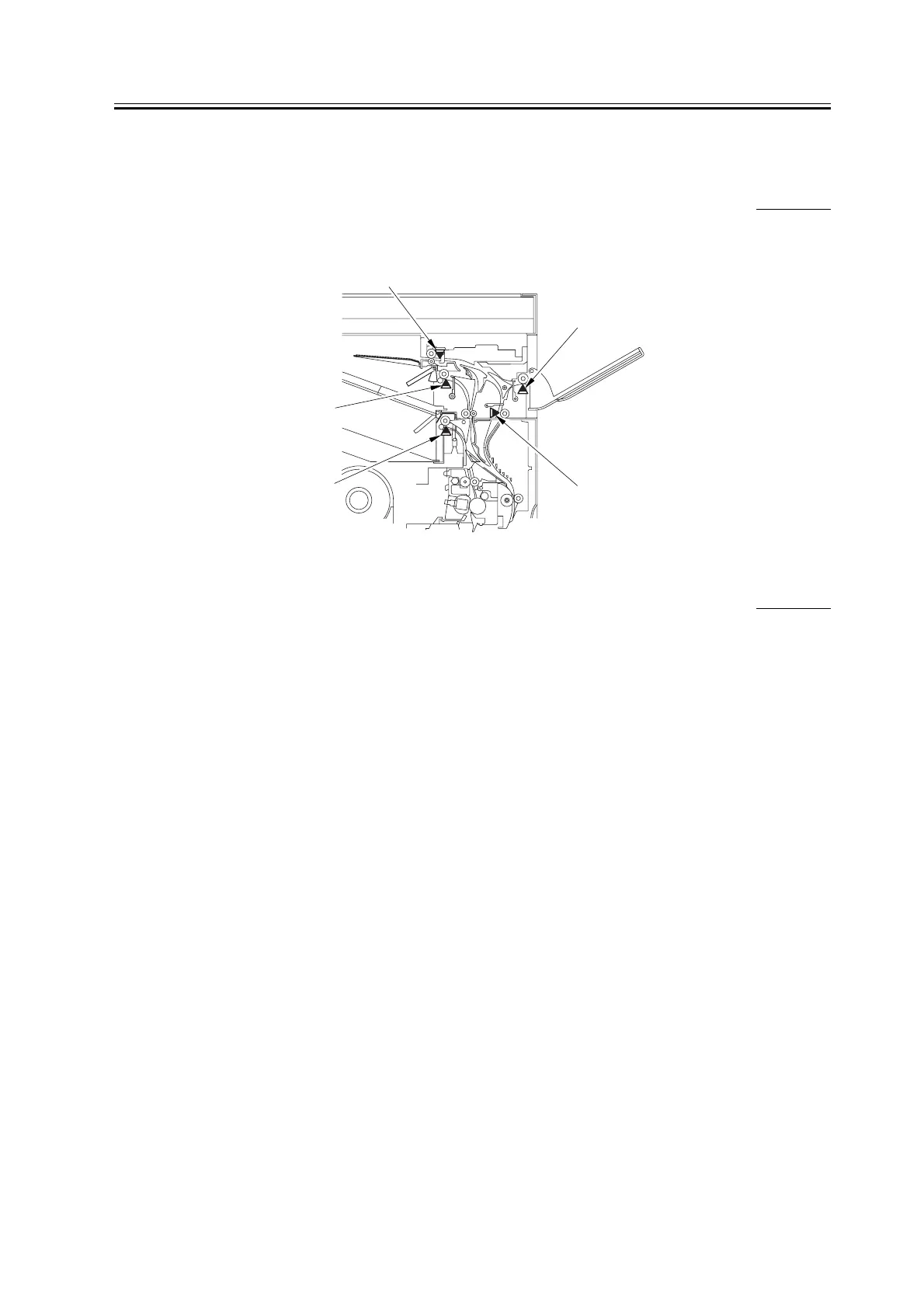

The following shows the sensors used to check for jams in the extension delivery kit:
F-2-12
2.3.2 Delay Jam
0007-6141
The machine will identify a delay jam if any of the foregoing sensors does not go on within a specific period of time.
The following sensors are used to check for jams:
T-2-2
Notation Name
PS14 No. 1 delivery sensor (host machine)
PS1A No. 2 delivery sensor
PS3A Duplex inlet sensor
PS4A Reversal sensor
PS5A No. 3 delivery sensor
PS1A
PS4A
PS5A
PS3A
PS14
