Canon A1 - Removing from the Host Machine

Chapter 3
3-1

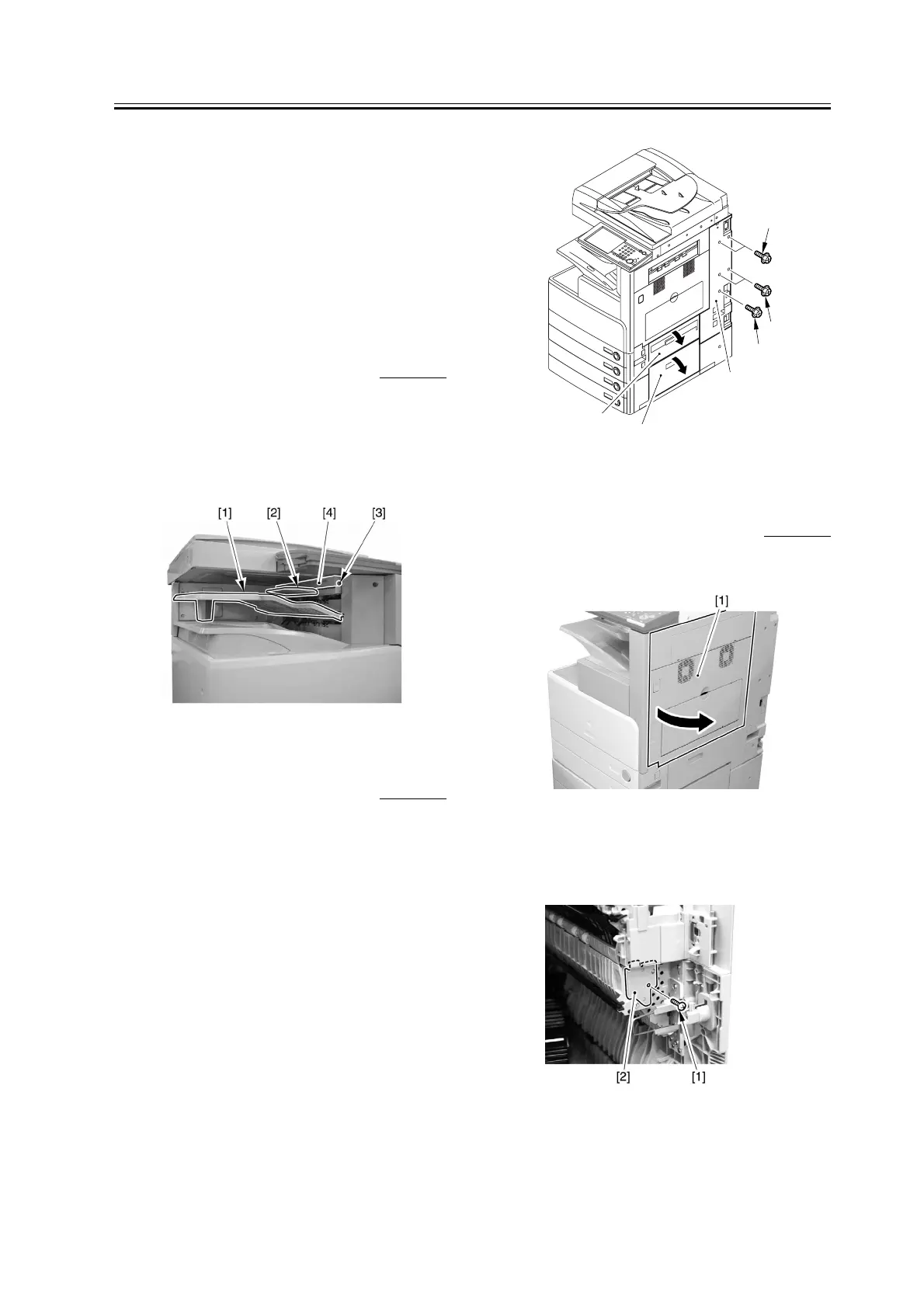

3.1 Removing from the Host
Machine
3.1.1 3 Way Unit
3.1.1.1 Removing the Inside
Delivery Tray, Reversal
Guide, and Inside Upper
Cover
0007-6317
1) Remove the inside delivery tray [1].
2) Remove the reversing guide [2].
3) Remove the screw [3], and detach the inside upper
cover [4].
F-3-1
3.1.1.2 Removing the Right
Cover (rear)
0007-6316
1) Open the pedestal right door [1]. (if equipped with
a 2-Cassette Pedestal-Y2)
2) Open the right lower door [2].
3) Remove the 5 screws [3], and detach the right cover
(rear) [4].
F-3-2
3.1.1.3 Removing the Right
Door
0007-9321
1) Open the right door.
F-3-3
2) Remove the screw [1], and detach the fixing plate
[2].
F-3-4
[1]
[2]
[3]
[3]
[3]
[4]
