Canon A1 - Delivery Solenoid 1

Chapter 3
3-40

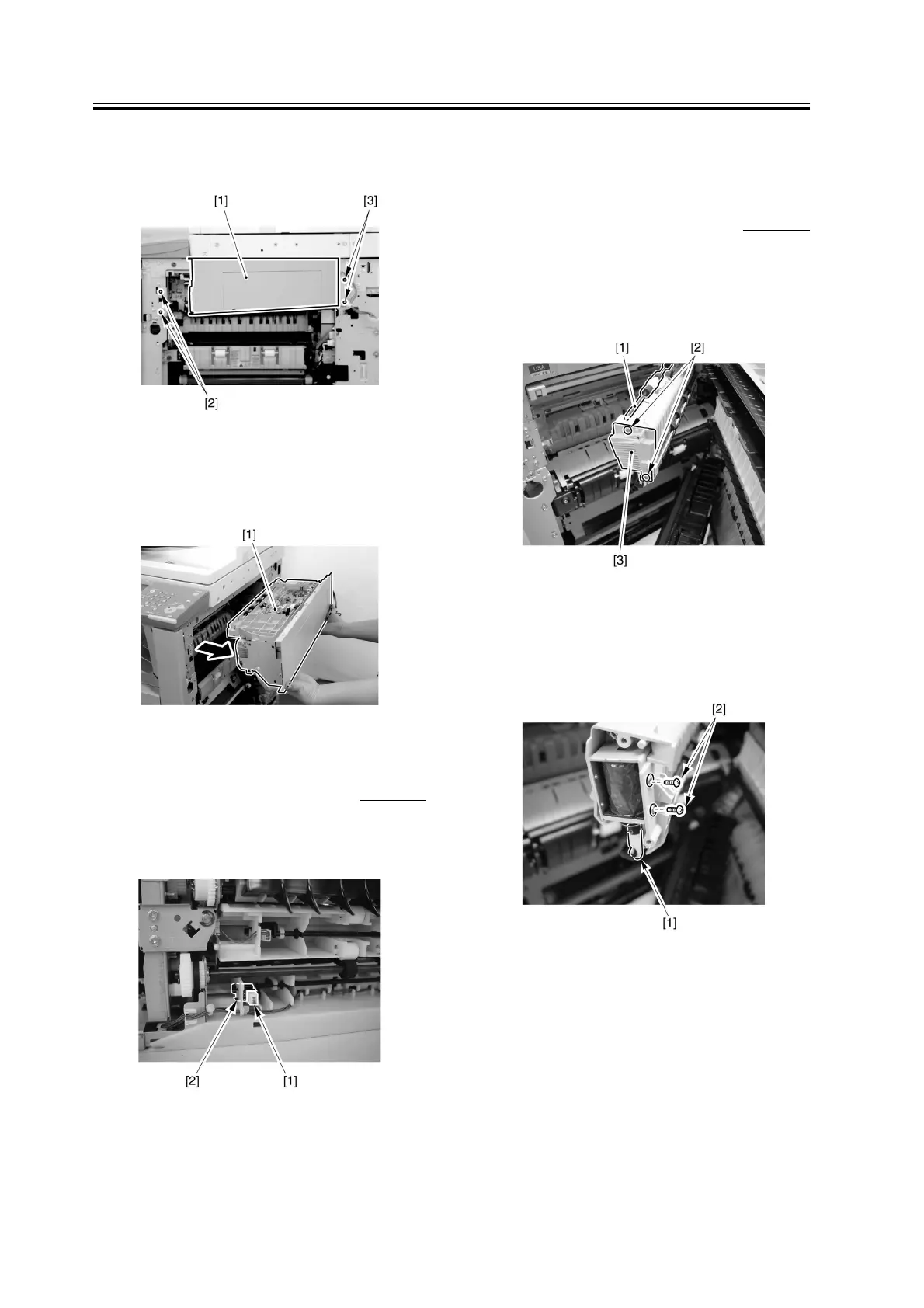

5) Remove the 2 screws [2], and close the extension
delivery kit.
F-3-179
6) Detach the extension delivery kit [1] from the host
machine.
F-3-180
3.4.5.5 Removing the No. 3
Delivery Sensor
0007-6232
1) Disconnect the connector [1], and detach the No. 3
delivery sensor [2].
F-3-181
3.4.6 Delivery Solenoid 1
3.4.6.1 Removing the No. 1
Delivery Solenoid
0007-6233
1) Open the right door, and open the No. 2 delivery
assembly [1]; then, remove the 2 screws [2], and
detach the cover [3].
F-3-182
2) Remove the solenoid lever [1], and remove the 2
screws [2].
F-3-183
