3.4.3 Reversal Sensor
3.4.3.1 Removing the Inside
Delivery Tray, Reversal
Guide, and Inside Upper
Cover
0007-6217
1) Remove the inside delivery tray [1].
2) Remove the reversing guide [2].
3) Remove the screw [3], and detach the inside upper
cover [4].

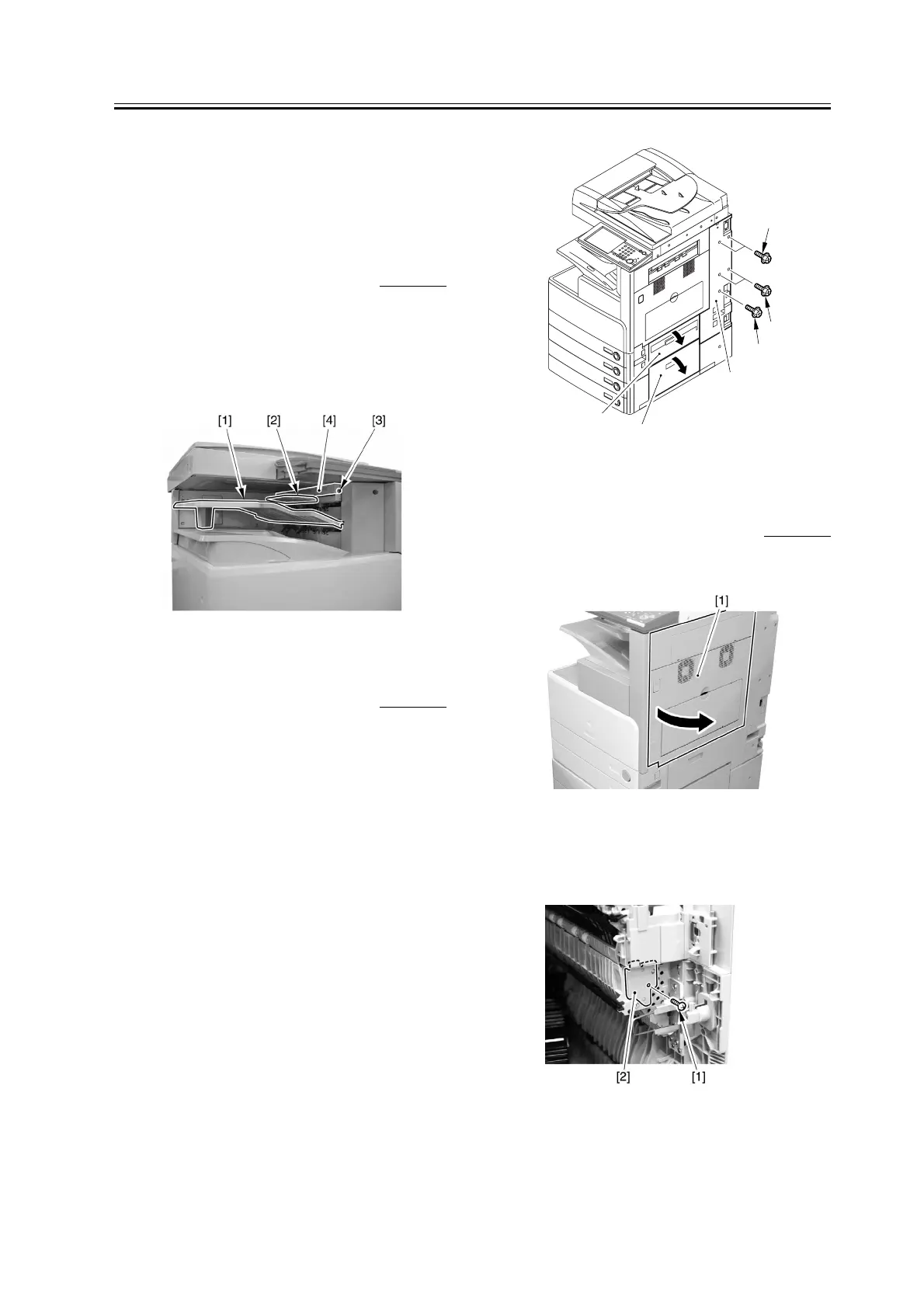

F-3-146
3.4.3.2 Removing the Right
Cover (rear)
0007-6218
1) Open the pedestal right door [1]. (if equipped with
a 2-Cassette Pedestal-Y2)
2) Open the right lower door [2].
3) Remove the 5 screws [3], and detach the right cover
(rear) [4].
F-3-147
3.4.3.3 Removing the Right
Door
0007-9331
1) Open the right door.
F-3-148
2) Remove the screw [1], and detach the fixing plate
[2].
F-3-149
