Canon A1 - Delivery Motor 3; Removing the Inside Delivery Tray, Reversal Guide, and Inside Upper Cover

Chapter 3
3-6

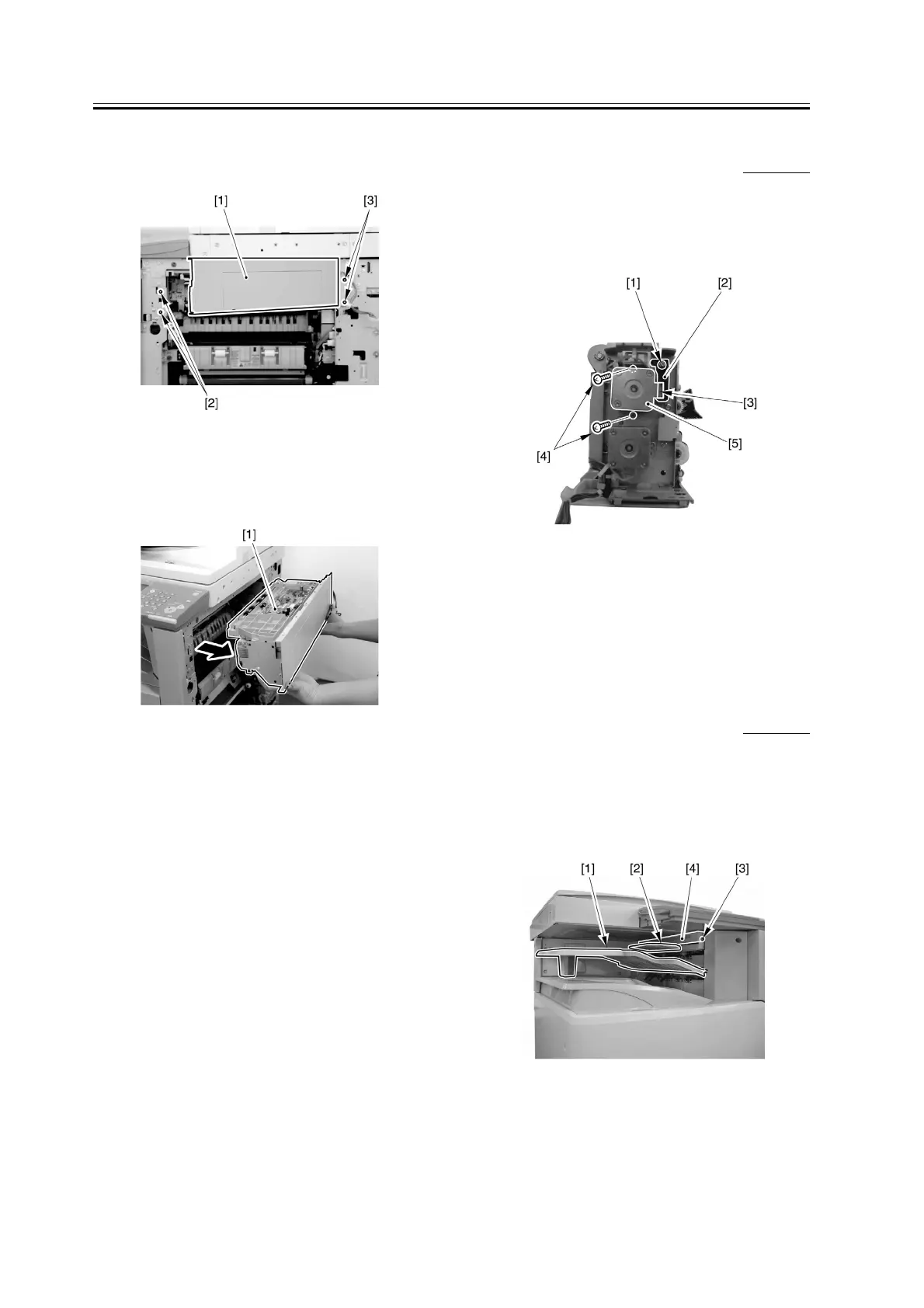

5) Remove the 2 screws [2], and close the extension
delivery kit.
F-3-21
6) Detach the extension delivery kit [1] from the host
machine.
F-3-22
3.2.1.5 Removing the No. 2
Delivery Motor
0007-6154
1) Remove the screw [1], and detach the cover [2].
2) Disconnect the connector [3], and remove the 2
screws [4]; then, detach the No. 2 delivery motor [5].
F-3-23
3.2.2 Delivery Motor 3
3.2.2.1 Removing the Inside
Delivery Tray, Reversal
Guide, and Inside Upper
Cover
0007-6158
1) Remove the inside delivery tray [1].
2) Remove the reversing guide [2].
3) Remove the screw [3], and detach the inside upper
cover [4].
F-3-24
