2.2 Basic Operation
2.2.1 Delivery to the No. 1 Delivery Slot
0007-6136

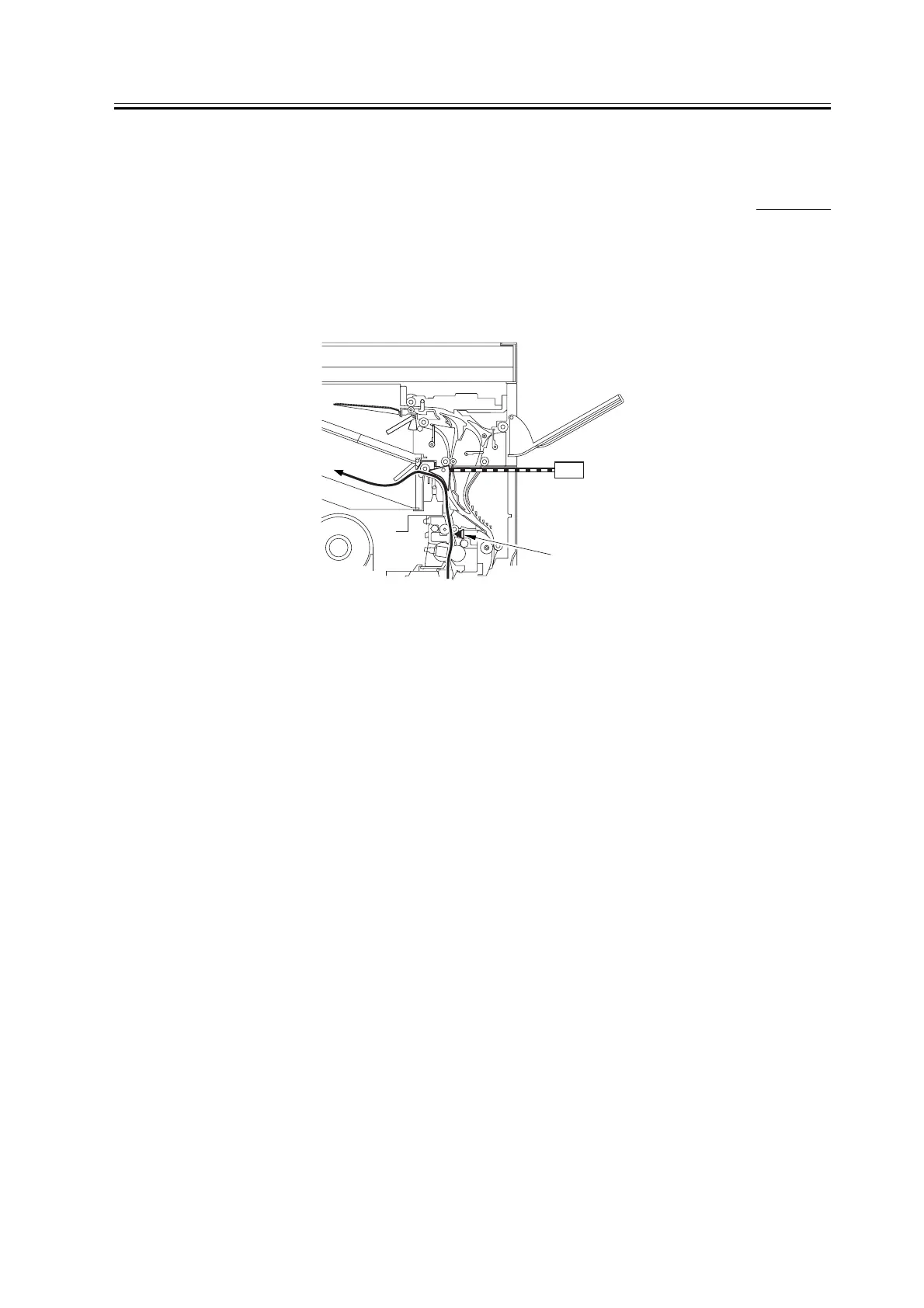

The following shows the sequence of operation used to discharge paper to the No. 1 delivery slot:
1) Paper arrives from the delivery slot of the host machine. A specific period of time after the leading edge of the
paper reaches the fixing outlet sensor (PS13), the No. 1 delivery solenoid (SL1) goes on to help move the paper
to the No. 1 delivery tray.
F-2-3
F-2-4
SL1
PS13
