Chapter 4
4-2

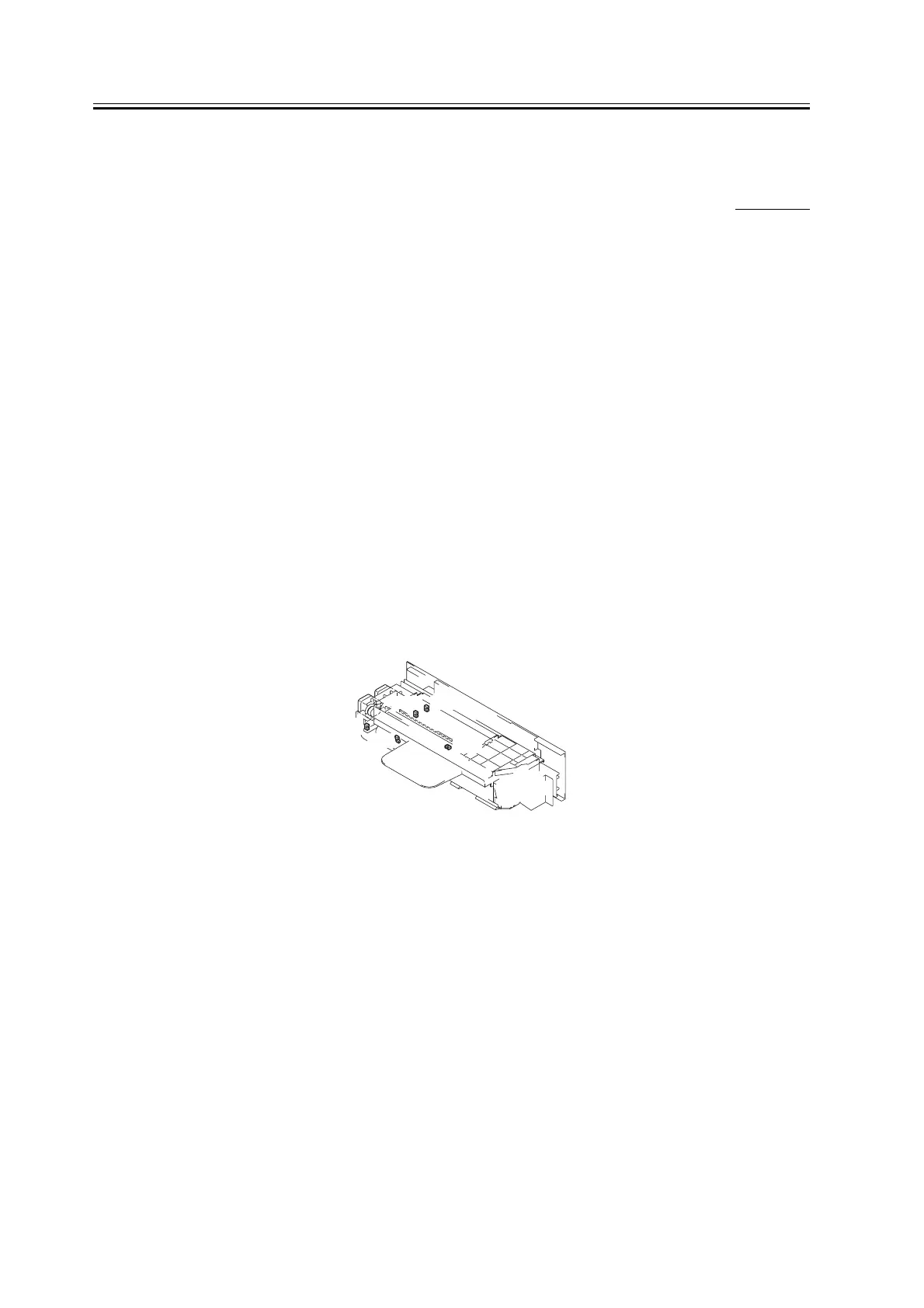

4.2 Outline of Electrical Components
4.2.1 Electrical Components
0008-0296
T-4-1
F-4-1
Notation Name Description Parts No.
Extension
controller
PCB
Jam
code
PS1A No. 2 delay sensor
detects paper in the No. 2
delivery path
FH7-7312 J744 xx09
PS2A
No. 2 delivery tray full
sensor
detects the state (full) of
the No. 2 delivery tray
FH7-7312 J743
PS3A Duplex inlet sensor
detects paper at the inlet to
the duplex unit
FH7-7312 J742 xx0C
PS4A Reversal sensor
detects paper at the print of
reversal
FH7-7312 J745 xx0A
PS5A No. 3 delivery sensor
detects paper in the No. 3
delivery path
FH7-7312 J742 xx0B
PS4A
PS5A
PS3A
PS1A
PS2A
