Chapter 3
3-9
3.2.2.5 Removing the No. 3
Delivery Motor
0007-6160

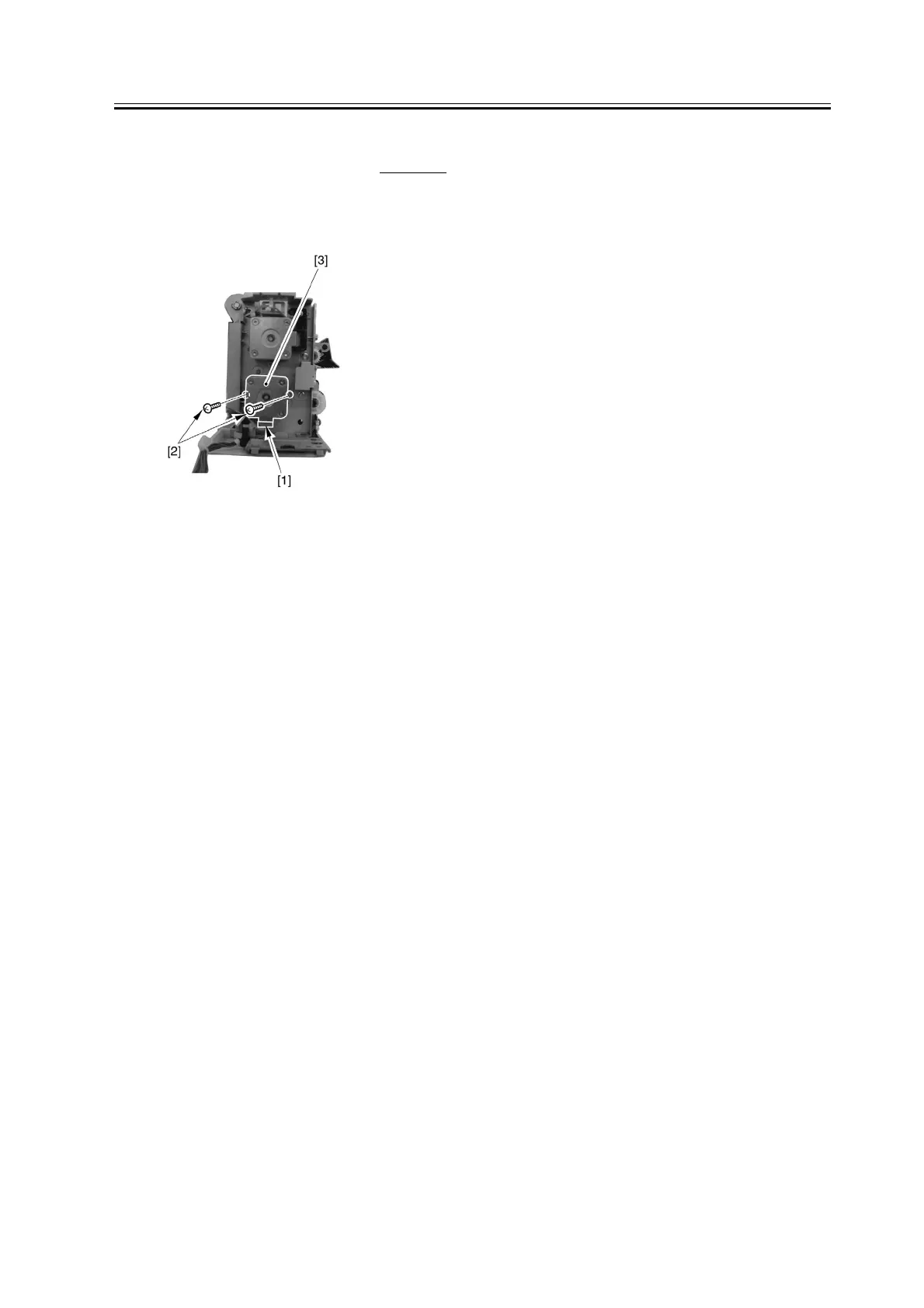

1) Disconnect the connector [1], and remove the 2
screws [2]; then, detach the No. 3 delivery motor [3].
F-3-35
