Chapter 3
3-12

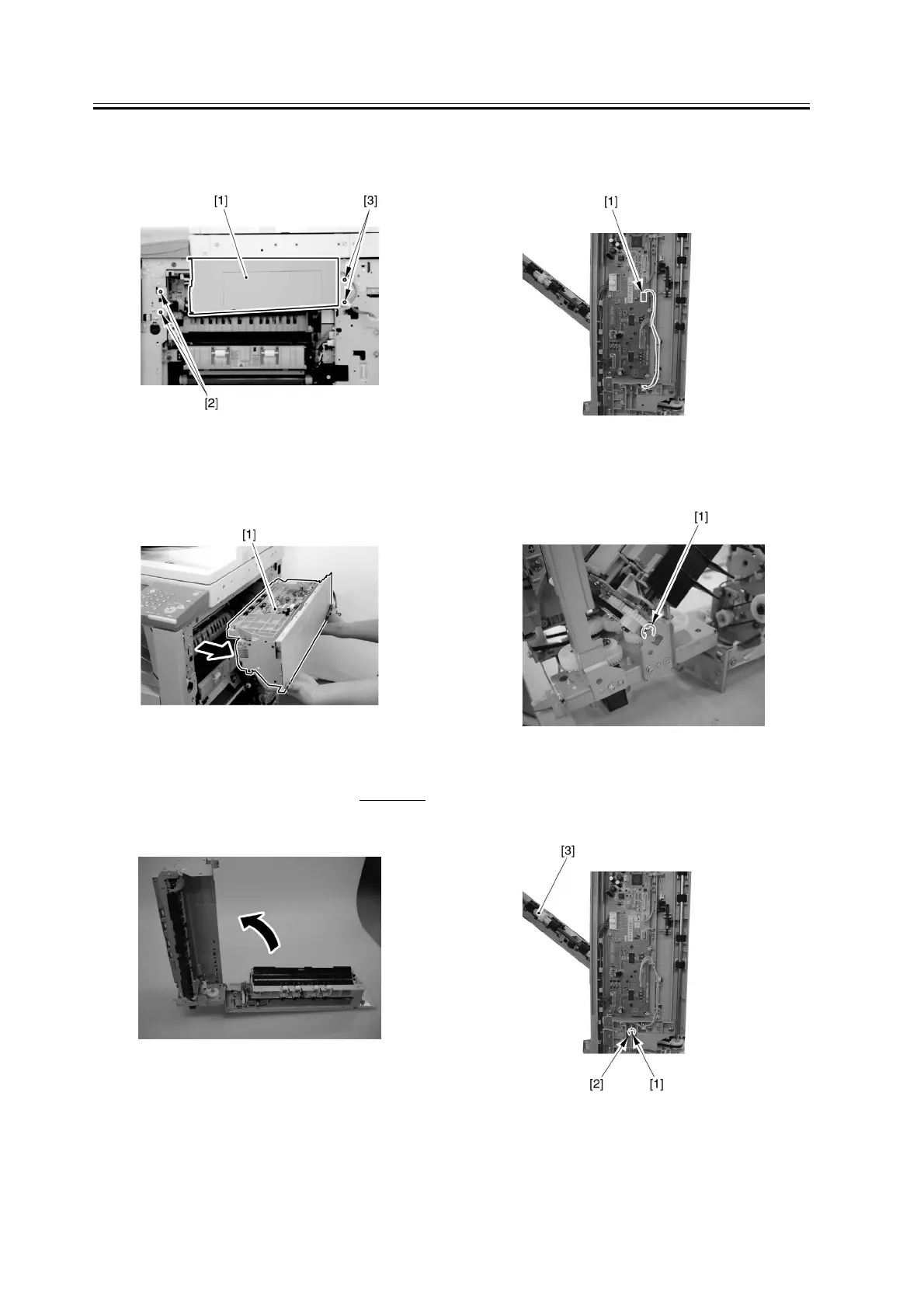

5) Remove the 2 screws [2], and close the extension
delivery kit.
F-3-45
6) Detach the extension delivery kit [1] from the host
machine.
F-3-46
3.3.1.5 Removing the No. 2
Delivery Roller
0007-6164
1) Open the extension delivery kit.
F-3-47
2) Disconnect the connector [1], and free the harness
from the cable guide.
F-3-48
3) Remove the E-ring [1].
F-3-49
4) Remove the E-ring [1], and pull out the joint pin
[2]; then, detach the No. 2 delivery unit [3].
F-3-50
