Canon EOS EOS 300D - Mounting and Detaching a Lens

23

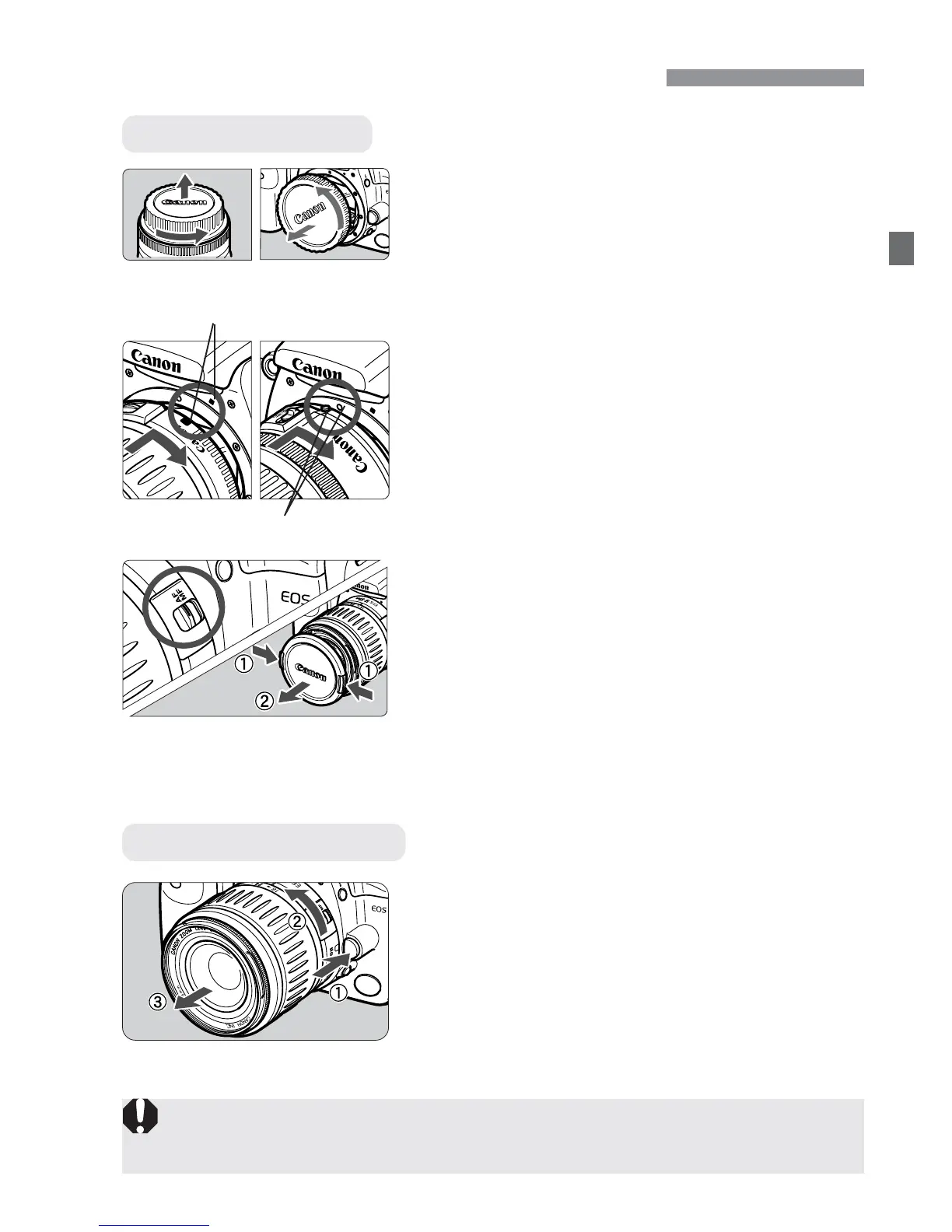

Remove the caps.
•
Remove the rear lens cap and the
body cap by turning them as shown by
the arrow.
1
Attach the lens.
•
Align the EF-S lens with the camera’s
white EF-S lens mount index and turn
the lens as shown by the arrow until it
clicks in place.
•
When attaching a lens other than an
EF-S lens, align the lens with the red
EF lens index mark.
2
While pressing the lens release
button, turn the lens as shown by
the arrow.
•
Turn the lens until it stops, then detach
it.
Mounting a Lens
Detaching the Lens
Mounting and Detaching a Lens
The EF-S lens is dedicated to this camera. It cannot be attached to
other EOS cameras.
EF Lens mount index
EF-S Lens mount index
On the lens, set the focus mode
switch to <AF>.
•
If the focus mode switch is set to
<MF>, autofocus will not operate.
3
Remove the front lens cap.
4
