Note
• For details on supported sizes and types of rolls, see Paper Sizes or the Paper Reference Guide. (See "Paper
Sizes.") ➔P.326 (See "Displaying the Paper Reference Guide.") ➔ P.330
• To view instructions as you attach the Roll Holder, press the Navigate button. (See "How to View Instructions With
Navigate.") ➔P.434
1

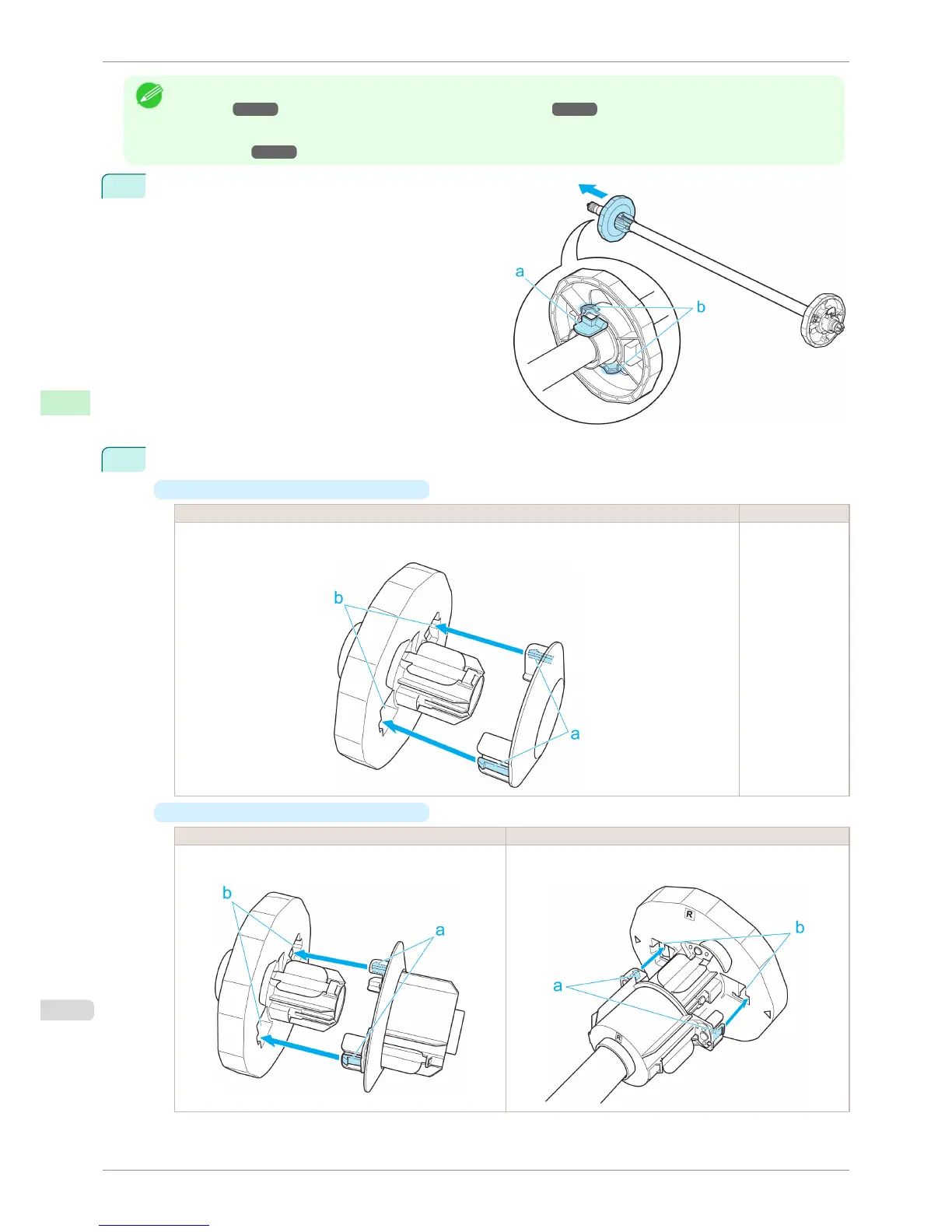

Lift the Holder Stopper lever (a) from the shaft side to
unlock it. Holding the Holder Stopper at the position
indicated (b), remove it from the Roll Holder.
2
Insert the respective attachments for the roll paper core on the Roll Holder and Holder Stopper.
•
Using rolls with a 2-inch paper core
Holder Stopper Side Roll Holder Side
Align the tips (a) of the 2-Inch Paper Core Attachment with the holes (b) of the Holder Stopper and
insert it firmly.
No attachment is
needed.
•
Using rolls with a 3-inch paper core
Holder Stopper Side Roll Holder Side
Align the tips (a) of 3-Inch Paper Core Attachment #2 with
the holes (b) of the Holder Stopper and insert it firmly.
Align the tips (a) of 3-Inch Paper Core Attachment #1 with
the holes (b) of the Roll Holder and insert it firmly.
Loading Rolls on the Roll Holder
iPF8400SE
User's Guide
Handling and Use of Paper Handling rolls
338
