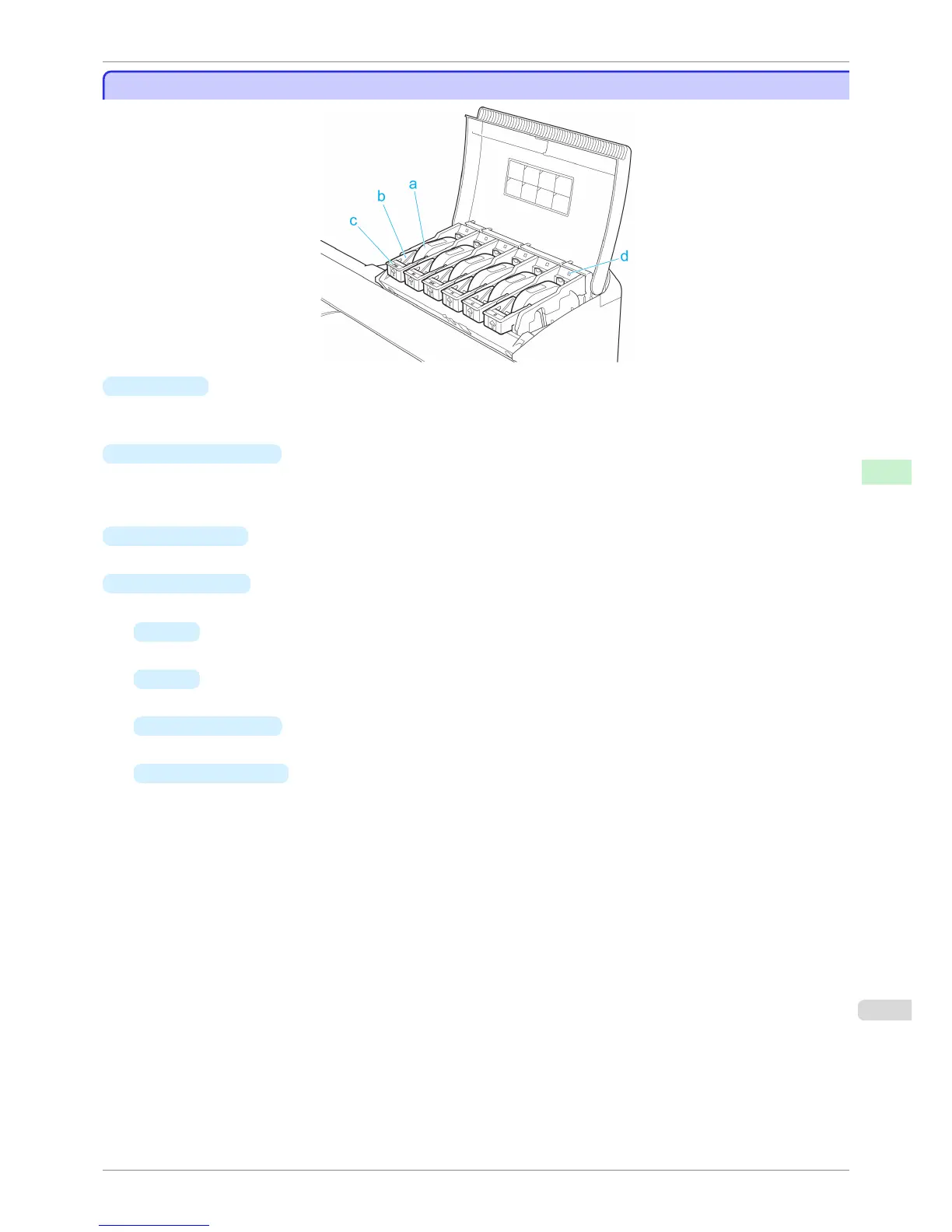

Ink Tank Cover (Inside)
Ink Tank Cover (Inside)
a
Ink tanks
Cartridges of ink in various colors.
The figure shows the printer as loaded with 700 ml (23.7 fl oz) Ink Tank.
b
Ink Tank Lock Lever
A lever that locks the Ink Tank in place and protects it. Lift and lower the lever when replacing an Ink Tank. To
open it, lift the stopper of the lever until it stops, and then push it down toward the front. To close it, push it
down until it clicks into place.
c
Ink Color Label
Load an Ink Tank that matches the color and name on this label.
d
Ink Lamp (Red)
Indicates the state of the Ink Tank as follows when the Ink Tank Cover is opened.
•
On
The Ink Tank is installed correctly.
•
Off
No Ink Tank is installed, or the ink level detection function is disabled.
•
Flashing Slowly
Not much ink is left.
•
Flashing Rapidly
Ink tank is empty.
iPF8400SE
Ink Tank Cover (Inside)
User's Guide
Printer Parts Printer parts
467
To Next Page
