LASER CLASS 730i/720i/710 2.PARTS LAYOUT & PARTS LIST

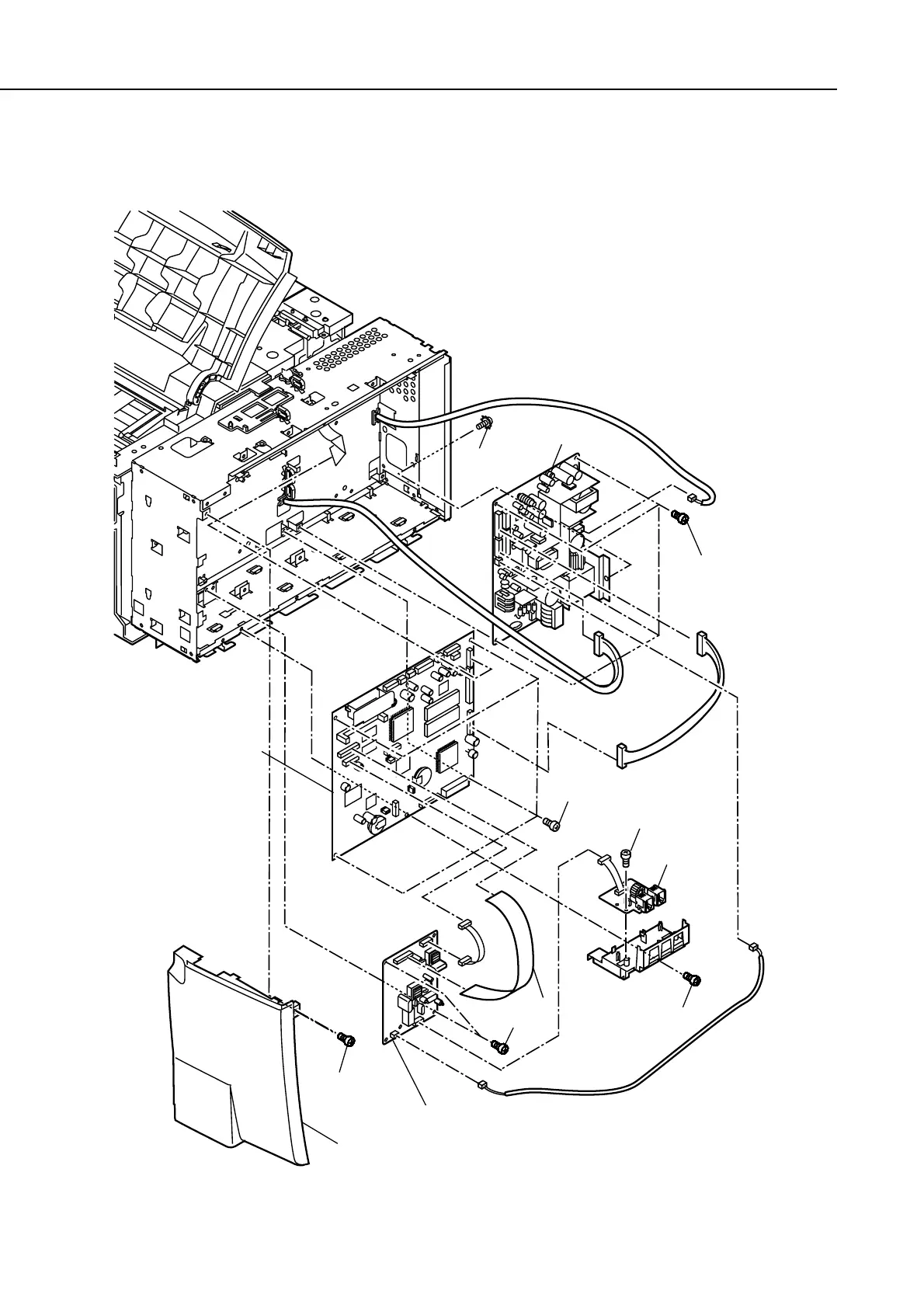

FIGURE 8 LASER CLASS 710 CIRCUIT BOARDS
8
6
7
3
7
9
4
10
7
5
10
1
2
See FIGURE 32
for disassembly
See FIGURE 33
for disassembly
