LASER CLASS 730i/720i/710 Chapter 3: Assembly and Disassembly
3-7
(6) Pull out the shaft, and pull the gear (found at the front) upward to detach.

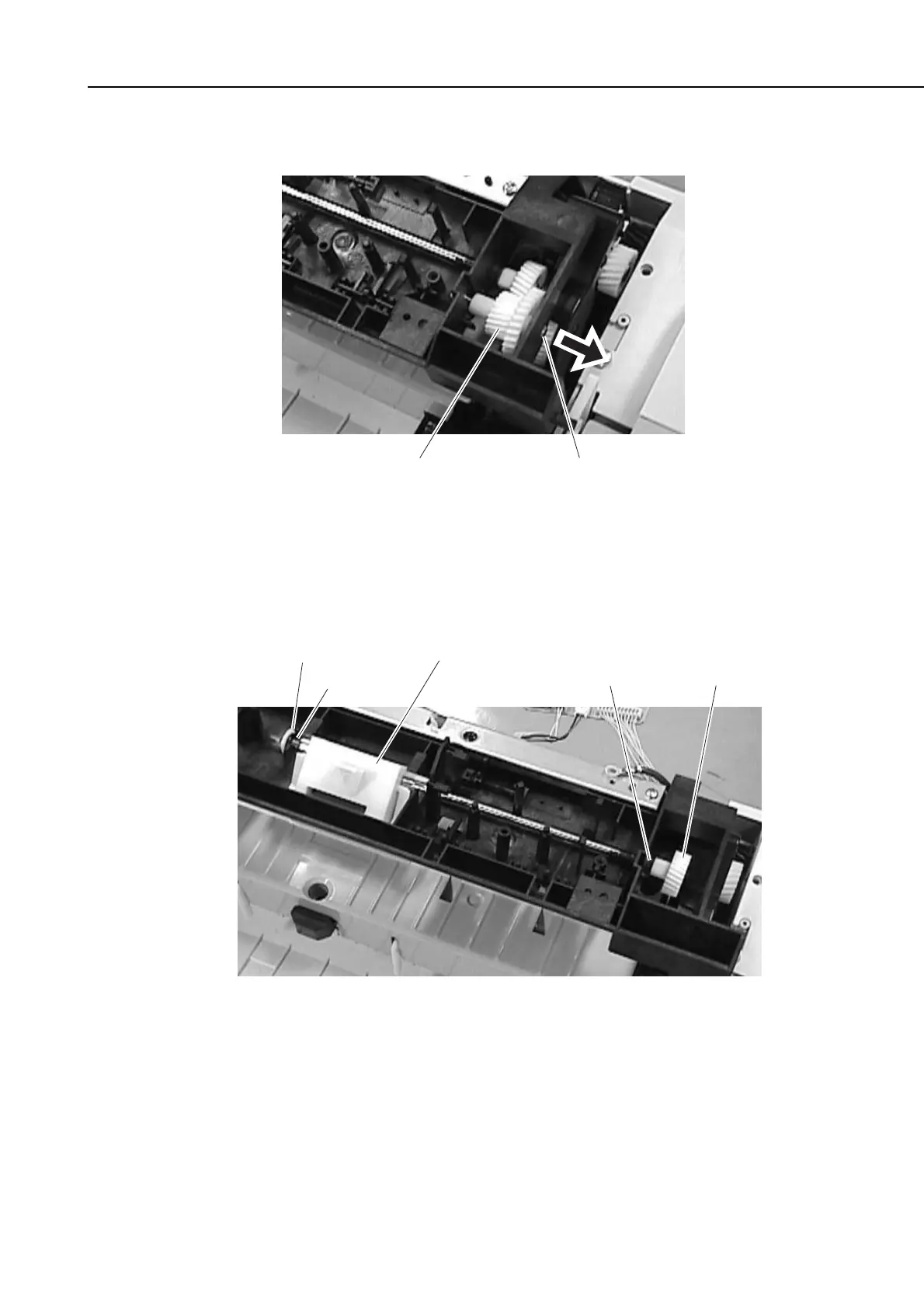

Figure 3-6 Document Separation Roller (Upper) 3
(7) Detach the left retaining ring.
(8) While detaching the claw, detach the right gear.
(9) Detach the bushings from both sides; then, detach the separation roller ass’y (upper).
Figure 3-7 Document Separation Roller (Upper) 4
Retaining ring
Bushing Bushing Gear
Separation roller ass'y (upper)
To Next Page
