Canon LASER CLASS 710 - 2.1.3 Paper pick-up roller and separation pad (Multi-purpose)

LASER CLASS 730i/720i/710 Chapter 3: Assembly and Disassembly
3-8
2.1.3 Paper pick-up roller and separation pad (Multi-purpose)
(1) Remove the 2 screws (a), and detach the right cover.
(2) Remove the 7 screws (b), and detach the shield plate. (LASER CLASS 730i/720i are
the 8 screws (b))
(3) Remove the 2 screws (c), and detach the upper left cover.
(4) Remove the 2 screws (d); then while freeing the claw, detach the left cover.

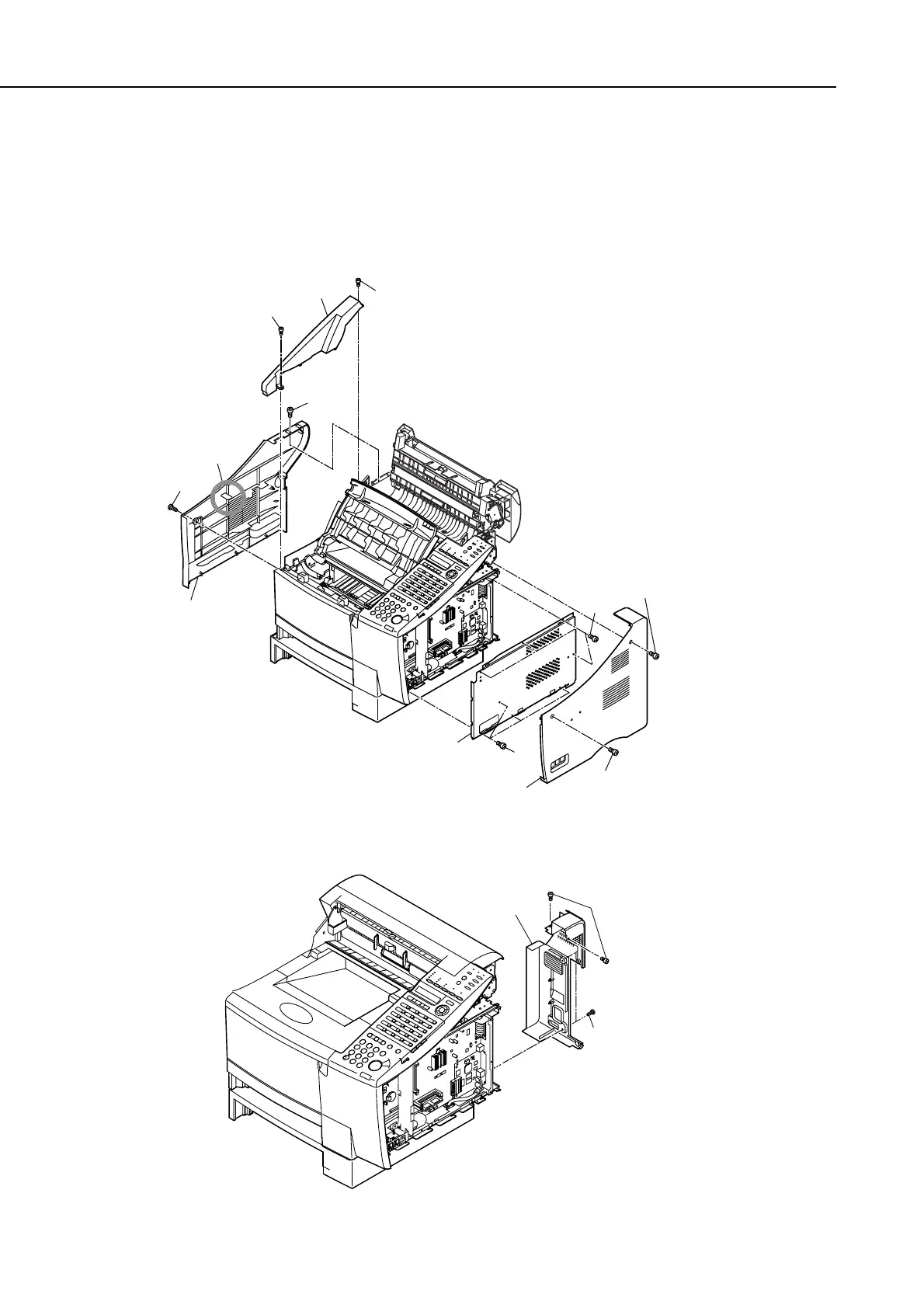

Figure 3-8 Paper Pick-up Roller (multi-purpose) 1
(5) Remove the 4 screws (e), and detach the rear right cover.
Figure 3-9 Paper Pick-up Roller (multi-purpose) 2
c
Upper left cover
c
d
claw
d
Left cover
b
a
a
Right cover
Shield plate
b
Rear right cover
e
e
