LASER CLASS 730i/720i/710 Chapter 3: Assembly and Disassembly
3-10
(11) Remove the screw (j), and detach the top cover unit.
(12) Remove the 2 screws (k), and detach the arm extending from the main unit and the
joint of the cartridge cover; then, detach the top cover and cartridge cover.

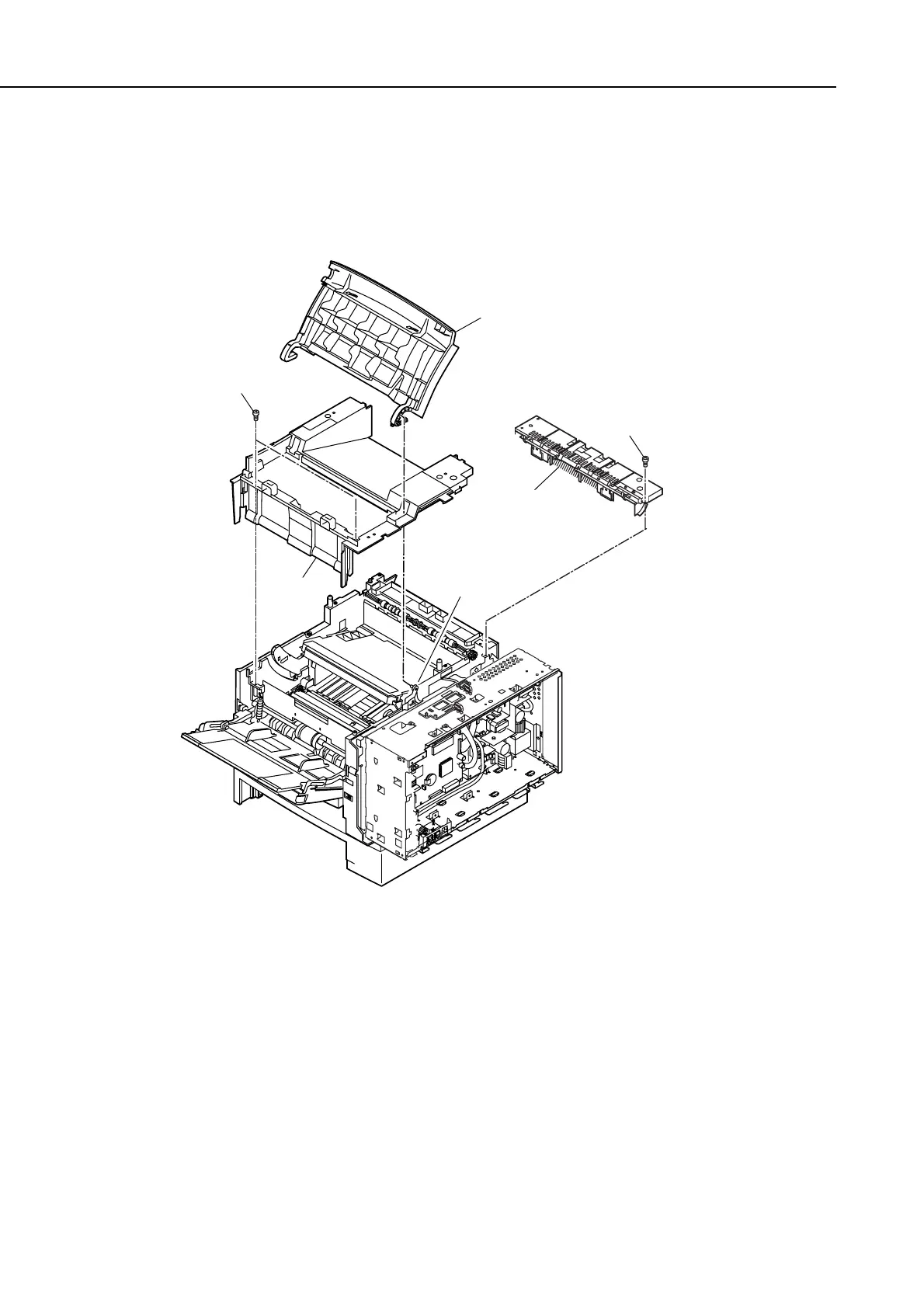

Figure 3-11 Paper Pick-up Roller (multi-purpose) 4
k
Cartridge cover
j
Top cover unit
Top cover Arm
