LASER CLASS 730i/720i/710 Chapter 3: Assembly and Disassembly
3-11

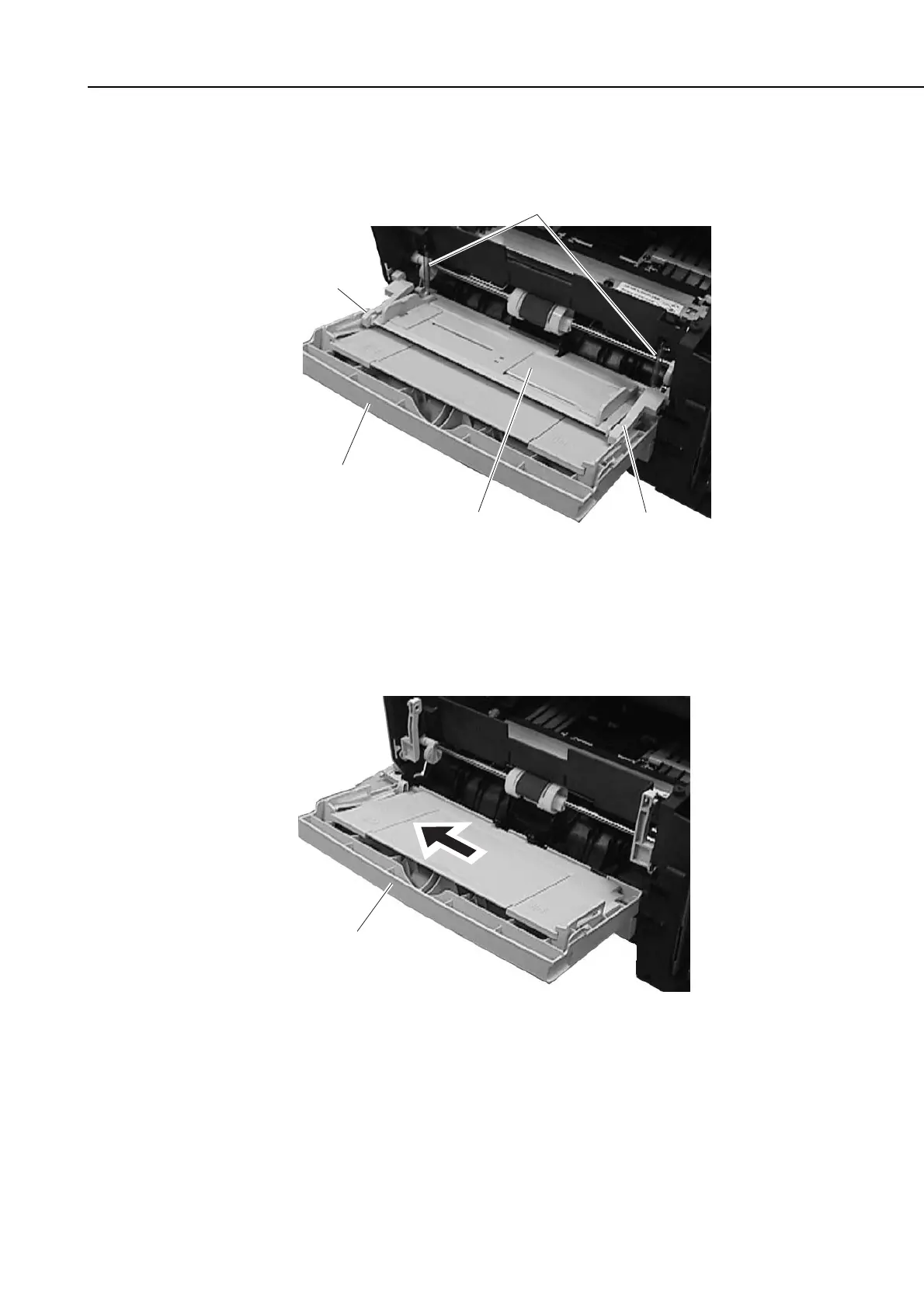

(13) Remove the 2 springs from the machine side; then, detach the multi-purpose tray
ass’y from the front cover ass’y and the left and right hinges.
Figure 3-12 Paper Pick-up Roller (multi-purpose) 5
(14) Shift the front cover ass’y to the left to detach.
Figure 3-13 Paper Pick-up Roller (multi-purpose) 6
Hinge (right)
Hinge (left)
Springs
Multi-purpose tray ass'y
Front cover ass'y
Front cover ass'y
To Next Page
