LASER CLASS 730i/720i/710 Chapter 3: Assembly and Disassembly
3-12

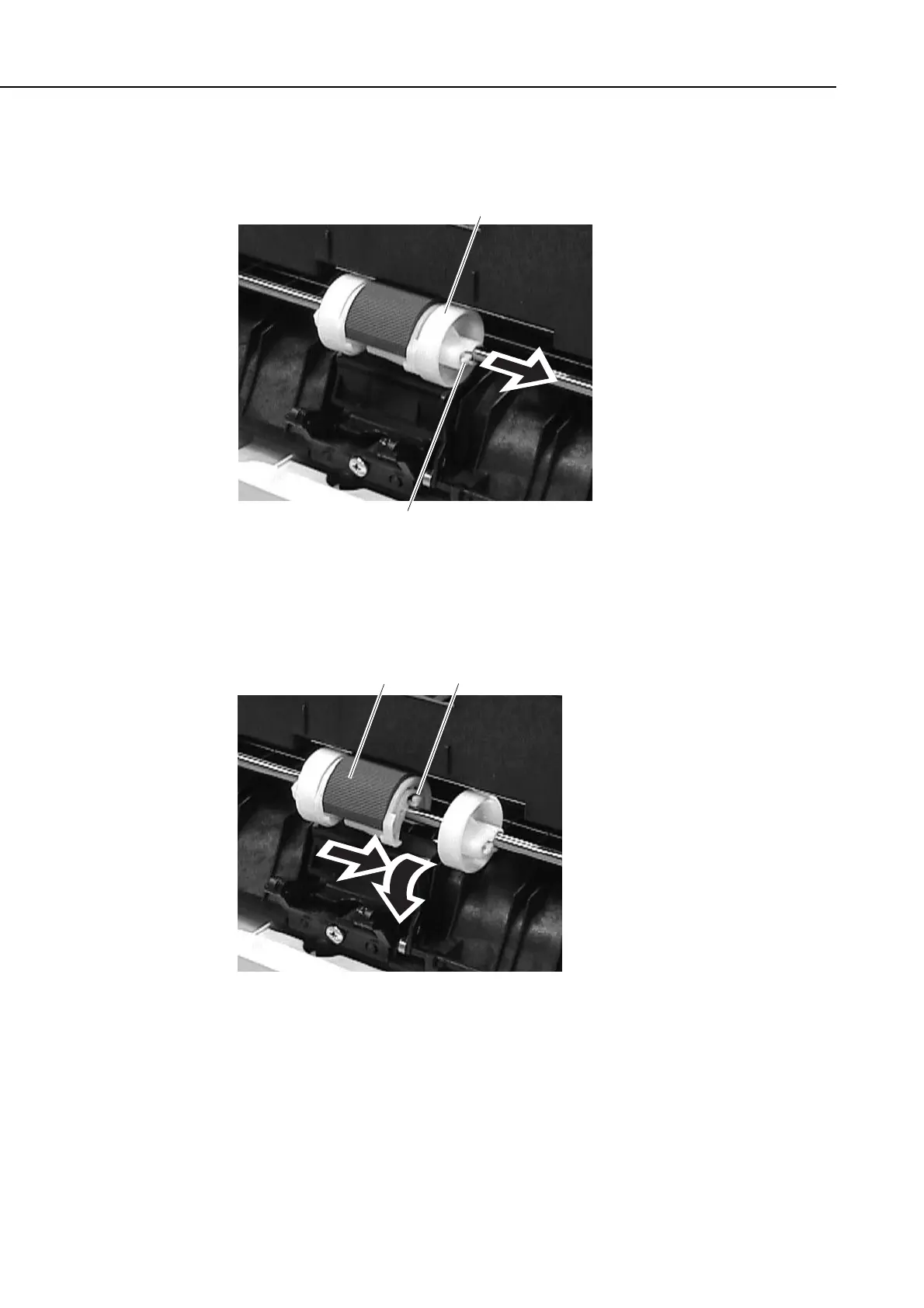

(15) While spreading open the roller claw found to the right of the pick-up roller, shift the
roller to the right.
Figure 3-14 Paper Pick-up Roller (multi-purpose) 7
(16) While spreading open the claw of the pick-up roller, shift the roller to the right; then,
as if to rotate it toward the front, detach the pick-up roller.
Figure 3-15 Paper Pick-up Roller (multi-purpose) 8
Roller (right side)
Claw
Pick-up roller Claw
