Canon MX700 - Grease Application; Printer Unit

(6) Grease application
1) Printer unit

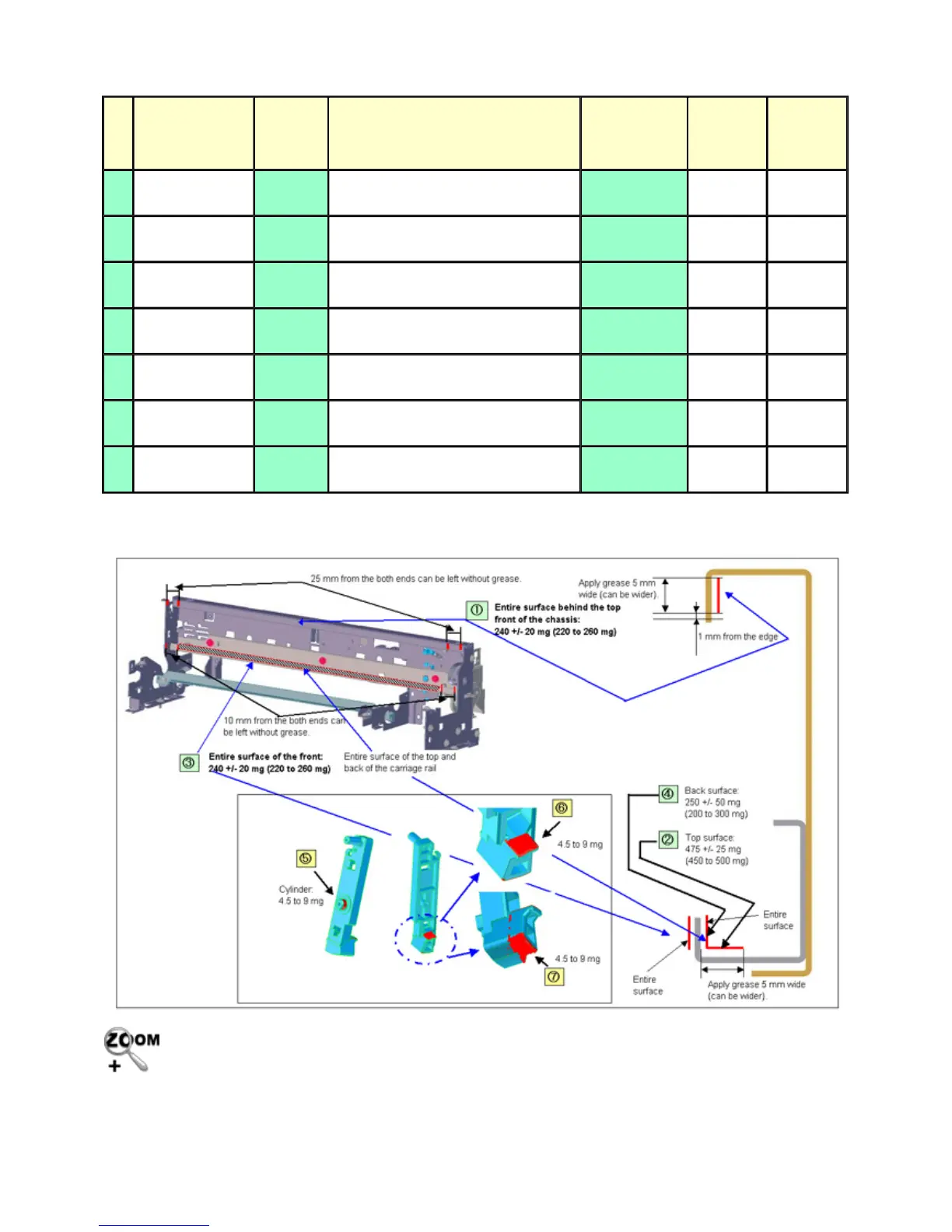

1 drop = 9 to 18 mg
No Part name
Drawing
No.
Where to apply grease / oil Grease / oil
Grease /
oil
amount
(mg)
Number
of
locations
1 Chassis ass'y (1)
Behind the top front of the chassis
where the carriage unit slides
Floil KG107A 240 +/- 20 1
2 Carriage rail (2)
Top surface of the carriage rail where
the carriage unit slides
Floil KG107A 475 +/- 25 1
3 Carriage rail (3)
Front surface of the carriage rail where
the carriage unit slides
Floil KG107A 240 +/- 20 1
4 Carriage rail (4)
Back of the carriage rail where the
carriage unit slides
Floil KG107A 250 +/- 50 1
5 AP-PG arm lever (5) Chassis sliding portion
Molykote PG-
641
4.5 to 9.0 1
6 AP-PG arm lever (6) AP-PG swing arm contact portion
Molykote PG-
641
4.5 to 9.0 1
7 AP-PG arm lever (7) AP-PG swing arm contact portion
Molykote PG-
641
4.5 to 9.0 1
27 / 41
