Canon MX700 - LF Roller; Platen

2) Platen
1 drop = 9 to 18 mg
3) LF roller
1 drop = 9 to 18 mg
No Part name
Drawing
No.
Where to apply grease / oil Grease / oil
Grease /
oil amount
(mg)
Number of
drops x
locations

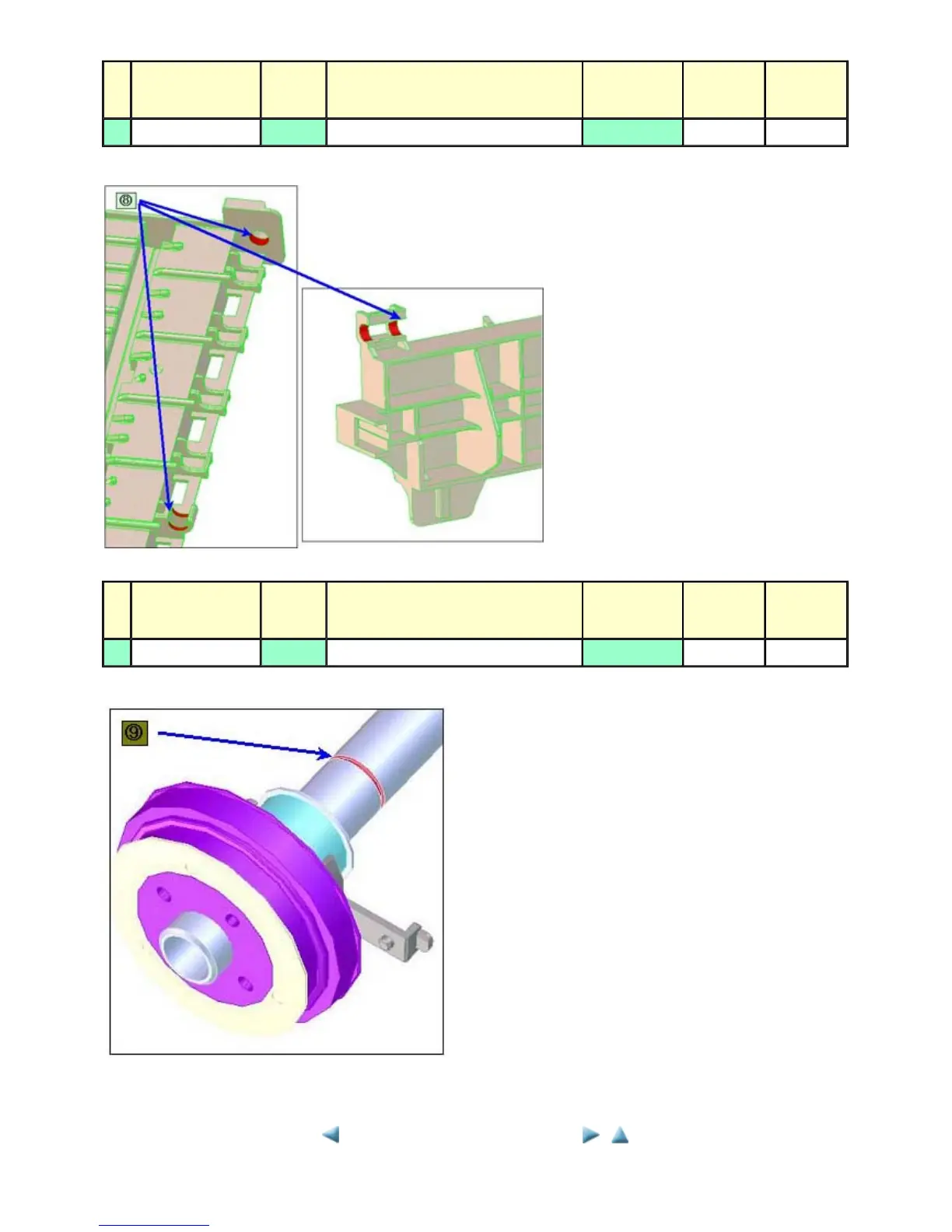

8 Platen (8) Eject roller sliding portion Floil KG107A 4.5 to 9 1/2 x 3
No Part name
Drawing
No.
Where to apply grease / oil Grease / oil
Grease /
oil amount
(mg)
Number of
drops x
locations
9 LF roller (9) LF earth spring sliding portion IF-20 9 to 18 1/2 x 1
