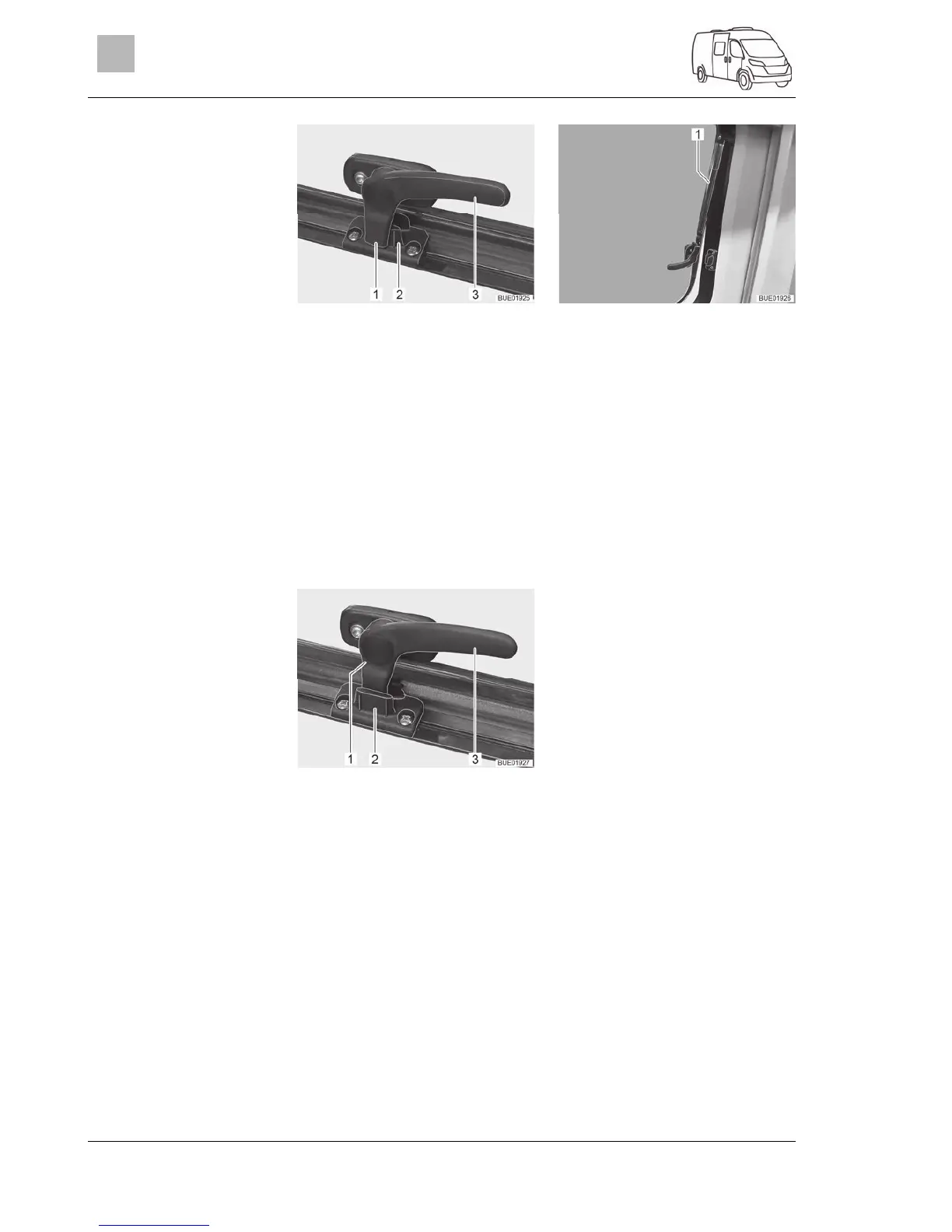

Fig. 10 Catch lever in "closed" posi-
tion
Fig. 11 Hinged window with auto-
matic hinges, open
Turn the catch lever (Fig. 10,3) a quarter turn towards the centre of the
window.
Open hinged window half up to the required position. Allow the hinged
window to engage automatically with the automatic hinge (Fig. 11,1).
The hinged window remains locked in the required position.
Open the hinged window as wide as necessary until the latch releases.
Close the hinged window.
Turn the catch lever (Fig. 10,3) a quarter turn towards the window
frame. The locking catch (Fig. 10,1) is located on the inside of the win-
dow catch (Fig. 10,2).
Fig. 12 Catch lever in "continuous
ventilation" position
With the catch lever, the hinged window can be placed in two positions:
"Continuous ventilation" (Fig. 12)
"Firmly closed" (Fig. 10).
To place the hinged window into the "continuous ventilation" position:
Turn the catch lever (Fig. 12,3) a quarter turn towards the centre of the
window.
Slightly open the hinged window outwards.
Turn the catch lever a quarter turn towards the window frame. The lock-
ing catch (Fig. 12,1) has to be moved into the recess of window catch
(Fig. 12,2).
During the journey, the hinged window may not be in "continuous ventila-
tion" position.
Opening:
Closing:
Continuous ventilation
