Sanitary fittings
2999828 - 05/18 - EHG-0012-00EN
93
10

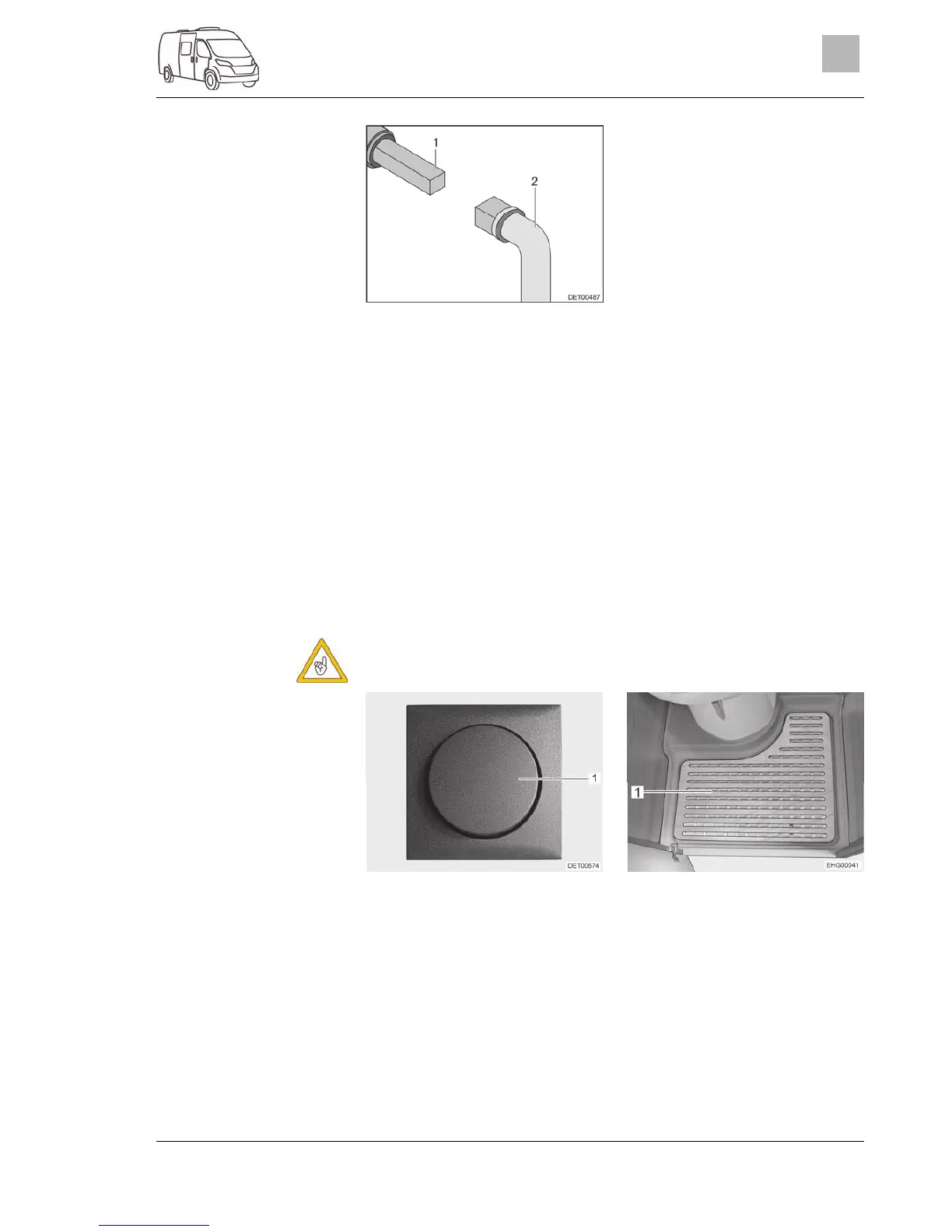

Fig. 77 Operation of the waste water
tap
The waste water tap for the waste water disposal is installed on the left-hand
side of the vehicle.
The square bolt for opening the waste water tap is directly accessible under
the vehicle floor.
Place key (Fig. 77,2) onto the square bolt (Fig. 77,1).
In order to open the waste water tap, turn the square bolt a quarter turn.
Completely empty waste water tank.
To close the waste water tap, turn the square bolt back as far as it will
go.
10.4 Toilet compartment
Do not transport any loads in the shower tray. The shower tray or other
items of equipment in the toilet compartment can be damaged.
Fig. 78 Light switch for toilet com-
partment
Fig. 79 Removable floor plate
The light switch (Fig. 78,1) for the toilet compartment is located in the toilet
compartment.
Take out the removable floor plate (Fig. 79,1) for showering.
Emptying:
