8.7.2 230 V fuse
Check the fault current protection switch for each connection to the
230 V power supply, at least once every 6 months.

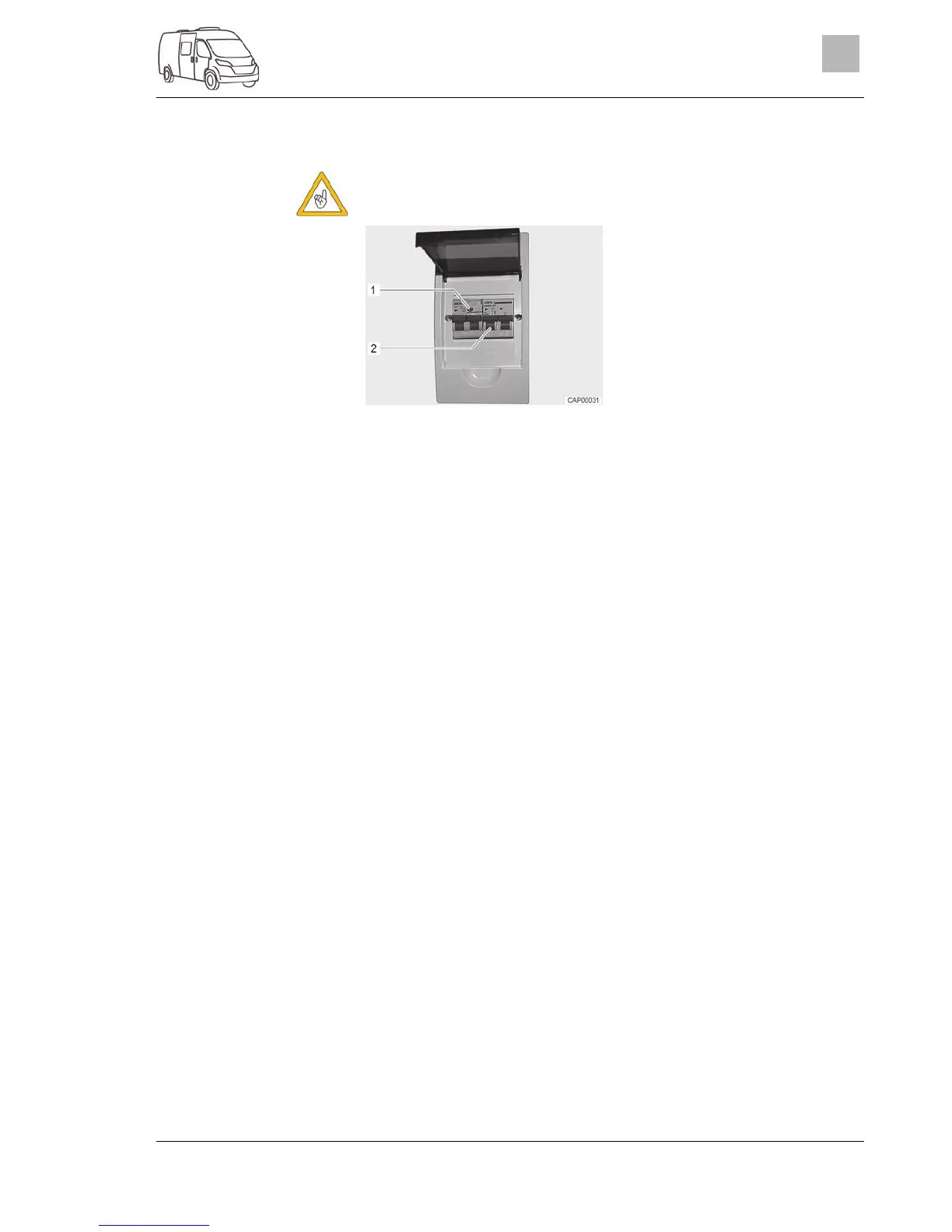

Fig. 56 230 V fuse box with safety
cut-out and FI-switch
A fault current protection switch (FI-switch) in the fuse box protects the com-
plete vehicle from fault current (0.03 A). A downstream safety cut-out (10 A)
(Fig. 56,2) secures the 230 V power supply.
When the vehicle is connected to the 230 V power supply, press the test
button (Fig. 56,1). The fault current protection switch must trip.
The fuse box is installed behind the service flap in the seat box.
