10.2 Water tank
The water tank holds 90 l.
For driving safety and for regulatory reasons, when the vehicle is motion
the fill quantity must be reduced. If the water is drained using the safety
drainage rotary handle (see section 10.2.4), a residual quantity of ap-
proximately 20 litres will remain in the water tank.
The water tank is installed on the right side in the rear area and accessible
via 2 flaps.

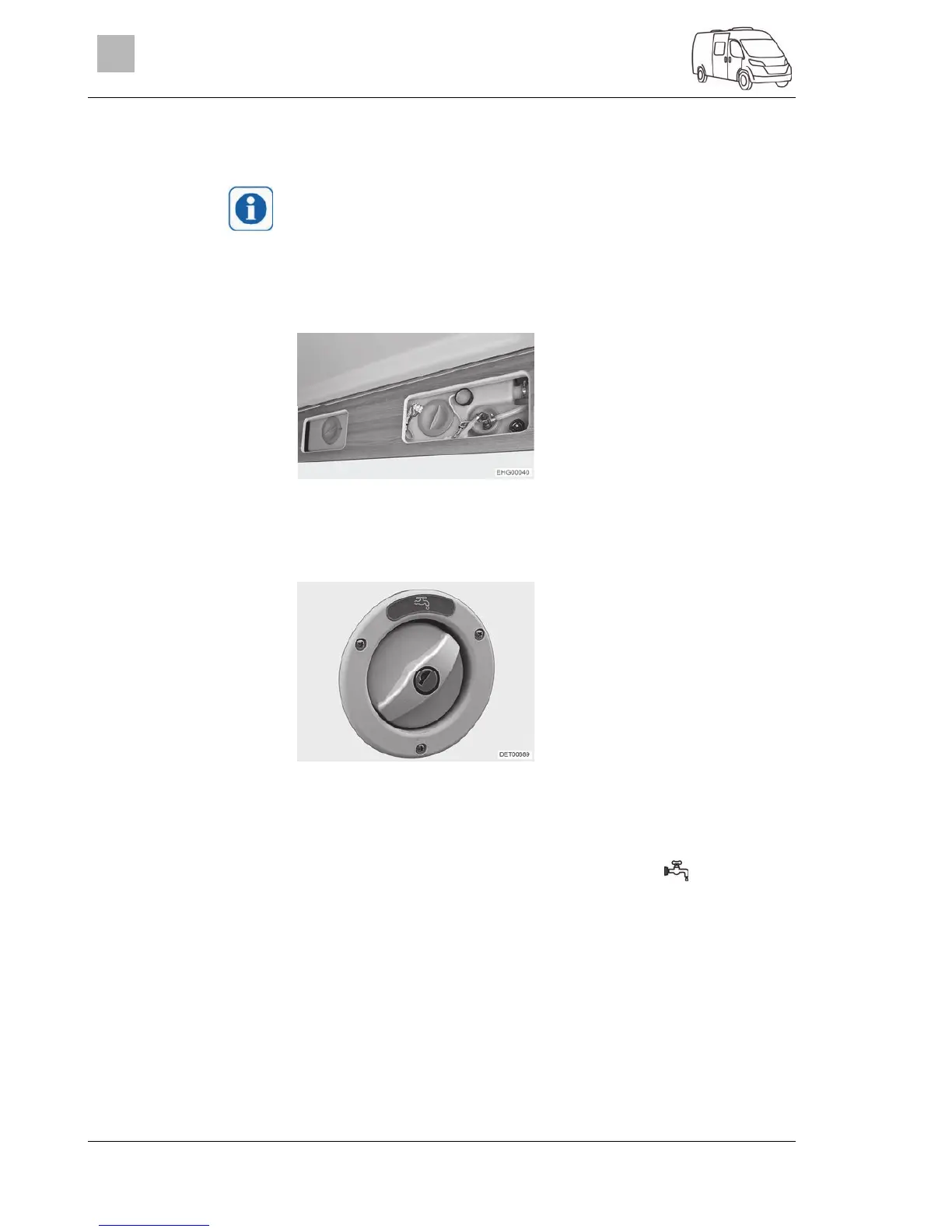

Fig. 69 Water tank
10.2.1 Drinking water filler neck with cap
Fig. 70 Cap for the drinking water
filler neck
The drinking water filler neck is on the right or left side of the vehicle, de-
pending on the model.
The drinking water filler neck is indicated by the symbol " " (Fig. 70,1).
The cap is opened and closed using the key for the external flap locks.
Insert key into locking cylinder (Fig. 70,2) and turn a quarter turn in an
anticlockwise direction.
Remove the cap.
Fill the water tank with drinking water.
Place cap on the drinking water filler neck.
Turn key one quarter turn in a clockwise direction.
Remove the key.
Check that the cap sits firmly on the drinking water filler neck.
Position
Opening:
Closing:
