Gas system
2999828 - 05/18 - EHG-0012-00EN
57
7
Place a filled gas bottle in the gas bottle compartment.
Fix gas bottle in place with the fixing belts.
Position the gas pressure regulator (Fig. 47,2) with gas tube (Fig. 47,1)
on the gas bottle and tighten the knurled nut (Fig. 47,3) (normally a left-
hand thread). Do not tighten too firmly.
Close flap for the gas bottle compartment.
7.5 Gas isolator taps
For every gas-operated device there is a gas isolator tap installed in the ve-
hicle. The gas isolator taps are installed on the left side in the rear area.
1 Heater / hot water gas isolator tap,
open
2 Gas isolator tap, not assigned
3 Cooker gas isolator tap, open

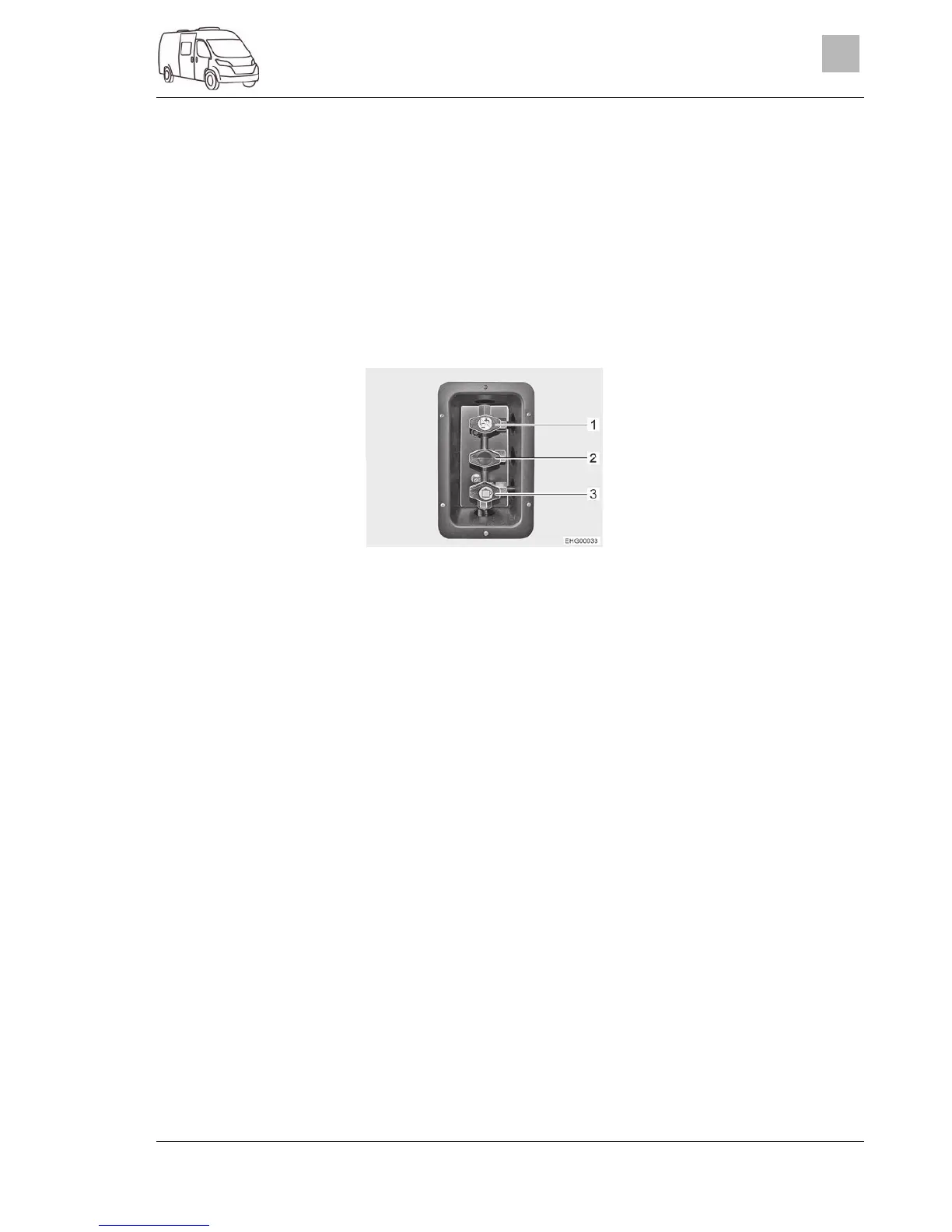

Fig. 48 Gas isolator taps position
(example)
Set gas isolator tap in the direction of the gas pipe.
Set gas isolator tap perpendicular to the gas pipe.
Opening:
Closing:
