212/212X Installation & Technical
8200-M639-O1 Rev D 09/14
Mounting the 212/212X
Before beginning installation of your Model 212/21X indicator, make
certain that it has been received in good condition. Carefully remove it
from the shipping carton and inspect it for any evidence of damage
(such as exterior dents or scratches) that may have taken place during
shipment. Keep the carton and packing material for return shipment if it
should become necessary. It is the responsibility of the purchaser to
file all claims for any damages or loss incurred during transit.
The Model 212/212X is housed in a Thermoplastic enclosure which
mounts to a wall or smooth, flat, vertical surface using a quick-detach
bracket.

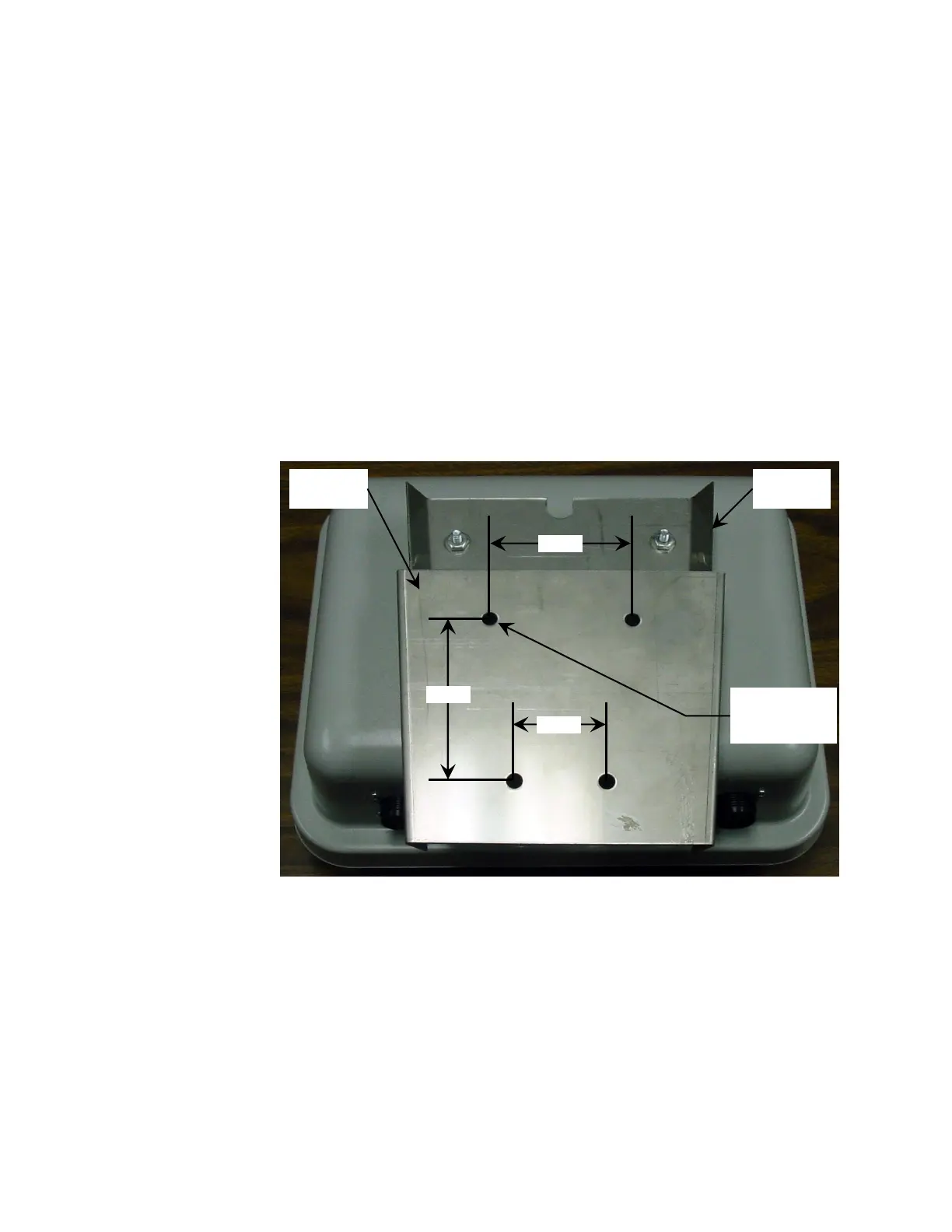

Figure No. 6
Clearance
for 1/4” size
screw
To Next Page
