212/212X Installation & Technical
8200-M639-O1 Rev D 09/14
Serial and I/O Cable Connection
The 212/212X I/O cable connection (user specified) may be connected to
the internal serial RS-232 or 20mA current loop terminals to be
connected to a printer to record weight and associated data or to a
remote display or even to a computer for transmission of weight data.
When connected to the appropriate serial communication terminals, the
weight data may be transmitted on demand (pressing the PRINT key or
on receipt of a command from a computer).
Serial and I/O Connector
Figure No.10

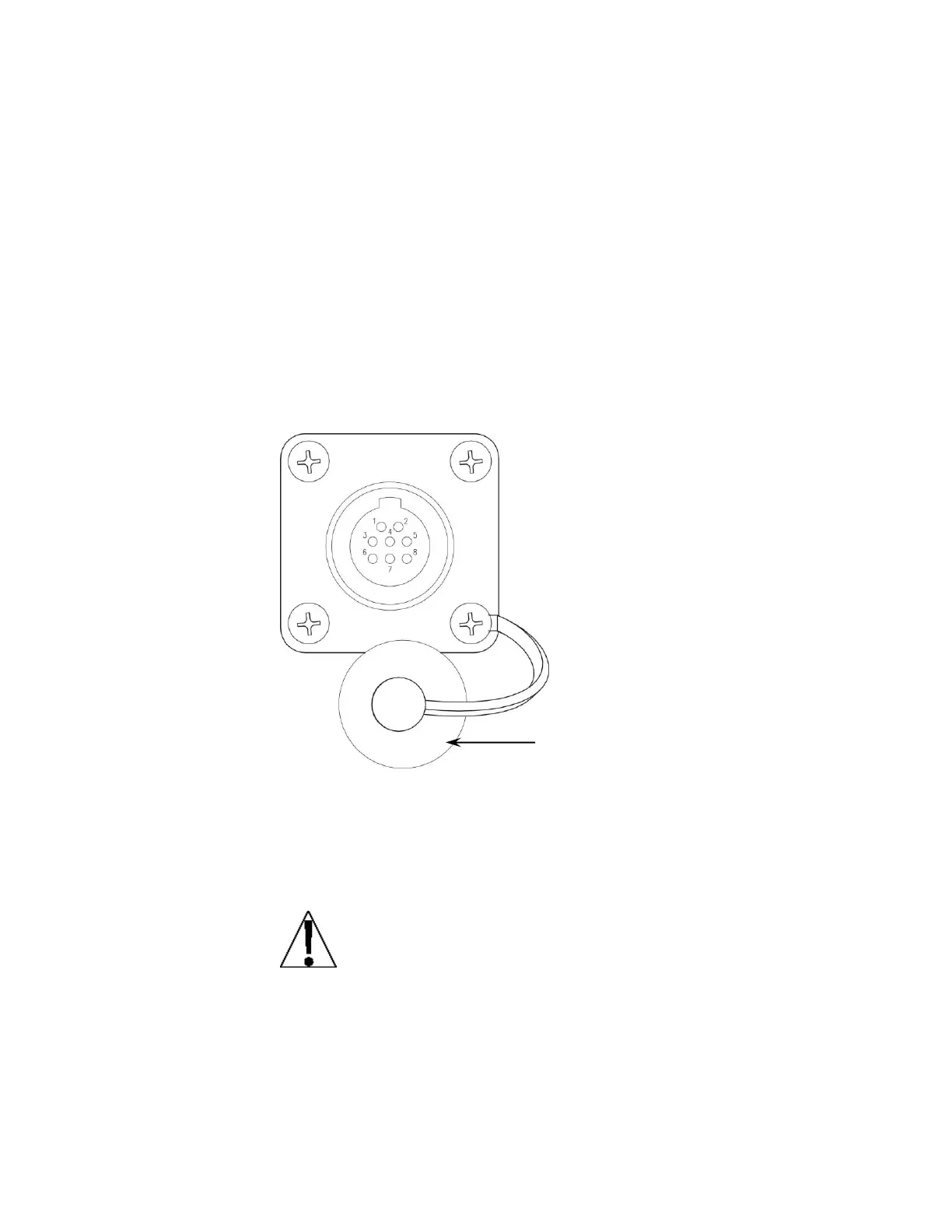

Figure No. 10 above is the Serial and I/O connector as viewed from the
bottom of the indicator.
IMPORTANT! Figure No. 10 is for reference only. Connections
to the Serial and I/O connector require Cardinal Part Number
“AGSIO”, Serial/DIO Mating Connector with 12 ft cable. See
Figure No. 11
The pin number descriptions are typical connections. The connector can
be configured with various Input/Output functions depending on the
requirements of the operation.
I/O Dust Cover
CPN 6610-2126
