Cardinal 212 Series User Manual

212/212X Installation & Technical
8200-M639-O1 Rev D 09/14
Page 25
Cable Connections
The Model 212/212X uses nylon circular DIN connectors (similar to the
Amphenol
®
military type connectors) for all cable connections. Depending
on the model, there are one or four Scale connectors, one Serial and I/O
connector and one DC power connector.

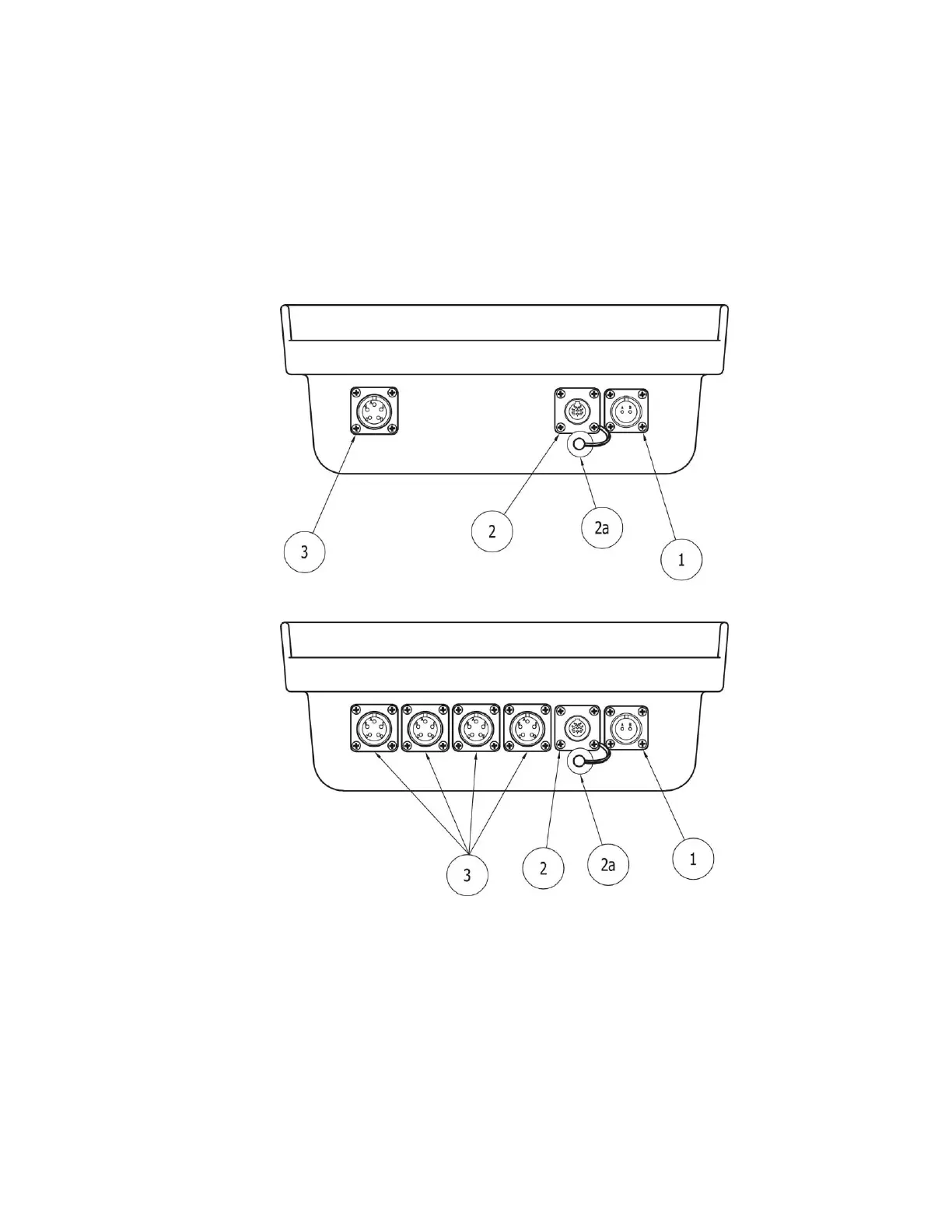

Figure No. 7
Item
Description
1
Power Connector – 12VDC (10.5 to 14.4VDC)
2
I/O Connector – Serial, Isolated Inputs/Outputs
2a
I/O Connector Dust Cover – CPN 6610-2126
3
Scale Connector – 1 or 4 Scales (depending on model, 1S or 4S)
Model Shown
212-1S
212X-1S
Model Shown
212-4S
212X-4S
