212/212X Installation & Technical
8200-M639-O1 Rev D 09/14
Page 27
DC Power Cable Connection
The 212/212X has been designed to operate from 12VDC using a 2-pin
power input connector. The input power source is an external 12V battery
and should be 10.5 to 14.4VDC. The positive (red) power wire is
connected to the “A” pin on the connector and the GND (black) wire is
connected to the “B” pin on the connector.
DC Power Connector Wiring
Pin No.
Description
A
+12VDC (Red Wire)
(10.5 to 14.4VDC)
B
GND (Black Wire)
(Ground)

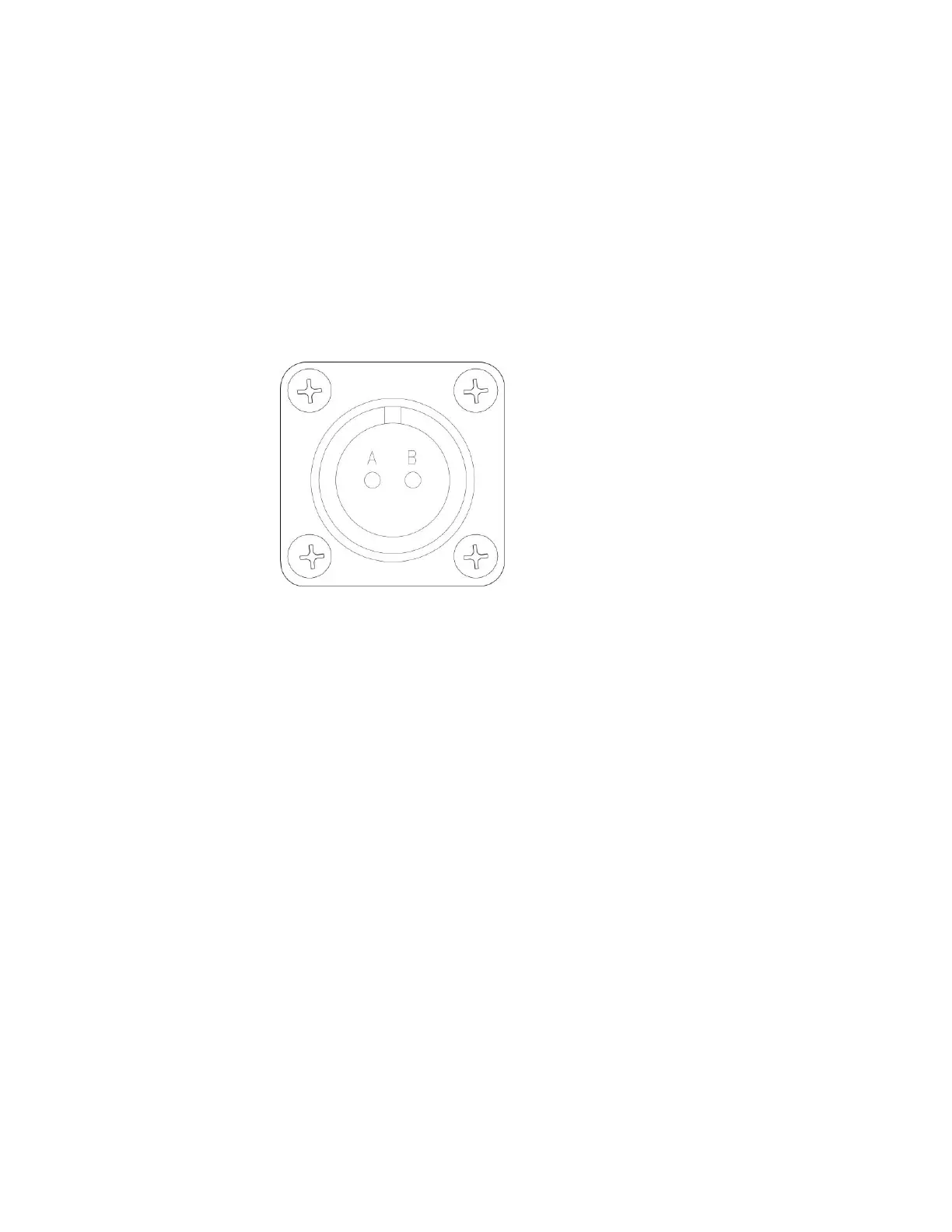

Figure No. 8
Figure No. 8 above is the 2-pin DC Power connector as viewed from the
bottom of the indicator.
Connect the wires from the power source cable to the 2-pin power
connector. Note that the DC Power connector on the indicator identifies
the connector pins.
