Cardinal 212 Series - 1.4 Annunciators

212/212X Installation & Technical
8200-M639-O1 Rev D 09/14
Page 17
1.4 Annunicators
The Model 212/212X is equipped with annunciators that are turned on to
indicate that the display is in the mode corresponding to the annunciator
label or that the status indicated by the label is active. This section

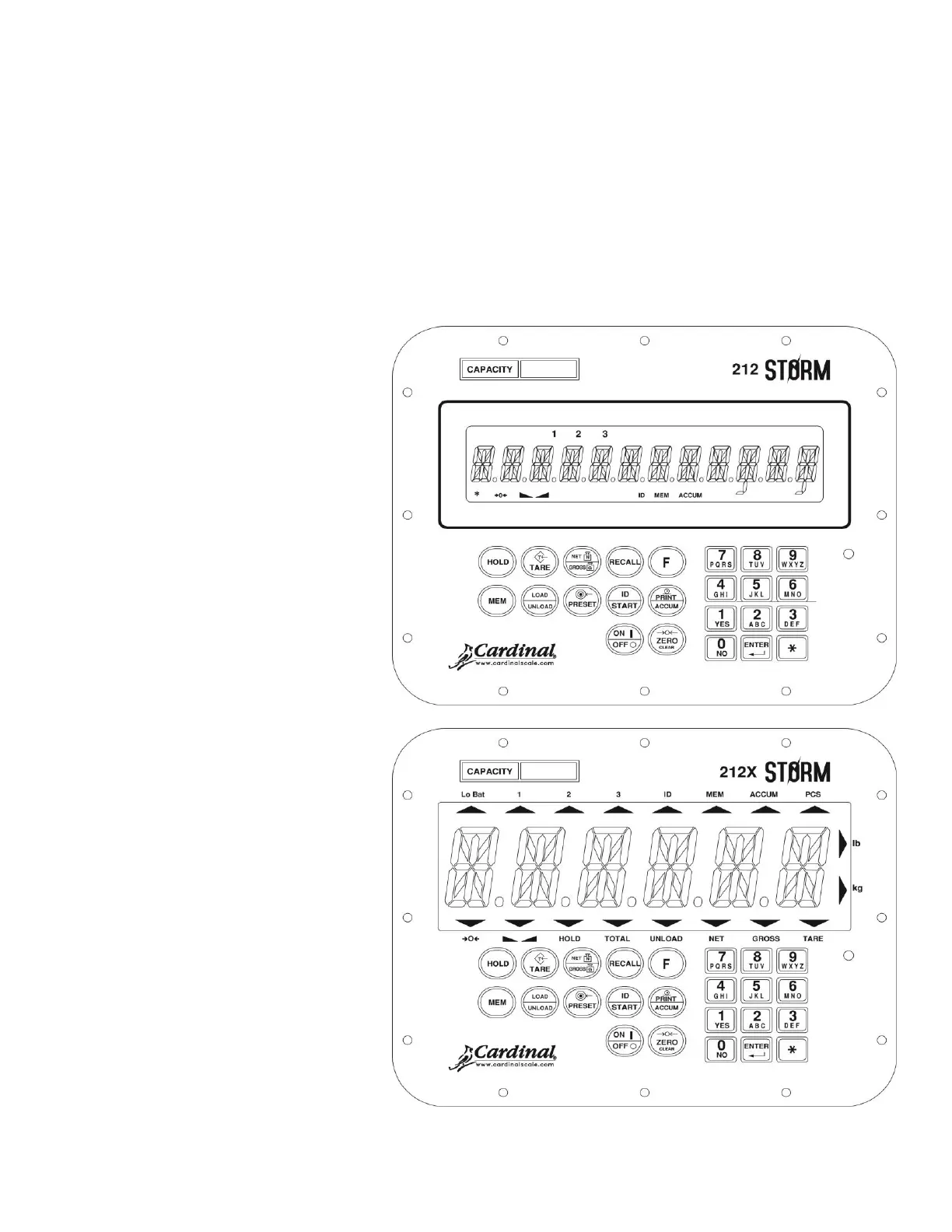

describes each annunciator. Refer to Figure No. 4 and 5 for the location
of the annunciators.
Figure No. 4
Figure No. 5
