Cardinal 708 - Desktop Enclosure

20

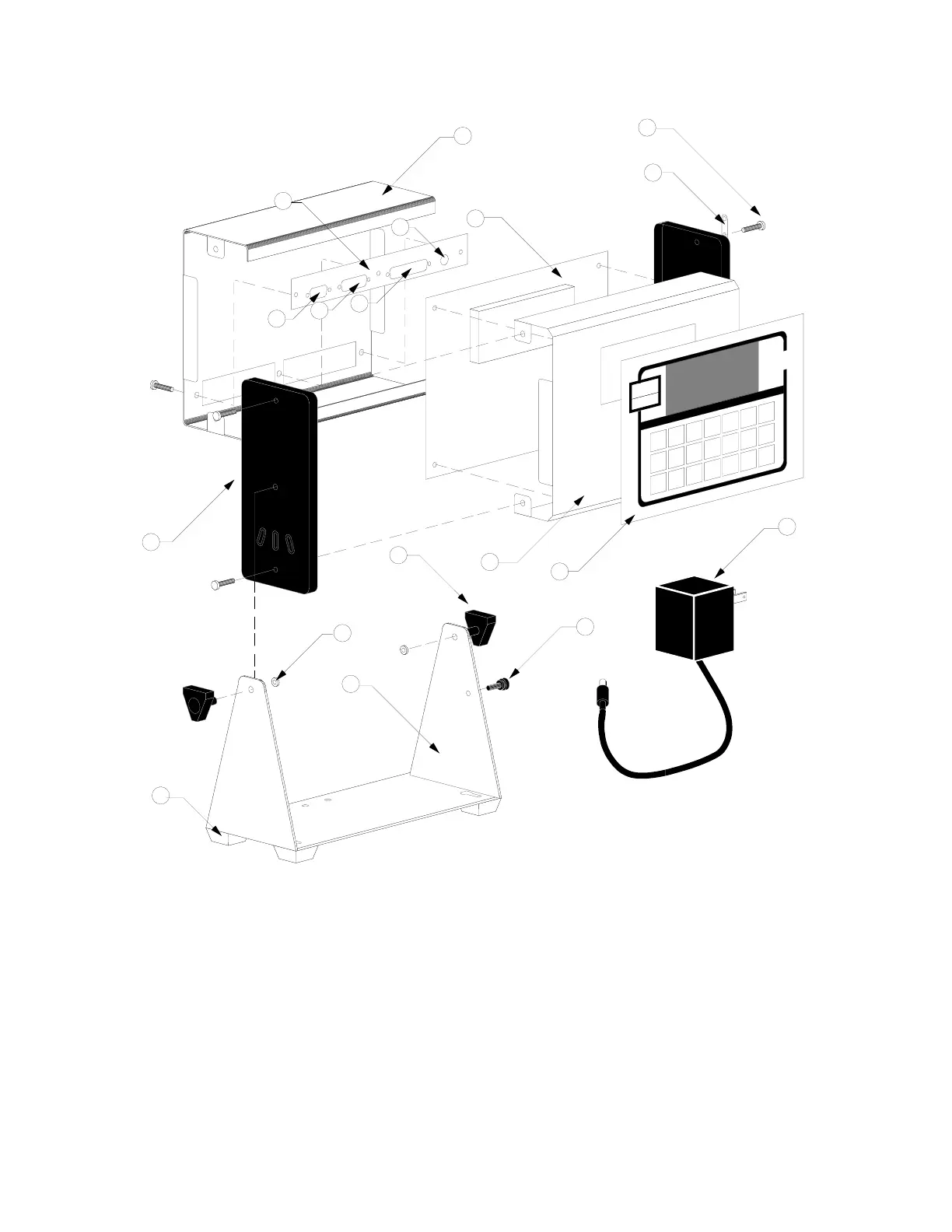

DESKTOP ENCLOSURE
Item Part No. Description
1 8558-D007-08 Back Cover
2 8558-C008-0A Front Cover
3 8539-D005-18 End Cap
4 8558-C009-0A Connector Panel
5 *8558-C011-08 Rear Panel overlay
6 8558-D001-0A PC Board Assy
7 8558-D003-08 Keypad
8 8558-D010-08 Gimbal
9 6540-1052 Knob
10 6540-1004 Rubber Foot
Item Part No. Description
11 6021-1199 Thumbscrew
12 8530-B159-08 Seal Tab
13 6021-1251 Screw-Truss Head
14 728R90 Power Supply
15 8539-B014-0A Cable, Load Cell
16 8558-B004-0A Cable, PWC
17 8558-B005-0A Cable, Serial I/O
18 8558-B006-0A Cable, Power
19 6024-0083 Rubber Washer
*Not Shown
1
3
13
12
6
2
7
14
11
9
8
10
4
15
16
18
17
19
Figure No. 13
