Cardinal 708 - NEMA 4 X Enclosure

21
NEMA 4X ENCLOSURE
Item Part No. Description
1 8558-D015-0A Enclosure Bottom Assy
3 8558-C021-08 Keyboard Bezel Ring
4 8558-D003-08 Keyboard
5 8558-C017-08 Enclosure Gasket
6 6021-0699 Screw, Enclosure Clamp
7 8530-C088-08 Clamp
8 8558-B032-08 Power Supply Cover
9 728R90 Power Supply,115VAC
Input, 12V, .3A Output
728R901 Power Supply, 230VAC
Input, 12V, .3A Output
10 6610-2248 Gland Connector
Item Part No. Description
11 8558-D001-1A PC Board, Main
12 6021-0624 Pan Head Machine
Screw, 6-32 x 0.625
13 6680-1042 Threaded Spacer
14 8539-C062-0A PC Board, Relay
15 8558-B023-0A Cable, PWC Relay
16 8534-D390-08 Mounting Bracket
17 6021-1061 Screw, 10-32
18 6024-0081 Washer, Rubber Backed
19 6024-0037 Lock Washer, #10
20 6013-0297 Hex Nut, #10
21 6980-1014 Power Cord
1
10
11
14
15
5
6
7
4
3
13
12
8
16
17
19
20
18
9
21

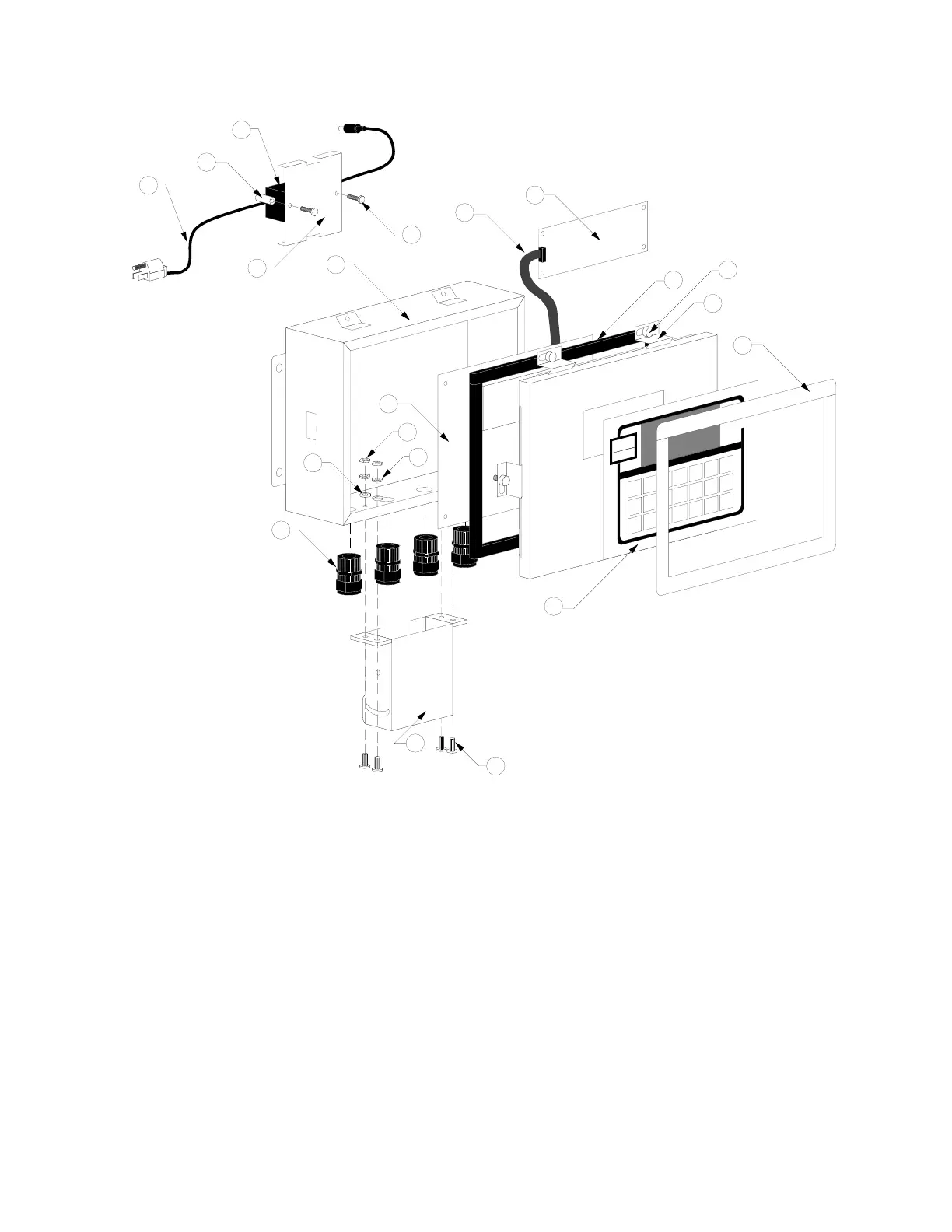

Figure No. 14
Note: Hinge is removed for illustrative purposes.
