Cephalometric Acquisition Interface
3–4 IMAGING SOFTWARE OVERVIEW
Cephalometric Program Pane
The cephalometric Program pane enables you to choose different radiological exams as
well as different acquisition formats.

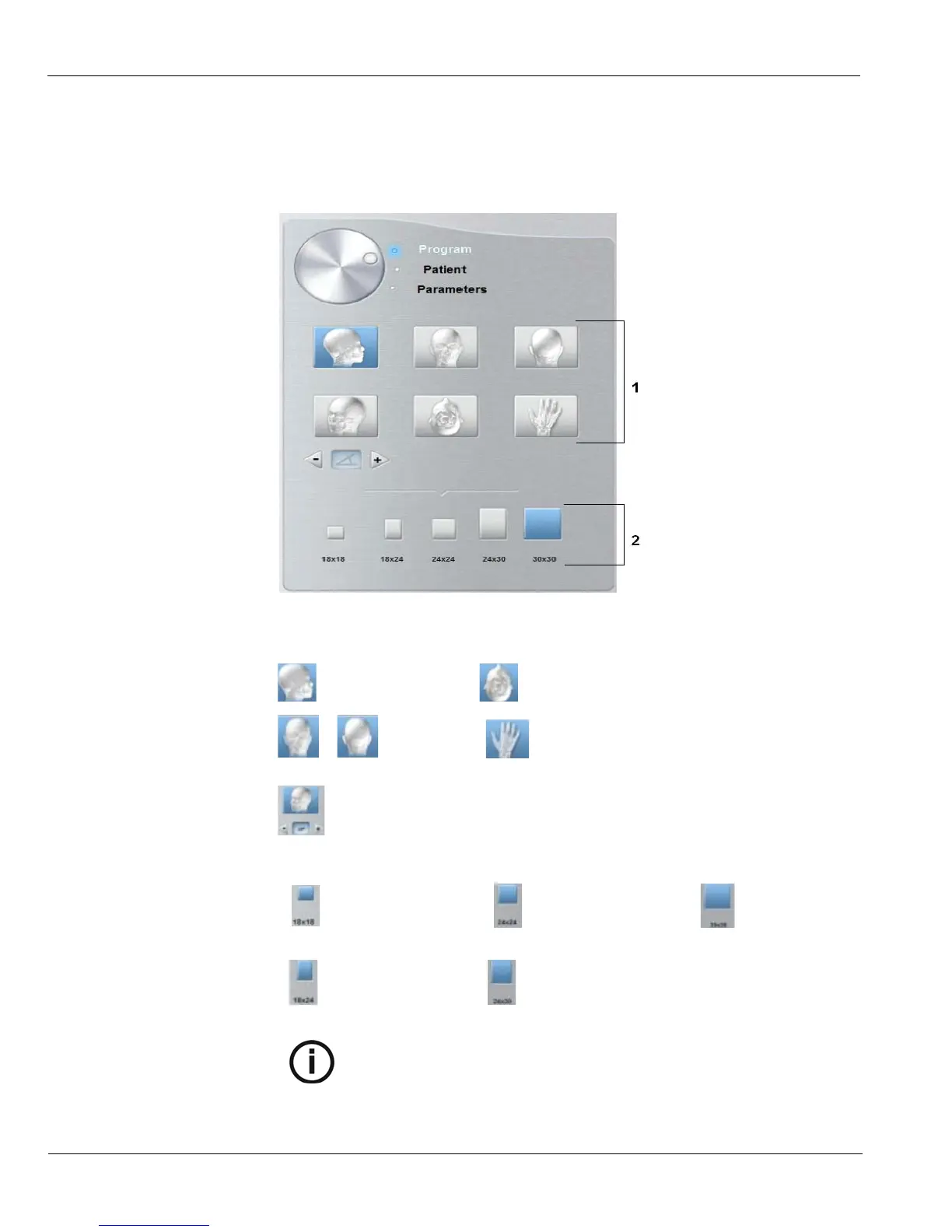

Figure 3–2 Cephalometric Program Pane
1 Radiological exam options:
Click for a lateral exam. Click for a submento-vertex exam.
Click or for a
frontal exam (AP and PA).
Click for a carpus exam.
Click for an oblique exam.
2
Acquisition format options:
Select for a 18 x 18 format. Select for a 24 x 24 format. Select for a 30 x 30
format.
Select for a 18 x 24 format. Select for a 24 x 30 format.
NOTE
The above list of exam types are only a sample of exam options of
the Program pane.
