3.2.2 Passage from the tank (WT)
to the water mains (WM)

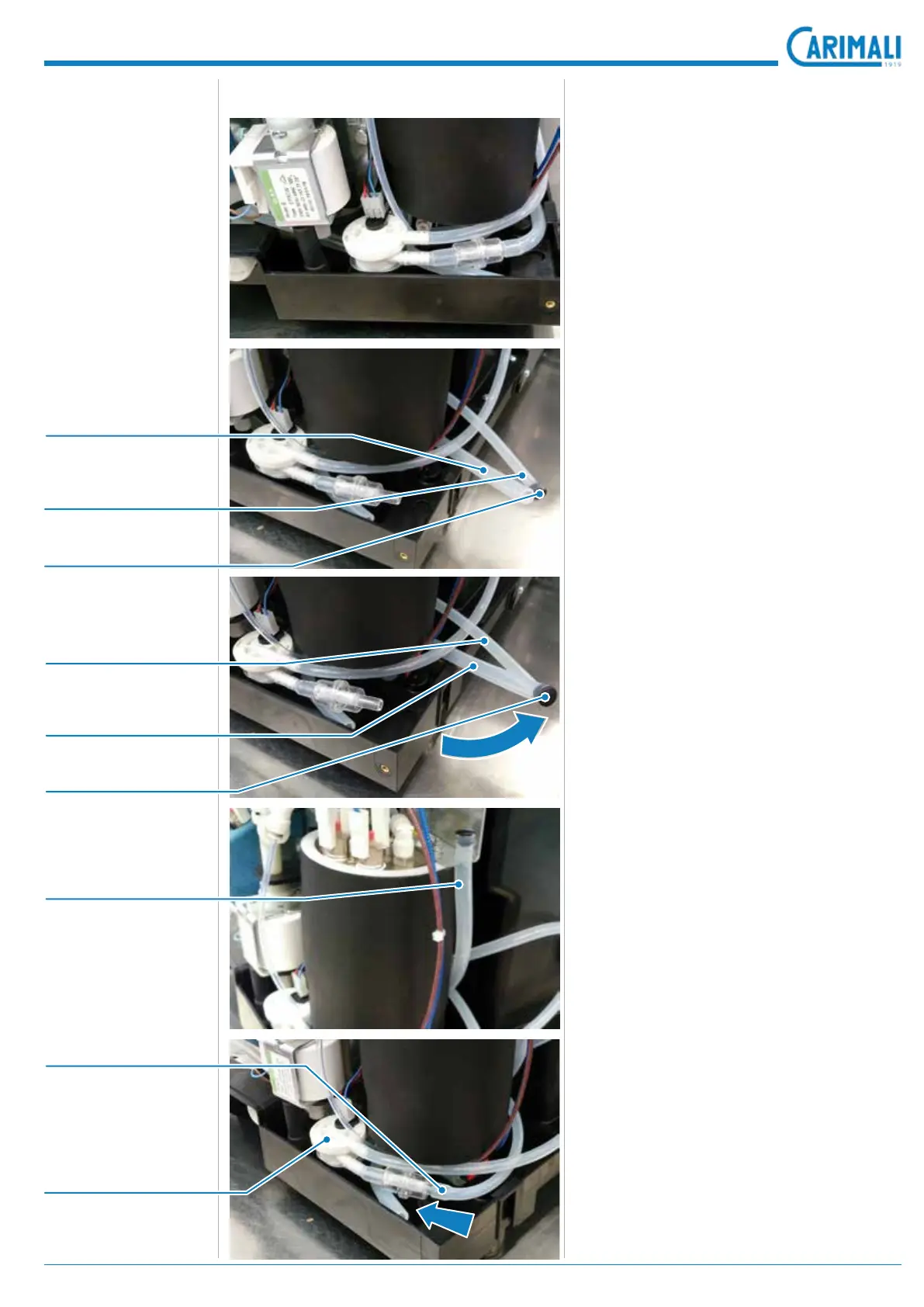

The following image shows the situation
when the water tank is enabled.
Disconnectthetankhosefromtheowme-
ter and position the air break hose.
Move the cap from the Air break hose to the
tank hose.
Put the tank hose in stand-by position, be-
hind the water tank.
InserttheAirbreakhoseintotheowmeter.
Cap
Air break hose
Air break hose
Flowmeter
Tank hose
Cap
Tank hose
Tank hose
Air break hose
