Carimali BlueDot - Version Fresh Brew + Instant Products (F + 1 M)

3.27

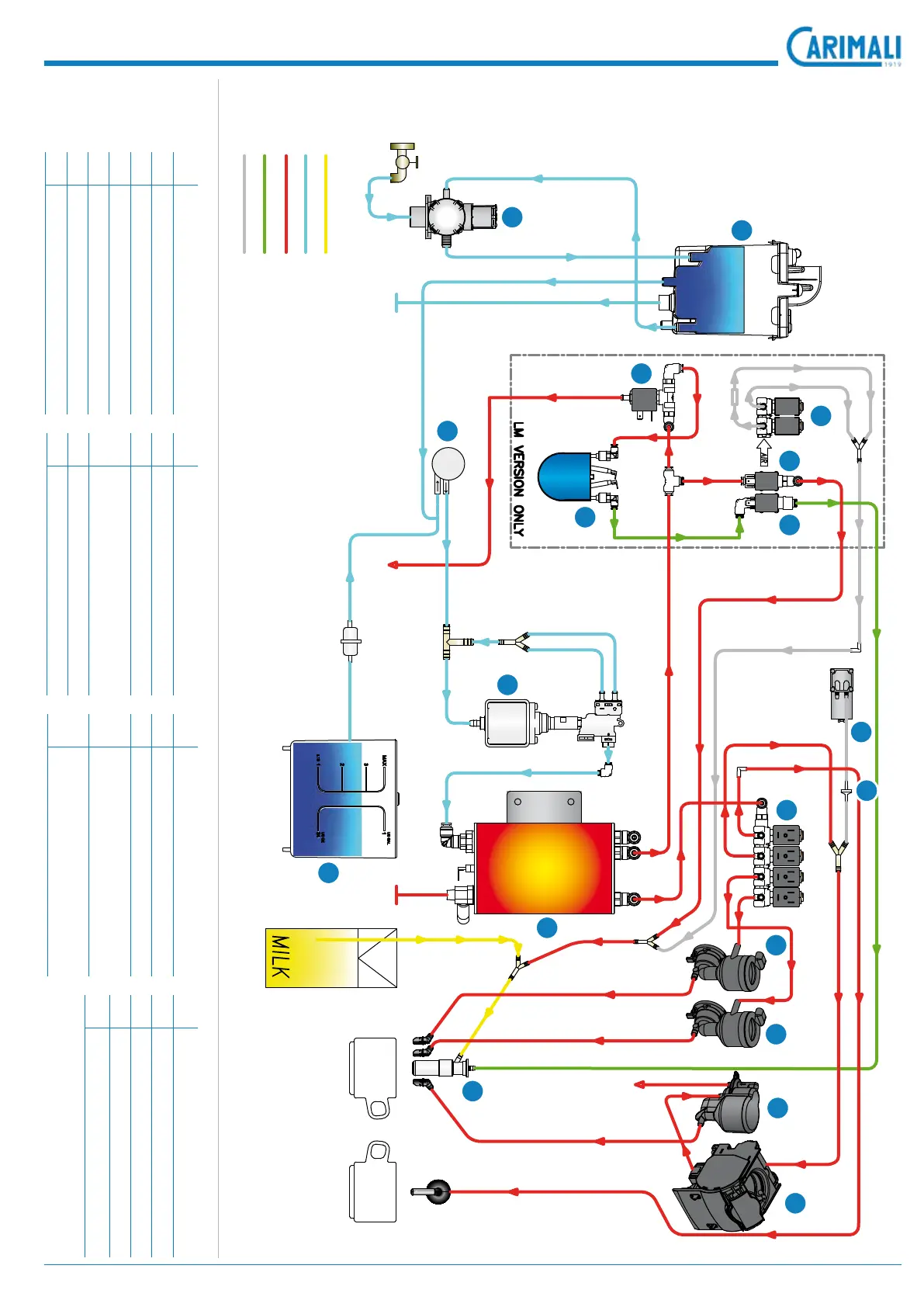

3.5.2 Version Fresh Brew + Instant products (F + 1M)
N Components
1 Water stop solenoid valve 2 Air break 3 Vibration pump 4 4-way valve + VNR 5 Flowmeter 6 Coffee/instant product boiler
N Components
7 Decanter Fresh Brew 8 Fresh Brew unit 9
2-way, 4-element solenoid valve block
10 Mixer
11 Steam 3-way solenoid valve
N Components
12 Steam boiler 13 Milker steam solenoid valve 14
Milker rinsing water solenoid valve
15
Air 2-way solenoid valve block
N Components
16 Milk frother 17 Air pump 18 Check valve 19 Water tank
Milk Cold water Hot water Steam Air
9
10 10
7
8
16
19
6
3
12
11
15
14 13
2
1
5
17
18
