4.7.3 Disassembly of the Fresh Brew unit
ATTENTION
The Fresh Brew unit can be washed only
carrying out the semi-automatic procedure
from the display.
Disassemble the Fresh Brew unit only in
case of replacement.
Disassembly must be performed by a
skilled technician.

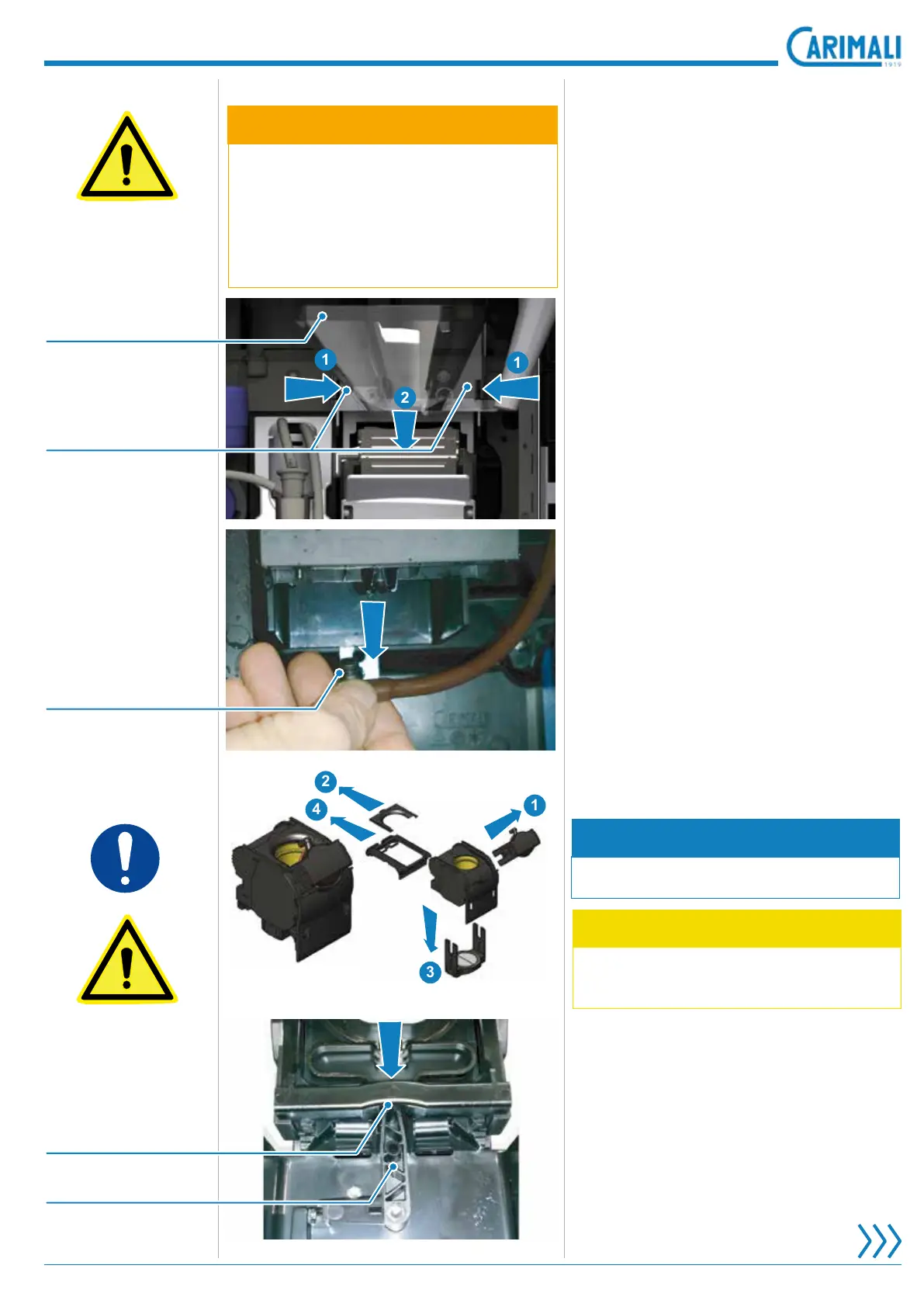

Slightly press the xing aps to release the
coffee conveyor.
Remove the conveyor towards the front side
of the machine.
Disconnect the outlet hose towards the de-
canter from the unit.
Disassemble the Fresh Brew unit and clean
all parts carefully.
For reassembling the Fresh Brew unit, bring
the unit closer to its seat.
Align the unit head with the motor arm.
NOTE
Clean the Fresh Brew unit carefully with
warm water.
WARNING
If the water is too hot, there is the possibili-
ty of washing away the lubricant in the unit.
1
1
2
4
3
2
1
Fixing aps
Coffee conveyor
Outlet hose
Unit head slot
Motor arm
