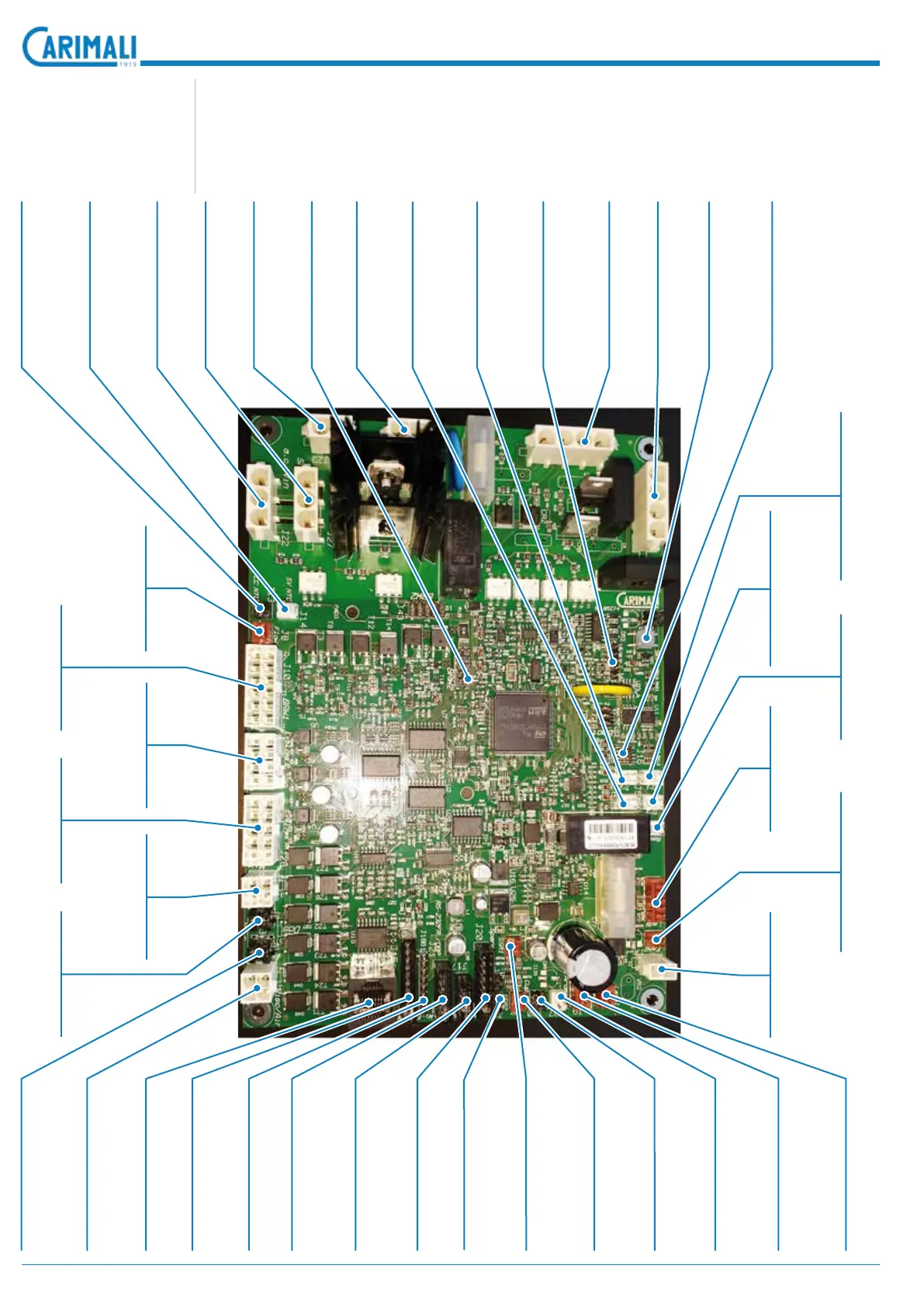

3.4.1 Power board (Code 96.05274)
3.4 ELECTRONIC BOARDS, FUSES, AND WIRING DIAGRAM
The power board receives the 24 Vdc power supply from the switching power supply unit
and powers the main functions of the machine, as well as the other power boards.
Suction fan motor 1 Pump Heating element SV BRW2 JTAG Reed presence sensor TR4 Reed presence sensor TR2 SPARE DAC SPARE1 - 2 Heating element DC 230V for power supply unit 230V for users Temperature sensor NTC SV Temperature sensor NTC CC
Electromagnet
Cup Station
Aroma fan motor
Grounds drawer
presence sensor
Tank level
sensor
Heater air pump
motor
Doser motor 2
RS 232
Modem Wi-Fi
RS 232
User debug
Programming fridge
RS 232
Outer token box
RS 232
Can BUS
Outer pilot
SSR
SPARE PARTS
TTL OPTION
Outer pilot
SSR
Power
Lighting
TR 1-2-3-4
Reed presence
sensor TR3
Suction fan
motor 1
Grounds drawer
microswitch
Reed presence sensor
TR1
Flow sensor
BRW1 Solenoid valves
1-2-3-4-5-6
Doser
motor 1
Solenoid valves
7-8-9-10-11-12
Mixer motor 1 - 2
Grinder motor
