Carimali BlueDot - Switching Power Supply Unit 200;240 V (Code 96.05336); Switching Power Supply Unit 100;125 V (Code 96.05336.00.41); Fuse Diagram

3.19

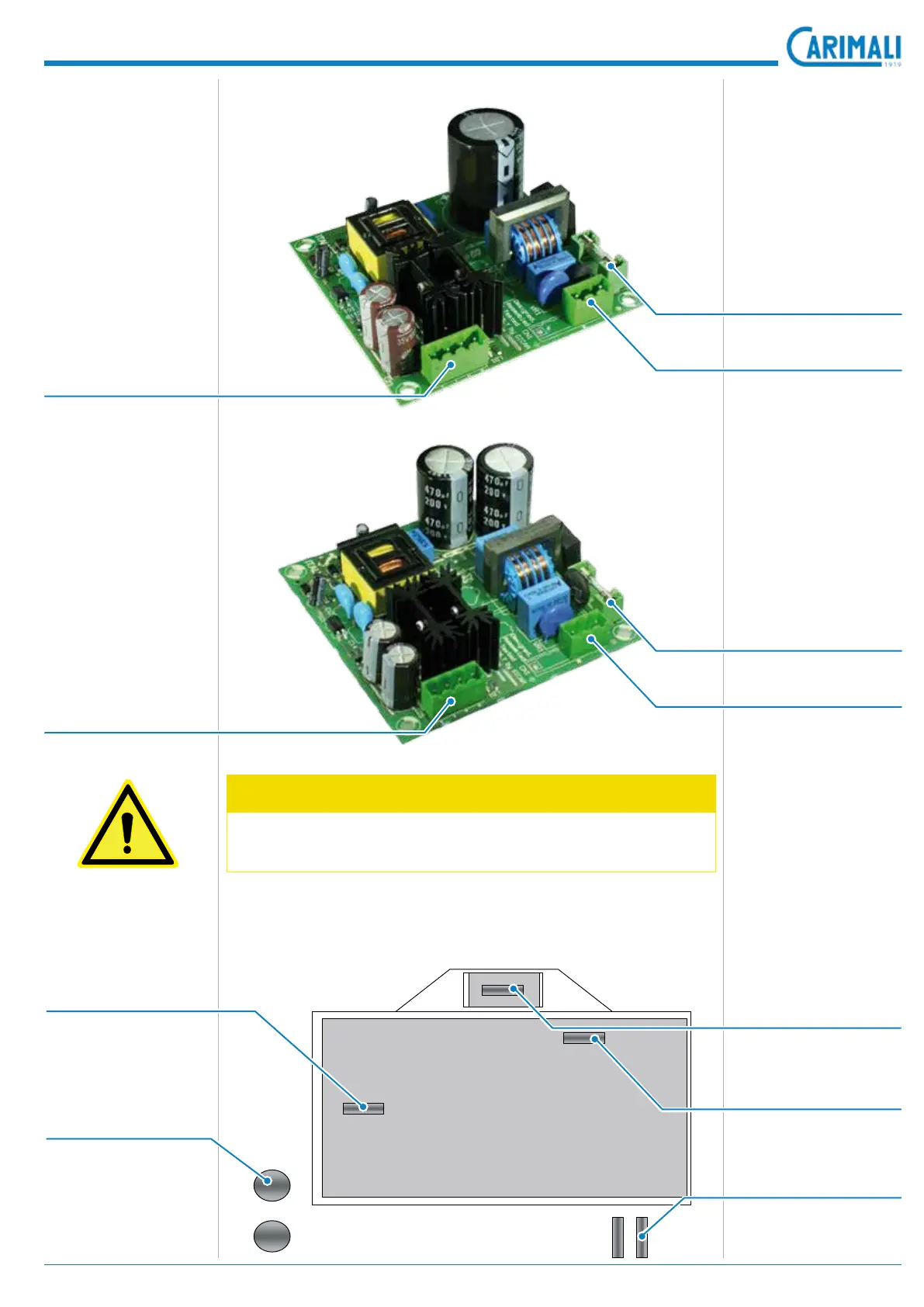

3.4.4 Fuse diagram
WARNING
Replace only with original fuses.
3.4.2 Switching power supply unit 200/240V (code 96.05336)
3.4.3 Switching power supply unit 100/125V (code 96.05336.00.41)
The switching power
supply unit is powered
by the mains (220/240V
- 50/60 Hz) and powers
the power board at 24
V dc.
The switching power
supply unit is pow-
ered by the mains
(100/125V - 50/60 Hz)
and powers the power
board at 24 V dc.
2 LINE FUSE 6.3X32:
SCHURTER SUT 12A 8020.0603
OMEGA 10A UTG 632310 (alt)
(Version 220/240V) (Cod.: 96.05338)
SCHURTER SUT 15A 8020.0604
(Version 100/125V)
(Cod.: 96.05339)
F1 - Main PCB low power
230Vac loads fuse link:
SCHURTER SP 2A 0001.1007
(Version 220/240V) (Cod.: 96.05371)
SCHURTER SP 4A 001.1010
(Version 100/125V)
(Cod.: 96.05381)
Power Switching
supply protection fuse link
(GICAR)
SCHURTER FST 1,6A
BEL FUSE 5ST 1,6A (alt)
Littelfuse 218 1,6A (alt)
(Version 220/240V) (Cod.: 96.05370)
SCHURTER FST 3,15A
(Version 100/125V) (Cod.: 96.05390)
F2 - Main PCB 24Vdc
loads fuse link:
SCHURTER SPT 3,15A 0001.2509
(Cod.: 96.05372)
F3, F4 - Powder
dispenser motor fuse link:
SCHURTER FSF 0,2A 0034.1509
(Cod.: 96.05373)
Input connector
IN 200/240 Vac
Input connector
IN 95/125 Vac
Protective fuse
Protective fuse
Output
connector 24 V dc
Output
connector 24 V dc
