Carimali BlueDot - Valve LAYOUT; Version Espresso + Instant Products (E)

3.29
NOTE
The valve layouts vary according to the versions of the machine.
3.6.1 Version Espresso + Instant products (E)
NOTE
The presence of the valves:
● EV7 Steam
● EV8 Milker rinsing water
● EV9 Air milker
● EV10 Milker rinsing air
● EV11 pressurised steam discharge/exchanger
It changes according to the presence of the Milker.
NOTE
The presence of the valves:
● EV3 instant product 1
● EV4 instant product 2
It changes according to the presence of instant products.

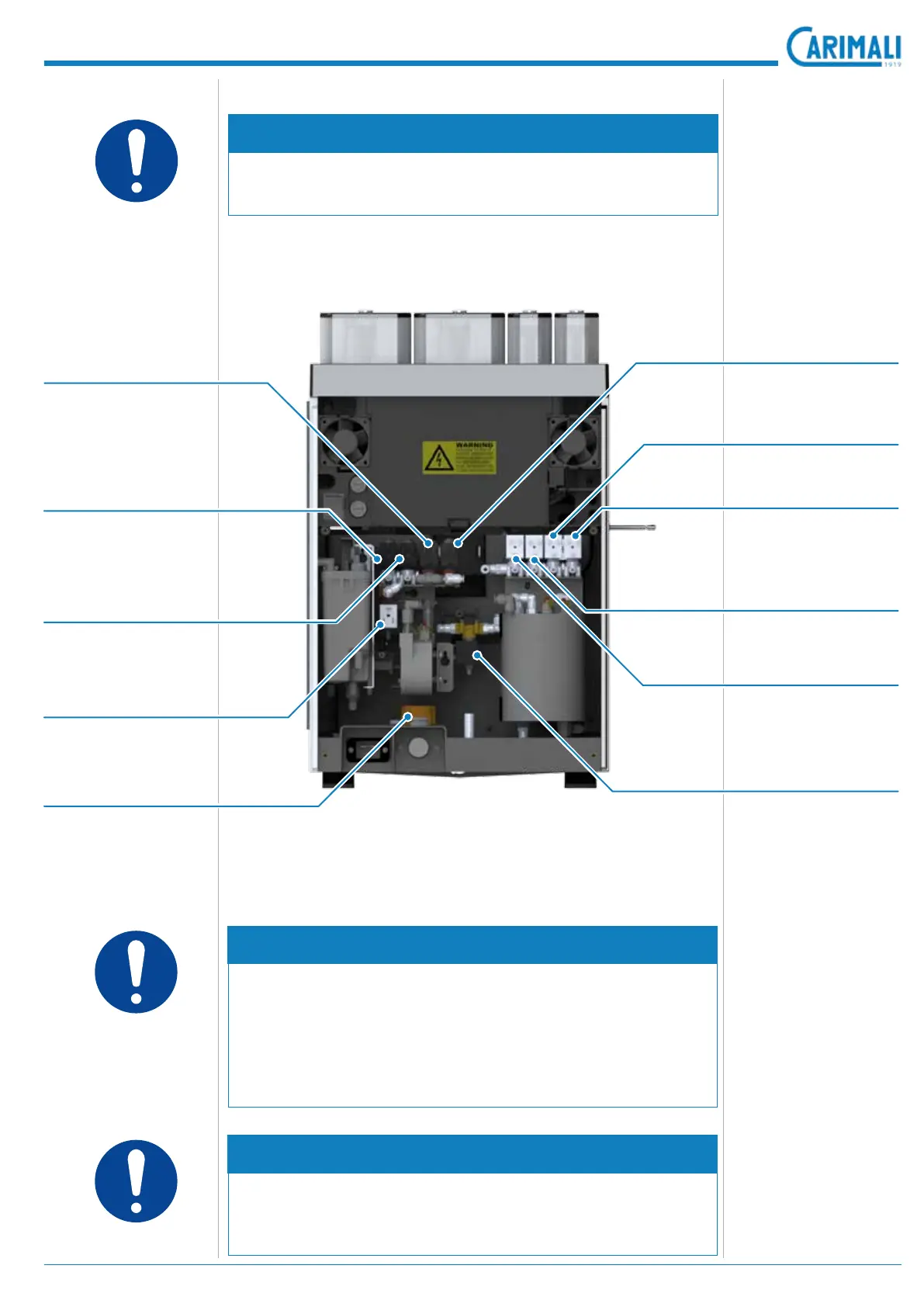

3.6 VALVE LAYOUT
EV9
milker air
EV8 (2-way)
milker rinsing water
EV1 (2-way)
water connection
EV11 (3-way)
pressurised steam
discharge / steam
exchanger
EV10
milker rinsing air
EV2 (3-way)
espresso unit
EV6 (2-way)
hot water spout
EV3 (2-way)
instant product 1
EV5 (2-way)
water by-pass
EV4 (2-way)
instant product 2
EV7 (2-way)
steam
