Supply Air Temperature sensor
Carrier Sensors 17
Part #33ZCSENSAT
The Supply Air Temperature (SAT) sensor is required for reheat applications.

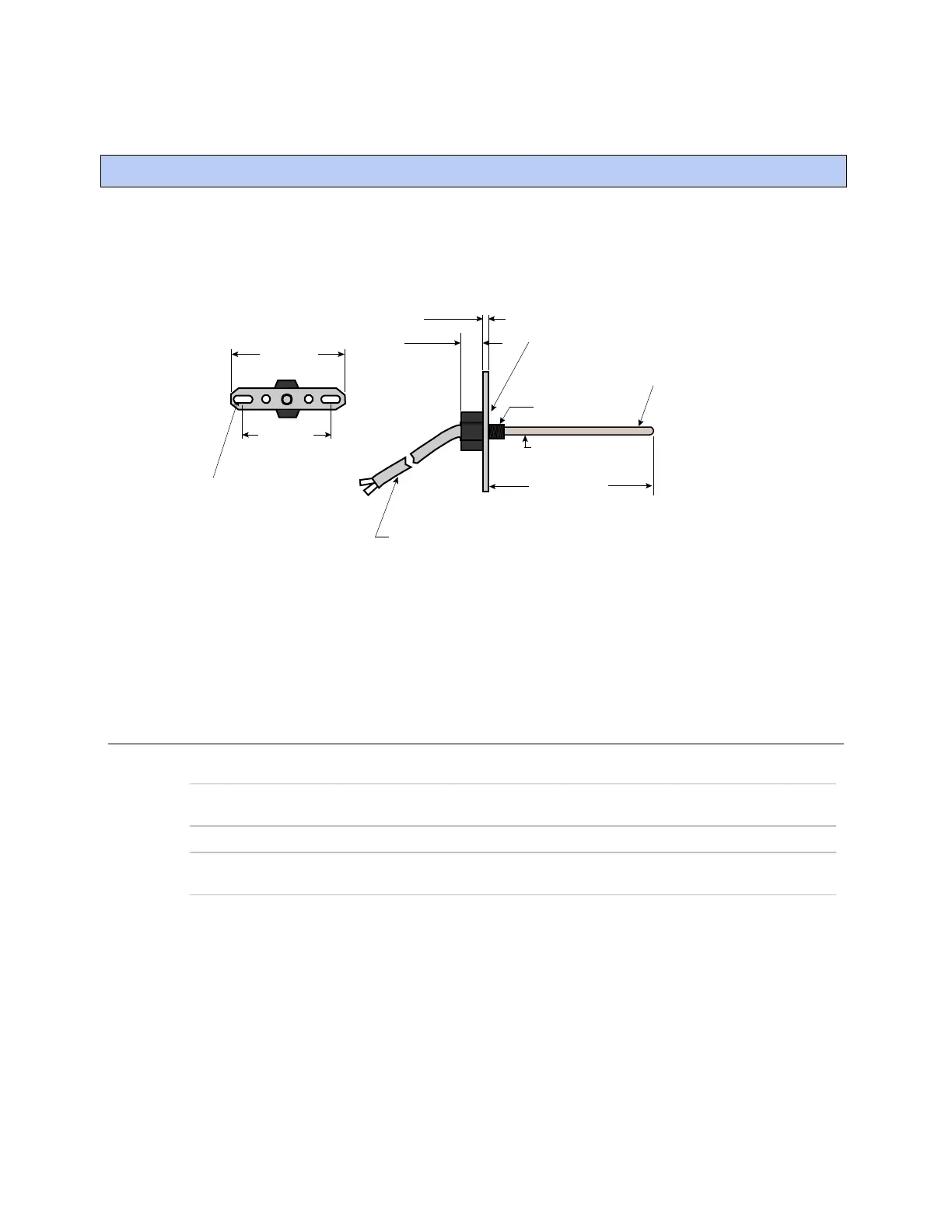

.08 in.
(.2 cm)
Foam gasket
.4 in. O.D.
(1.02 cm O.D.)
.39 in.
(.99 cm)
5.5 in. ± .5
(14 cm ± 1.27 cm)
114 in. (2.9 m)
plenum-rated cable
.25 in. ± .01 dia.
(.6 cm ± .003 dia.)
.175 in. dia. x .6 in.
(.45 cm dia. x 1.52 cm)
3.9 in.
(9.9 cm)
3 in.
(7.6 cm)
Probe
NOTE If state or local code requires the use of conduit, use a Primary Air Temperature (page 26) (Part
#33ZCSENPAT) sensor instead of an SAT sensor.
SAT sensor specifications
Operating range -40° to 245°F (-40° to 118°C) with a nominal resistance of 10,000 ohms
at 77°F (25°C). See table below.
Sensor tolerance Accuracy of ±0.36°F (0.2°C) from 0° to 70°C
Physical Has a thermistor encased with a 6-inch (15.2-cm) stainless steel probe.
Includes a 114-inch plenum-rated cable and 2 mounting screws.
