Caution: care must be taken to avoid the metal scrap from flying out, leading to personal injury. Wear the
goggles or the safe glasses or safe devices suitable for operations!
Change the bucket
Caution: while hitting out or into the connecting pin, care must be taken to prevent against any personal injury due
to out-flied metal scrap. Wear the goggles or the safe glasses or safe devices suitable foroperations!
1.
Park the machine on flat ground and lower the flat surface of bucket onto ground to make sure the bucket does not
move after the removal of pin.
2.

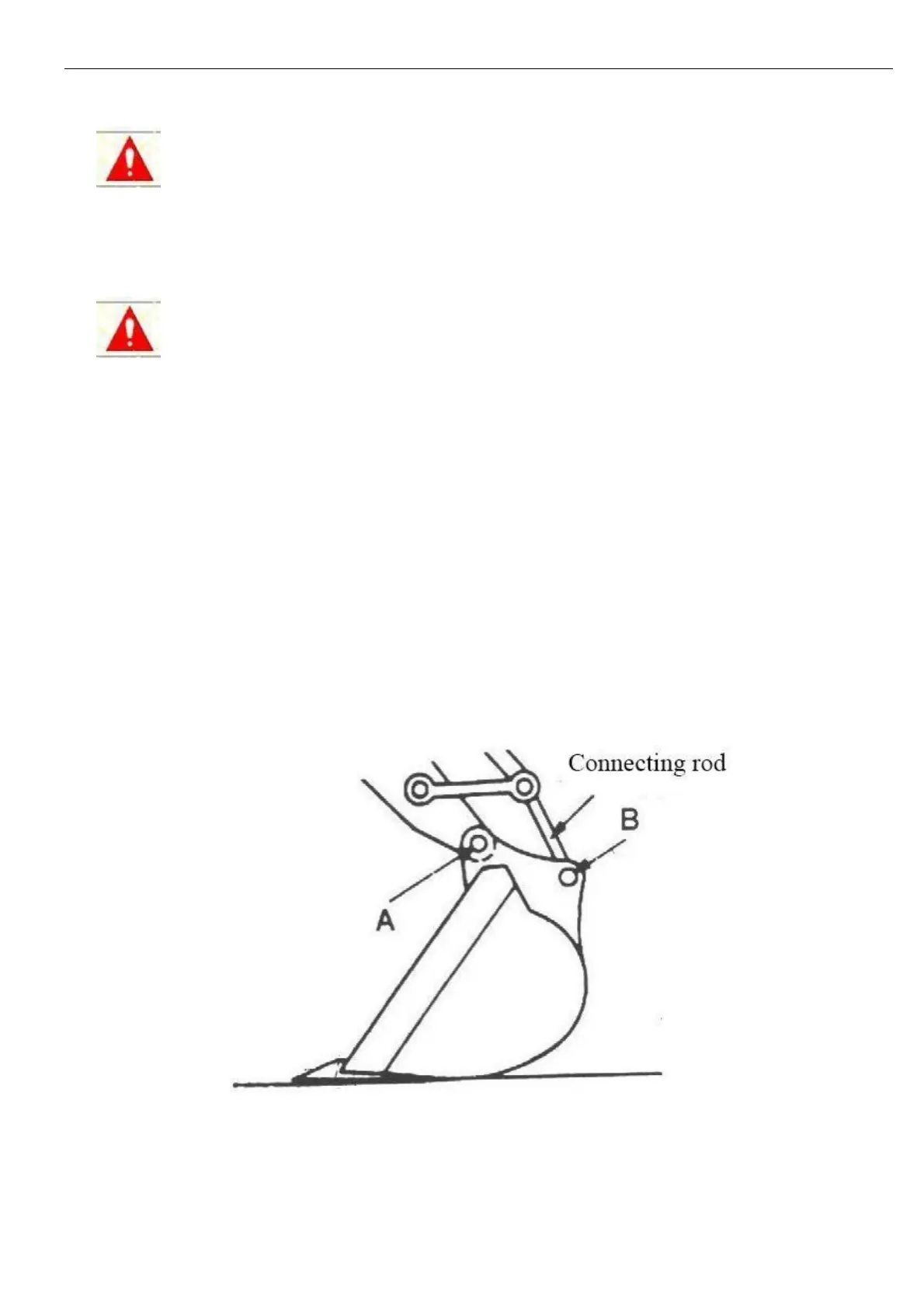

Slide the O-ring out, as shown in the figure.
3.
Remove the bucket pins A and B to separate the bucket and the arm. Clean the pin and its pin hole and then
properly grease them.
4.
Adjust the arm and the new bucket correctly, and make sure the bucket does notrollaway..
5.
Install the bucket pins A and B.
6.
Put the locker and ring onto pins A and B.
7.
Adjust the connection clearance of bucket at pin A. Refer to the way to adjust the bucket connection clearance.
8.
Grease the pins A and B.
9. Start up engine and run it at low speed. Slowly rotate the bucket to two directions to check if there is any
interference to movement of bucket. Do not use any machine with interference, which should be solved
immediately. .
