34 4327 • X5 04/2015
Generator Battery
Port Engine Battery (2)
Starboard Engine Battery (2)
ENGINE ROOM
MASTER DISCONNECT SWITCHES
Accessory Battery
Bow Thruster (2)
Generator
Port Engine
Stern Thruster
Bow Thruster
Starboard Engine

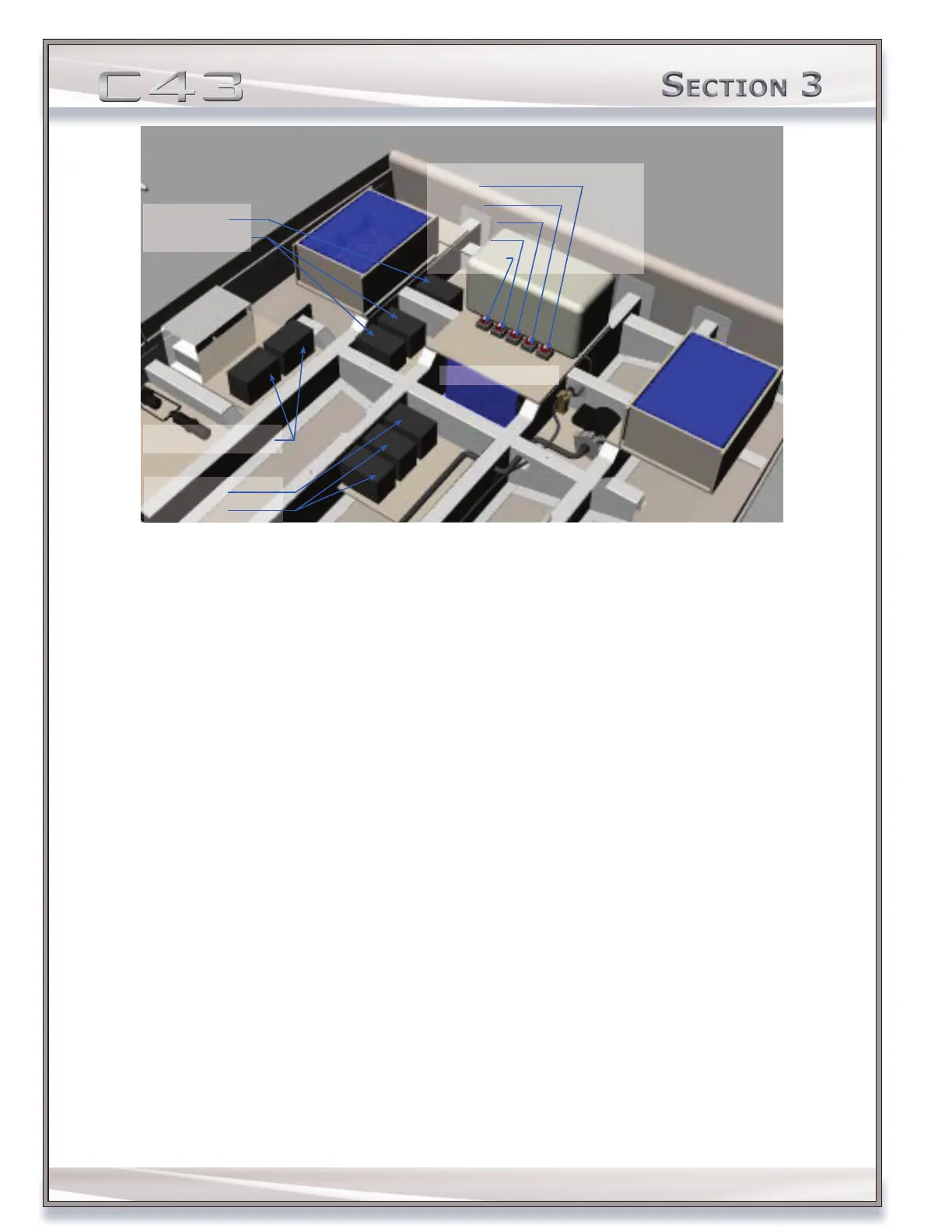

Battery and Master Disconnect Switch Layout
NOTE: Options and layout changes per yacht manufactured.
ENGINE BATTERIES AND MASTER DISCONNECT SWITCHES
Each propulsion engine has two designated engine batteries. Each engine battery set is located outboard of the designated
engine.
A master disconnect switch controls the electricity from each battery to the battery’s designated engine. Turn ON the
master disconnect switches to provide electricity to the engines.
ACCESSORY BATTERY AND MASTER DISCONNECT SWITCH
The accessory equipment is controlled by the DC control center. The DC control center is powered by a single 12-volt
accessory battery located in the engine room.
Electricity from the accessory battery is controlled by a master disconnect switch. The switch is located on the DC control
center. Circuit breakers on the DC control center control the ow of electricity to the other DC circuit breaker panels.
GENERATOR BATTERIES AND MASTER DISCONNECT SWITCH
The generator has a single, dedicated battery. Electricity from the battery to the generator starter is controlled by a master
disconnect switch. The switch is located in the engine room, AFT directly behind the PORT engine. Turn ON the master
disconnect switch to provide electricity to the generator starter.
DC CONTROL CENTER
The DC control center manages the power supply to the DC components listed on the panel. The C43 contains a single
DC control center. The DC center is located in a cabinet below helm seat corner of the salon. The center contains circuit
breakers, additional controls and meters as described in the vendor literature.
