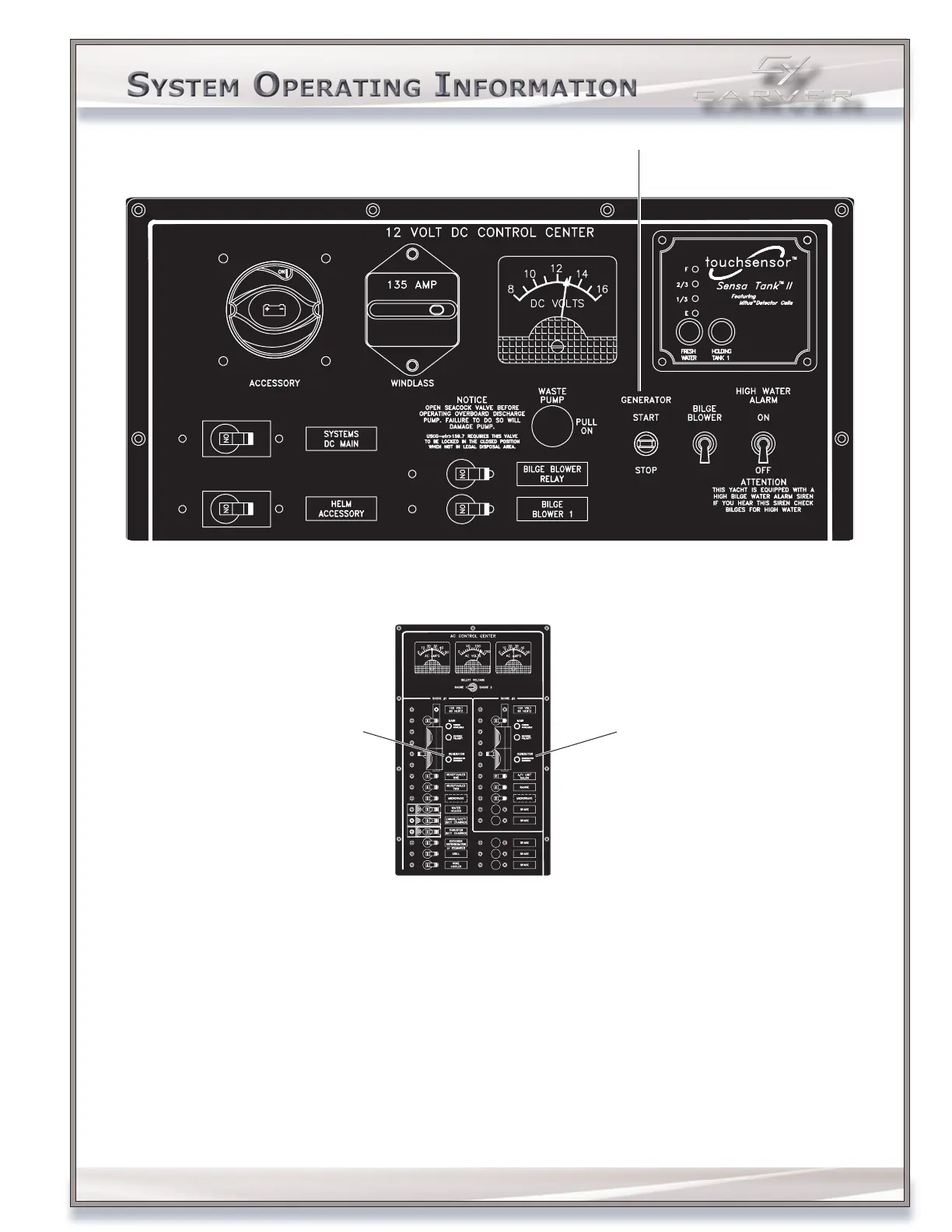

Generator Start/Stop Switch
5. Once the generator is running smoothly, switch the GENERATOR circuit breaker group ON, located on the AC control
center. The breaker group connects the AC electrical system to the generator output. Once the Generator Running
indicator light illuminates, power is available to the other circuit breakers on the AC control center.
TOR Circuit Breaker
GENERATOR Circuit Breake
6. To turn the generator OFF, push the START/STOP switch to the STOP position, located on the DC control center.
7. Turn the generator battery master disconnect switch to the OFF position if the generator is not going to be used for
a few days. The generator battery master disconnect switch is located forward the generator.
8. To change the AC power source from the generator to shore power, switch the generator circuit breaker group OFF,
located on the AC control center.
9. Once the GENERATOR circuit breaker group has been turned OFF, connect to a shore power source as described in
SHORE POWER CONNECTION on page 44.
AC CONTROL CENTER
The AC control center manages the power supply to all AC equipment installed onboard. The AC control center is located
under the companion seat on the port side.
Power to the panel is supplied by either a shore power connection or the generator.
