SyStem Operating infOrmatiOnSyStem Operating infOrmatiOn
4327 • X5 04/2015 43
OPTIONAL (NA/PR ONLY, SOUTHERN AIR CONDITIONING PACKAGE) SINGLE 240 VOLT, 50 AMP, 60 HERTZ
LINE 1: The LINE 1 (50 amp) circuit on the AC electrical panel provides power to all the AC equipment except the air
conditioning system. LINE 1 is congured as 120 volts, 60 Hz. See the breakers on the AC control center for a list of
installed items controlled by the LINE 1 circuit.
LINE 2: The LINE 2 (50 amp) circuit, located on the AC electrical panel, provides power to all the AC components listed on
the LINE 2 column of circuit breakers on the AC control center. LINE 2 is congured as 120 volts, 60 Hz. See the breakers
on the AC control center for list of installed items controlled by the LINE 2 circuit.

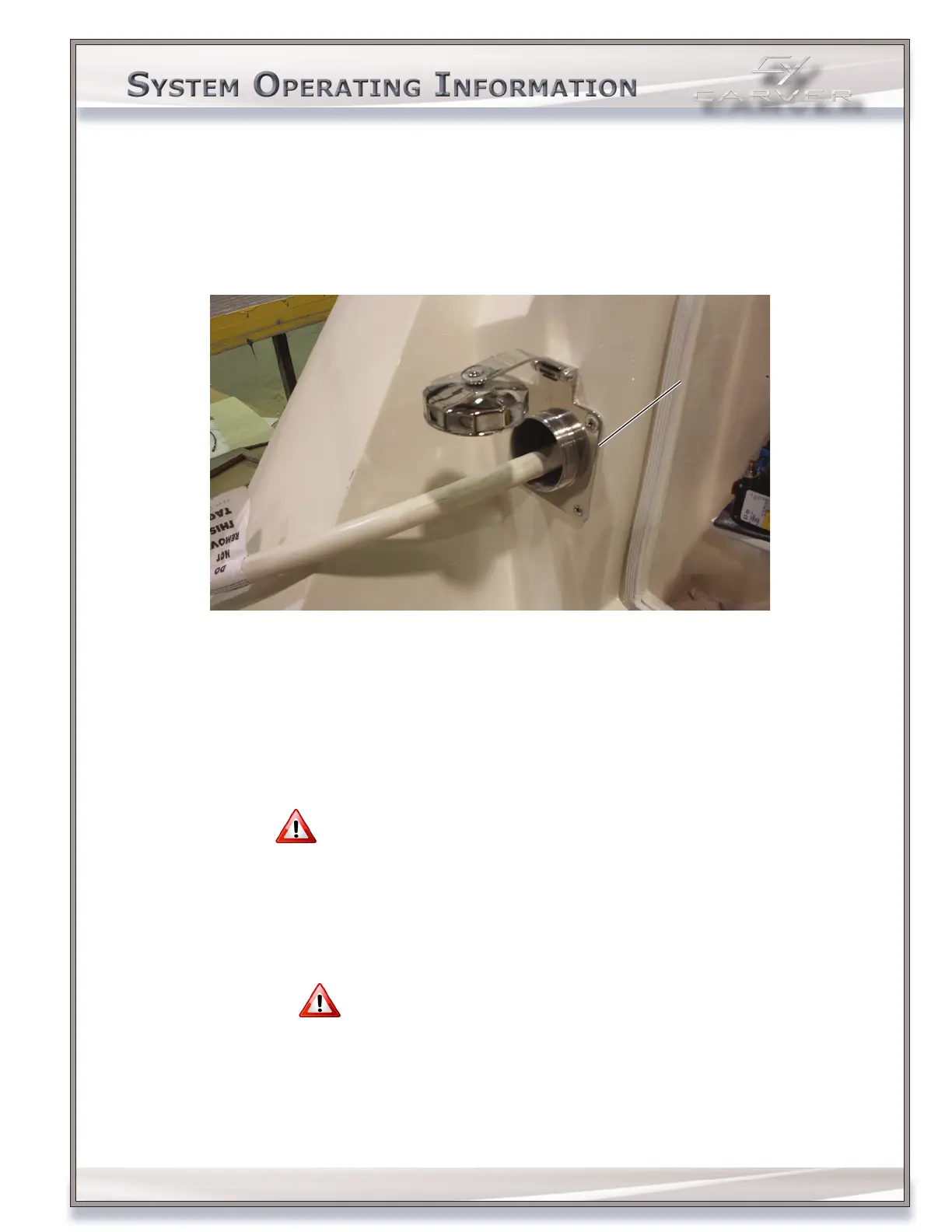

Single 240 Volt,
50 Amp, 60 Hertz
EUROPEAN ELECTRICAL SYSTEM – DUAL 230 VOLT, 30 AMP, 50 HERTZ
SHORE 1: The SHORE 1 (30 amp) circuit on the AC electrical panel provides power to all the AC equipment except the
air conditioning system. SHORE 1 is congured as 230 volts, 50 Hz. See the breakers on the AC control center for list of
installed items controlled by the SHORE 1 circuit.
SHORE 2: The SHORE 2 (30 amp) circuit, located on the AC electrical panel, provides power to all the AC components
listed on the SHORE 2 column of circuit breakers on the AC control center. SHORE 2 is congured as 230 volts, 50 Hz. See
the breakers on the AC control center for a list of installed items controlled by the SHORE 2 circuit.
DANGER
NEVER TOUCH THE AC ELECTRICAL WIRES WHILE THE AC ELECTRICAL SYSTEM IS CONNECTED TO A POWER SOURCE.
EACH WIRE CARRIES ENOUGH CURRENT TO KILL OR CAUSE SERIOUS INJURY.
AC POWER SOURCES
SHORE POWER
WARNING
WHEN CONNECTED TO SHORE POWER, NEVER SWIM ANYWHERE NEAR THE YACHT. STRAY VOLTAGE MAY LEAK FROM
THE SHORE POWER CORD AND/OR YACHT SHORE POWER CONNECTOR. SERIOUS INJURY OR DEATH MAY OCCUR.
NEVER SUPPLY POWER TO THE WATER HEATER WHEN IT IS EMPTY. FIRE DAMAGE MAY RESULT IF THE HEATING
ELEMENT IS DAMAGED.
