DC Control
Center

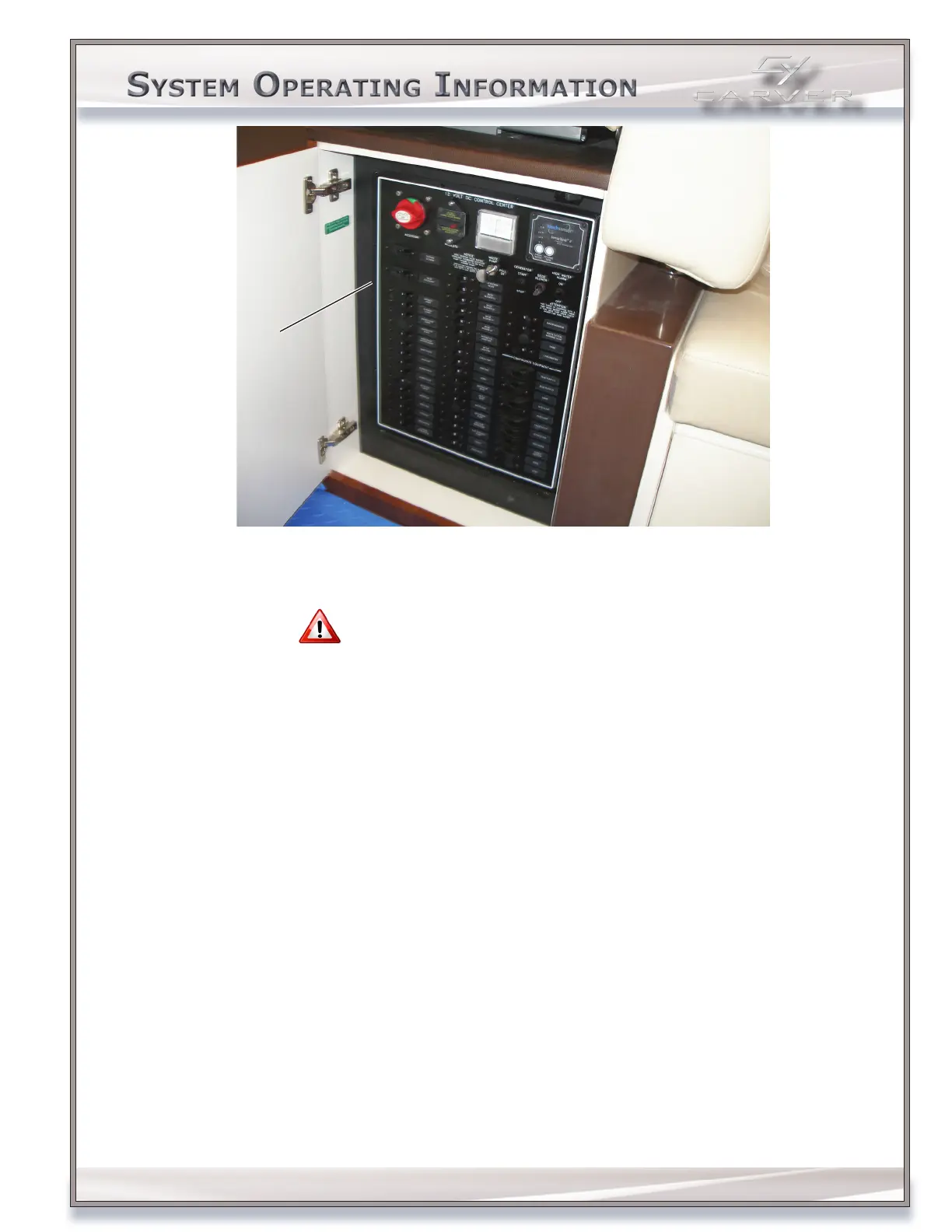

DC CONTROL CENTER CIRCUIT BREAKERS
WARNING
NEVER RESET A BREAKER OR REPLACE A FUSE THAT HAS AUTOMATICALLY TRIPPED WITHOUT FIRST CORRECTING
THE PROBLEM. FAILURE TO MAKE NECESSARY CORRECTIONS MAY CREATE A DANGEROUS SITUATION.
The circuit breakers on the DC control center enable the user to control the DC components by switching the breakers
ON or OFF. All the circuit breakers protect the electrical system by automatically disconnecting the circuit from the power
source in the event of a short or overload. The accessory batteries supply power to the circuit breaker panels.
Thermal circuit breakers are also installed in many circuits to provide added protection.
NOTE: If a circuit breaker location is labeled, but no circuit breaker is present, the component named on the label is
an option that is not installed.
